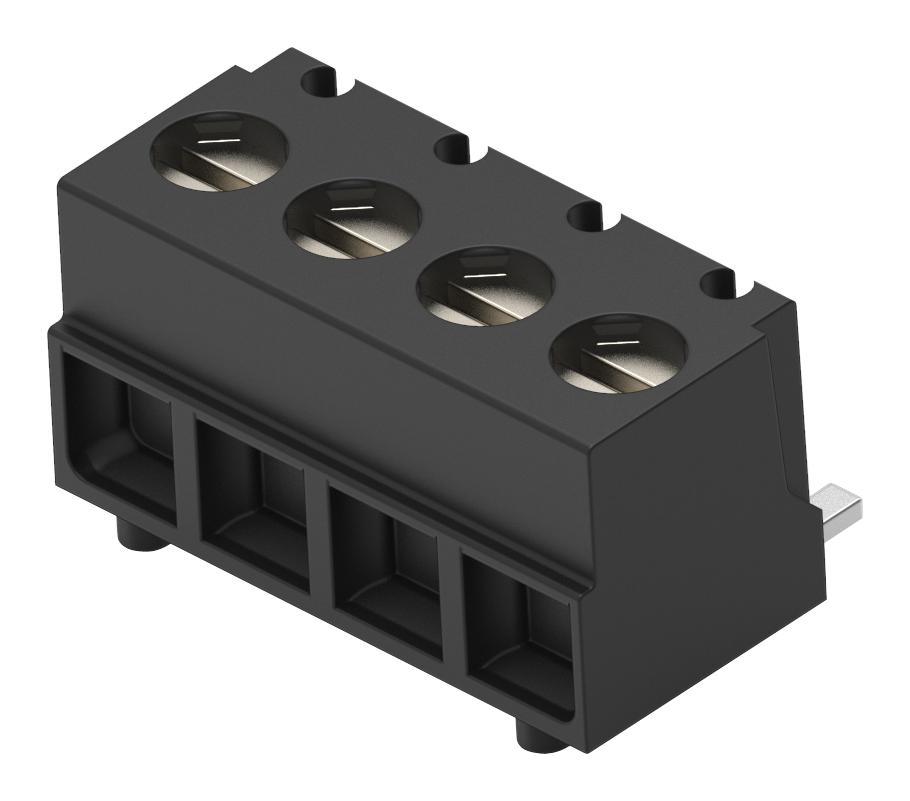

TE CONNECTIVITY 23839414 PCB Terminal Block
The PCB terminal block is a 4-position, wire-to-board header designed for reliable power and signal connections in industrial applications. Featuring a 3.81 mm centerline pitch and side wire entry angle, it supports wire sizes from 28 to 18 AWG and has a maximum current rating of 7A. Made from high-temperature polyamide with tin-plated copper alloy contacts, it ensures durability and excellent electrical performance. The compact design includes a surface-mount, board-mount configuration suitable for high-temperature reflow soldering, ideal for power and signal circuit applications in manufacturing and automation environments.
TE CONNECTIVITY 23839414 PCB Terminal Block Specifications:
- Number of Positions: 4
- Centerline (Pitch): 3.81 mm [.15 in]
- Number of Rows: 1
- Wire Entry Angle: Side
- Wire Size Range: 28 — 18 AWG
- Maximum Current Rating: 7A
- Voltage Rating: 300 VAC
- Housing Material: High Temperature Polyamide
- Contact Material: Copper Alloy, Tin Plated
- Mounting Type: Surface Mount, Board Mount
- Operating Temperature Range: -40 — 105 °C [-40 — 221 °F]
- Solder Process Capability: Reflow solder capable to 260°C
- Packaging: Tape & Reel, 300 pieces per reel
- Color: Black
- Connector System: Wire-to-Board, Header
- Threaded Flange: Without
- Interlock: Without
- Screw Size & Material: M2, Tin
- Housing Color: Black
- Certifications and Compliance: EU RoHS, China RoHS 2, REACH Candidate List
- Application: Power and Signal Circuit Connections in Industrial and Automation Equipment
Buy the TE 2383941-4 – Reliable PCB Terminal Block for Industrial Applications
Order the TE 2383941-4 PCB terminal block today for your power and signal circuit needs. Its 4-position, wire-to-board header with a 3.81mm pitch offers reliable connections, supporting wire sizes from 28 to 18 AWG and a maximum current of 7A. Made from durable high-temperature polyamide with tin-plated copper alloy contacts, it ensures excellent electrical performance in industrial environments. Its surface-mount design allows for high-temperature reflow soldering. Perfect for manufacturing, automation, and power applications, this compact terminal block is essential for secure and efficient circuit integration.
Get TE 2383941-4 today—built for precision and long-lasting durability in power and signal connections.
