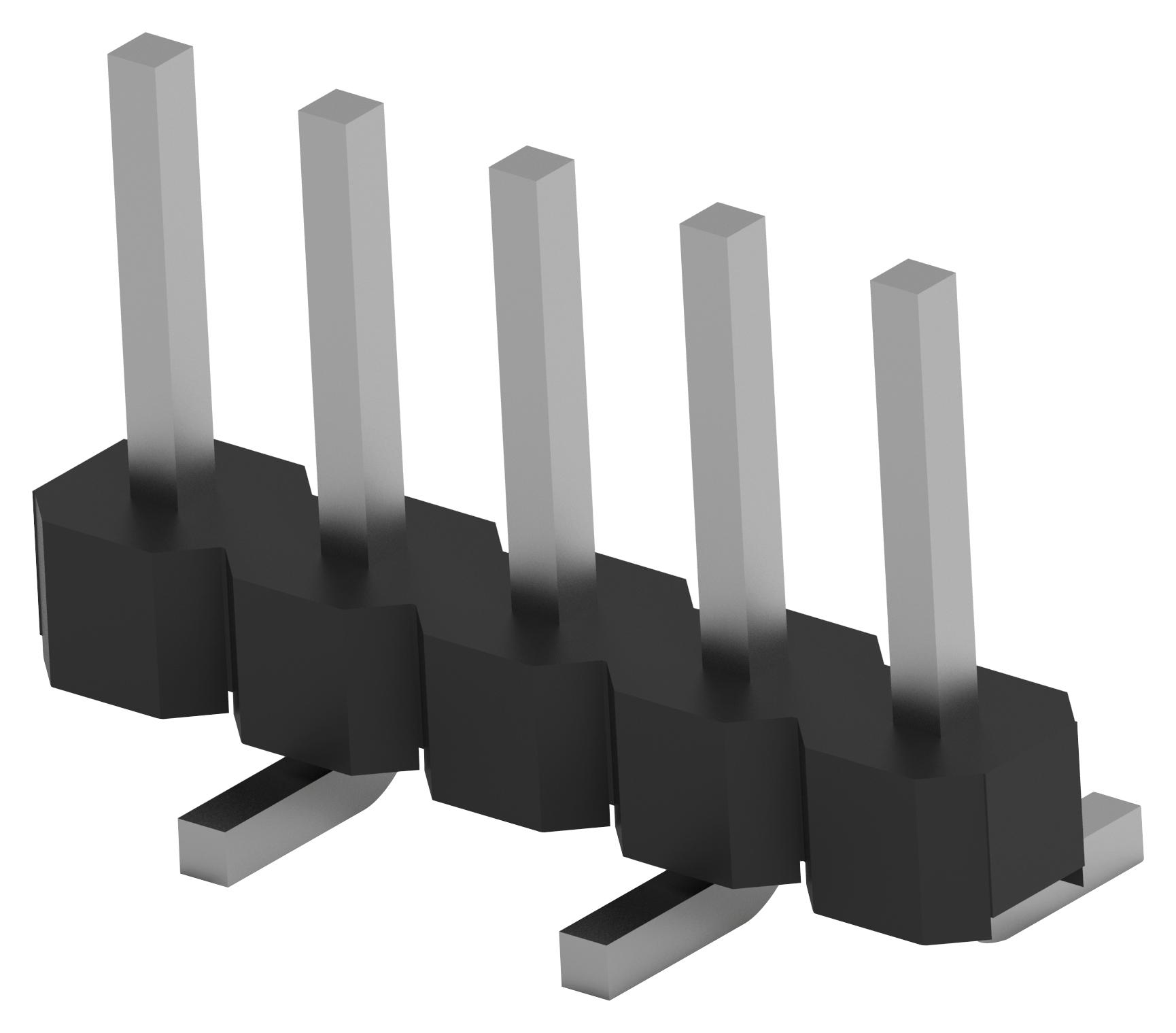

TE CONNECTIVITY 28421024 Breakaway Header
The AMPMODU 2mm Breakaway Header is a versatile connector designed for reliable board-to-board and wire-to-board connections. Featuring a centerline of 2mm, it offers a space-saving solution, providing up to 38% PCB space reduction compared to standard 2.54mm headers. Suitable for automated surface mounting, through-hole-reflow, and traditional through-hole assembly, it accommodates 2-25 positions per row, in single and double configurations. Made of high-temperature UL 94VO plastic with brass contacts, it supports applications such as PLCs, industrial controls, servo drives, and automation systems, combined with excellent electrical and mechanical durability.
TE CONNECTIVITY 28421024 Breakaway Header Specifications:
- Centerline: 2.00mm [0.079]
- Contact Dimension: 0.50mm [0.02"] square pins
- Connector Size: 2-25 positions per row, single or double row
- PCB Thickness: 1.6mm to 2.4mm [0.063" to 0.094"]
- Operating Temperature: -40°C to 125°C
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Environment: Class III
- Material: Brass contacts, high-temperature UL 94VO plastic housing
- Plating: 0.76um [30p"] Gold, 0.38um [15u"] Gold, Tin
- Reflow Solder Capability: Up to 260°C
- Compliance: RoHS & REACH
- Vibration Resistance: No electrical discontinuity greater than 1 microsecond
Buy the TE Connectivity Series AMPMODU 2mm Breakaway Header: 28421024
Purchase the TE Connectivity AMPMODU 2mm Breakaway Header now to ensure reliable, space-saving connections for PCB assembly in industrial automation, PLC, and servo drive applications. Designed for automated surface mount and through-hole reflow processes, this connector offers high electrical and mechanical durability, quick assembly, and compatibility with major receptacles. Its compact design helps extend PCB functionality while providing excellent electrical performance, helping engineers and manufacturers achieve optimal reliability and efficiency in their electronic projects. Order online today for fast delivery and trusted quality.
Order your TE Connectivity Series AMPMODU 2mm Breakaway Header today and enhance your industrial control systems with reliable, space-efficient connectors.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 28421024?
You can click on the BUY or RFQ button to purchase 28421024 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 28421024?
You can download the 28421024 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 28421024?
TE CONNECTIVITY
