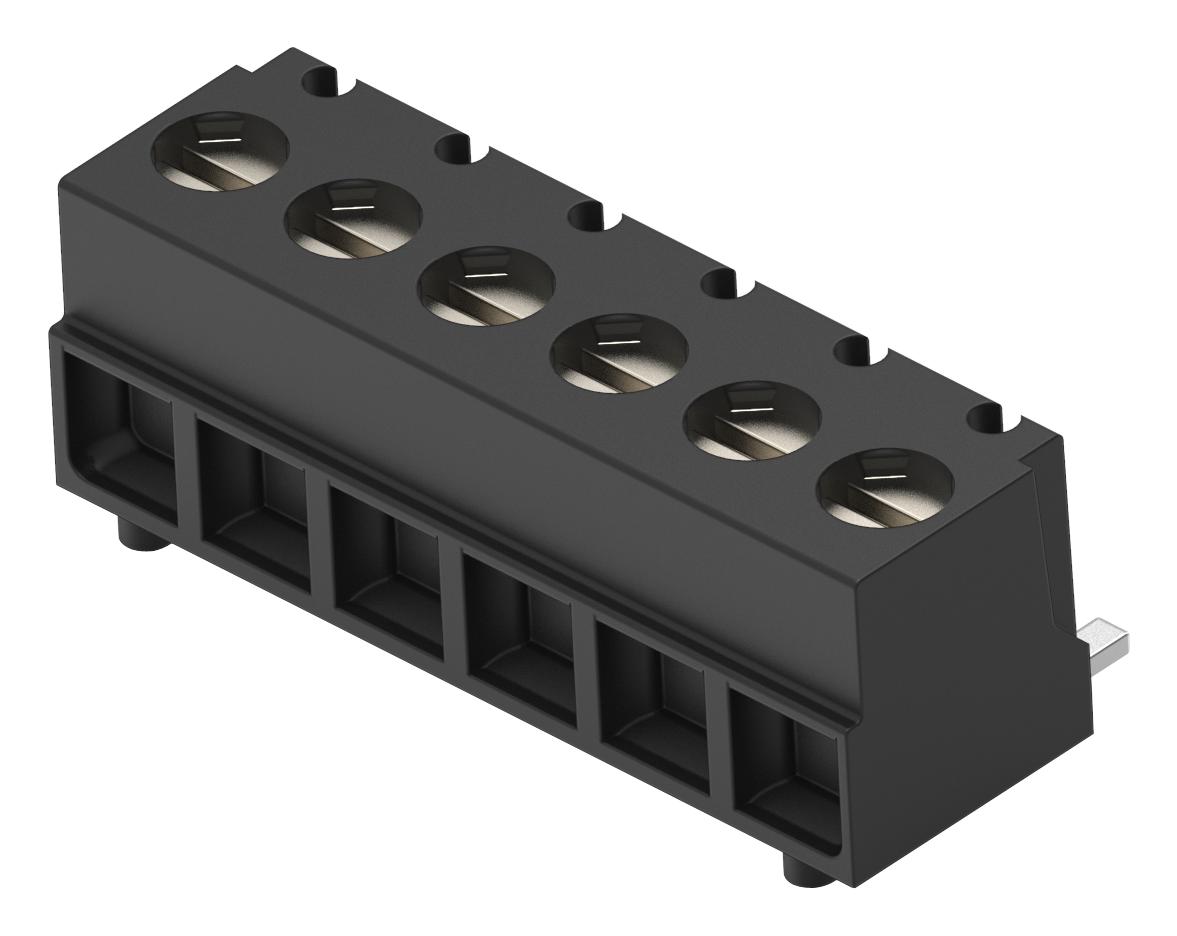

TE CONNECTIVITY 23839416 PCB Terminal Header
This PCB terminal block is a wire-to-board header designed for reliable electrical connections in electronic assemblies. It features a 3.81 mm centerline pitch, a single row configuration with six positions, and side wire entry for easy wire installation. Rated for up to 7A and 300 VAC, it is made of high temperature polyamide housing with copper alloy contacts plated in tin for corrosion resistance. The screwless design enables quick assembly and secure connections in surface-mount applications. Suitable for power and signal circuits, it operates between -40°C and +105°C, offering durability for various industrial and electronic uses.
TE CONNECTIVITY 23839416 PCB Terminal Header Specifications:
- Centerline (Pitch): 3.81 mm [.15 in]
- Number of Positions: 6
- Number of Rows: 1
- Wire Entry Angle: Side
- Wire Size: 0.08 — 0.82 mm
- Current Rating (Max): 7A
- Voltage Rating: 300 VAC
- Housing Material: High Temperature Polyamide
- Contact Material: Copper Alloy
- Contact Plating Material: Tin
- Mounting Style: Surface Mount
- Operating Temperature Range: -40°C to +105°C
- Solder Process Capability: Reflow solder capable to 260°C
- Packaging: Tape & Reel, Quantity: 300
Buy the Buy TE PCB Terminal Blocks Part Number 23839416 Online
Purchase the TE PCB terminal header 23839416 online for reliable wire-to-board connections. With a 3.81mm pitch, side wire entry, and rated for 7A and 300VAC, it ensures secure contact and easy installation in surface-mount applications. Made from high temperature polyamide housing with tin-plated copper alloy contacts, this durable component operates safely between -40°C and +105°C. Perfect for power and signal circuits, it offers quick assembly, long-lasting performance, and is ideal for industrial and electronic device integration.
Get TE 23839416 today—designed for secure and durable power and signal connections in electronic assemblies.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23839416?
You can click on the BUY or RFQ button to purchase 23839416 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23839416?
You can download the 23839416 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23839416?
TE CONNECTIVITY
