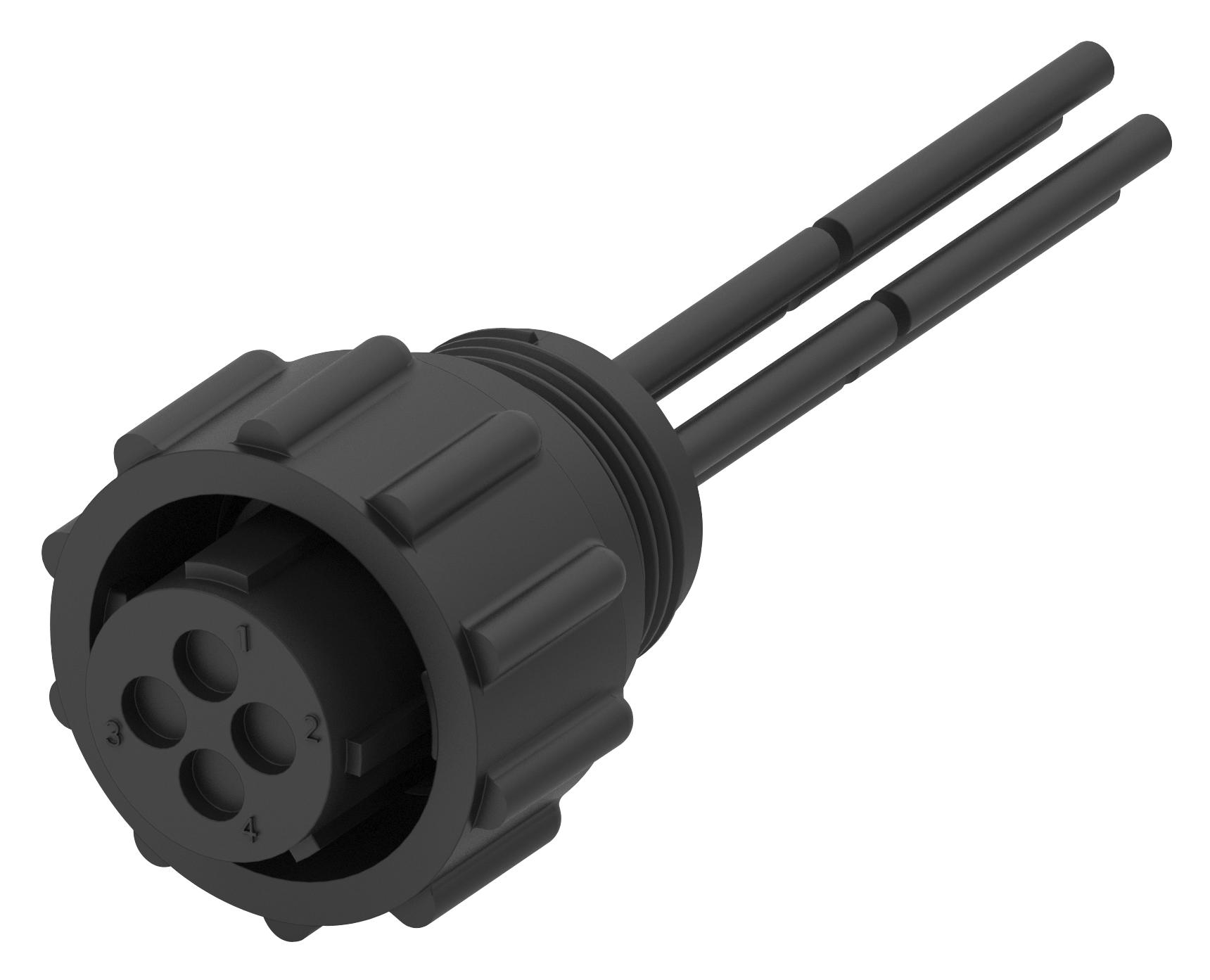

TE CONNECTIVITY 23869071 Circular Plastic Connector Cable
TE Connectivity's Circular Plastic Connector (CPC) cable assemblies provide a robust and economical solution for power input and output applications across various industries. Designed for rapid prototyping, these assemblies reduce installation time and meet demanding requirements in harsh environments. Featuring thermoplastic housings, built-in pin and socket protection, and removable contacts, CPC cable assemblies are ideal for industrial machinery, control cabinets, rail and transit systems, HVAC equipment, and communication equipment. They are available in standard and high-density configurations to accommodate diverse signal and power needs.
TE CONNECTIVITY 23869071 Circular Plastic Connector Cable Specifications:
- Series: 1
- Density: Standard
- Max Signals: 13A, 600V
- Operating Temperature: -55 to 105°C
- Mating Cycles: 500 (gold/silver), 250 (tin)
- Housing Material: Heat resistant thermoplastic
- Contact Material: Copper alloy with stainless steel retention spring
- Plating: Gold over palladium-nickel over nickel (mating), tin over nickel (crimp)
- Product Specification: 108-10024, 108-11024, 108-10024-3, 108-10024-4
- Application Specification: 114-10038
- Size: 11 to 4
- Type: STD
- Plug: 2386907
- Description: CPC Plug Connector Cable
- Receptacle: 2386899
- Receptacle Description: CPC Free Hanging Receptacle Connector Cable
