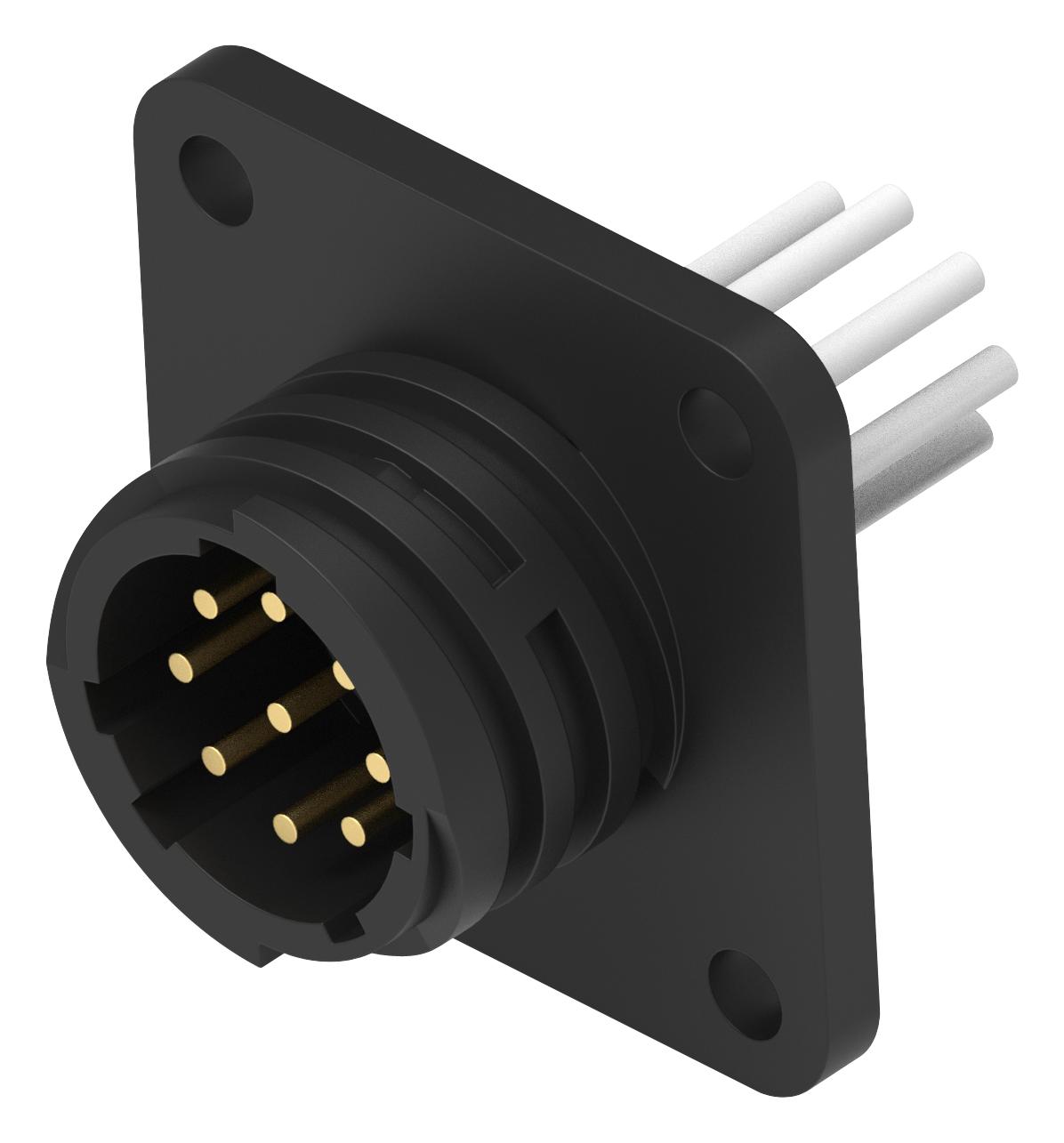

TE CONNECTIVITY 23871341 Circular Plastic Connector Cable
TE Connectivity's Circular Plastic Connector (CPC) cable assemblies provide a rugged and cost-effective solution for power input and output applications. Designed for rapid prototyping and meeting harsh environment requirements, these assemblies feature thermoplastic material, built-in pin and socket protection, and removable contacts. They are widely used in industrial machinery, control cabinets, rail and transit systems, HVAC equipment, and communication equipment. Available in standard and high-density configurations, these connectors offer versatility and reliability for a wide range of industrial applications.
TE CONNECTIVITY 23871341 Circular Plastic Connector Cable Specifications:
- Series: Series 2
- Size: 11 to 9
- Sex: STD
- Operating_temperature: -55 to 105°C
- Mating_cycles: 500 max (gold or silver), 250 cycles (tin)
- Signals_up_to: 13A, 600V (Series 1)
- Signal_only: 250V (Series 2)
- Housing_material: Heat resistant thermoplastic
- Contact_material: Copper alloy with stainless steel retention spring
- Plating: Gold over palladium-nickel over nickel (mating area), tin over nickel (wire crimp area)
- UL_recognized: Yes
- CSA_certified: Yes
- Product_specification: 108-10024, 108-11024, 108-10024-3, 108-10024-4
- Application_specification: 114-10038
