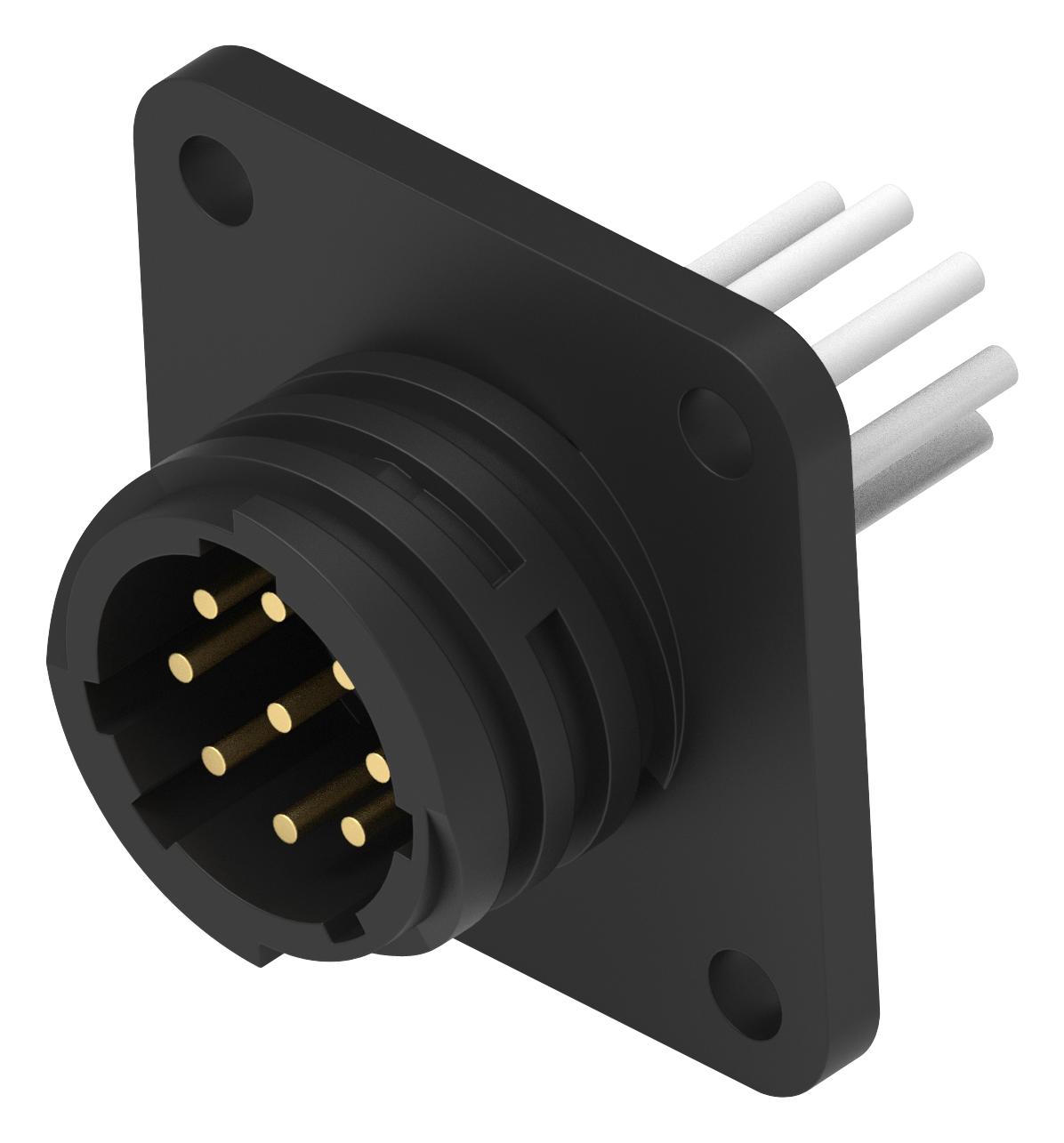

TE CONNECTIVITY 23871342 Circular Plastic Connector Cable
TE Connectivity's Circular Plastic Connector (CPC) cable assemblies provide a rugged and cost-effective solution for power input and output applications. Designed for rapid prototyping and harsh environments, these assemblies reduce installation time and meet space-saving requirements. They feature thermoplastic materials, built-in pin and socket protection, and removable contacts, making them suitable for industrial machinery, control cabinets, rail and transit systems, HVAC equipment, and communication equipment. The CPC standard cable assemblies offer a tried-and-true design with a proven track record of nearly 50 years.
TE CONNECTIVITY 23871342 Circular Plastic Connector Cable Specifications:
- Series: Series 2
- Size: 11 to 9
- Sex: STD
- Operating_temperature: -55 to 105°C
- Mating_cycles: 500 max (gold or silver), 250 cycles (tin)
- Contact_material: Copper alloy with stainless steel retention spring
- Contact_plating: Gold over palladium-nickel over nickel plating (mating area), tin over nickel plating (wire crimp area)
- Housing_material: Heat resistant thermoplastic
- UL_recognized: Yes
- CSA_certified: Yes
- Product_specification: 108-10024, 108-11024, 108-10024-3, 108-10024-4
- Application_specification: 114-10038
- signals_up_to: 13A, 600V (Series 1)
- signal_only: 250V (Series 2)
Buy the 2387134-2 TE CONNECTIVITY Circular Plastic Connector Cable | myMectronic
Purchase the TE Connectivity 2387134-2 Circular Plastic Connector Cable securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23871342?
You can click on the BUY or RFQ button to purchase 23871342 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23871342?
You can download the 23871342 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23871342?
TE CONNECTIVITY
