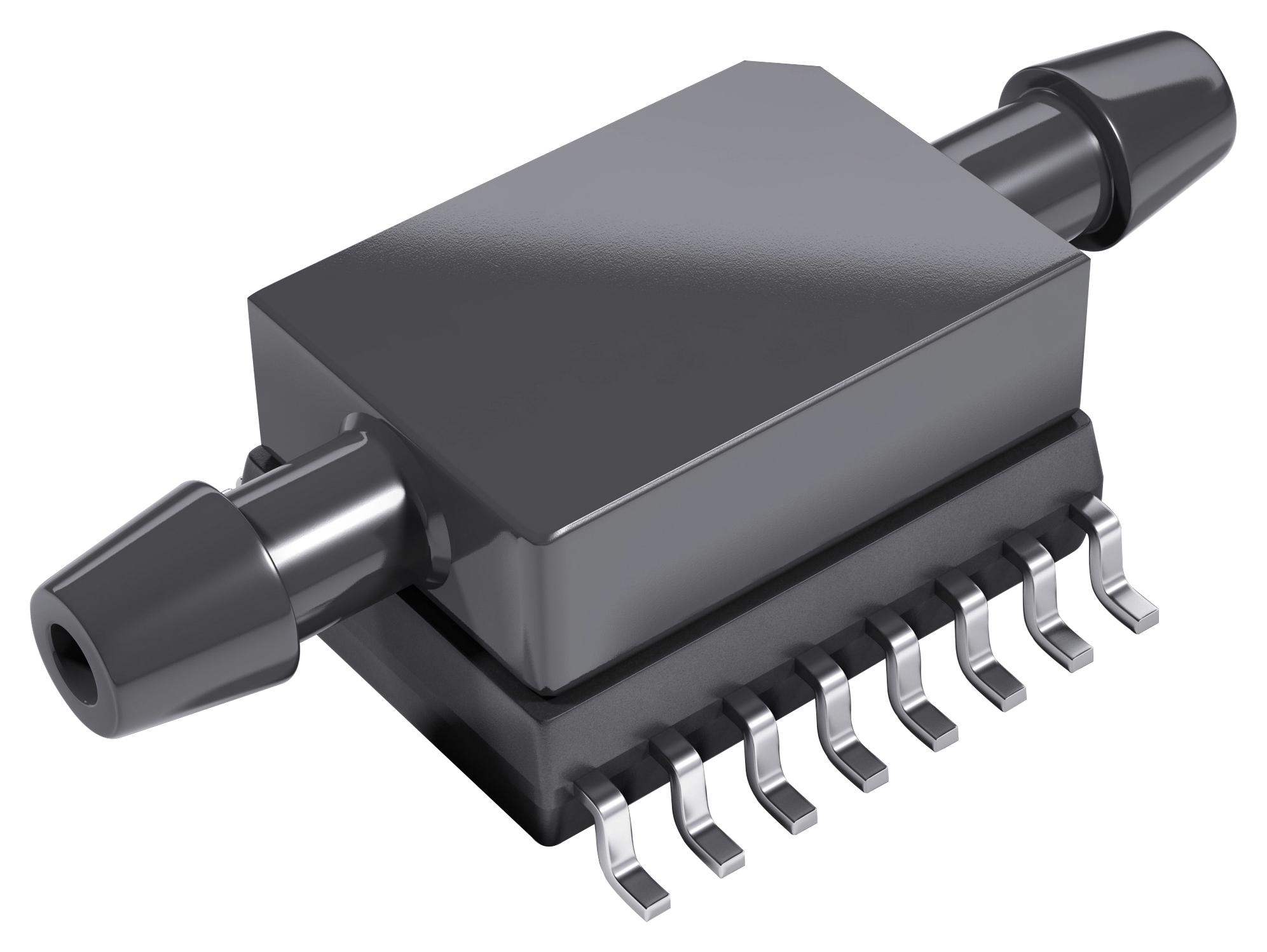

TE CONNECTIVITY SM9235BBES300000 Ultra-Low Pressure Sensor
The SM9235 series are ultra-low pressure digital sensors designed for precise measurement in applications like HVAC, medical devices, and gas flow instrumentation. Featuring digital CMOS technology and MEMS pressure sensing elements, they offer high accuracy, low error band (<1% FS), and temperature compensation across -20 to 85°C. These sensors operate at 3.3V or 5V, with digital interfaces supporting I2C communication, and provide calibrated pressure outputs up to 300 Pa in gage configuration. Their compact JEDEC SOIC-16 package ensures easy integration and long-term stability for critical measurement tasks.
TE CONNECTIVITY SM9235BBES300000 Ultra-Low Pressure Sensor Specifications:
- Supply Voltage: 3.3 V to 5 V
- Pressure Range: 0 to +300 Pa (gauge)
- Response Time: 18 ms
- Resolution: 16 Bits
- Total Error Band: <1% FS
- Temperature Range: -20 to 85°C
- Bandwidth: 20 Hz
- Operating Current: 3.3 mA at 3.3V, up to 5 mA at 5V
- Output Signal: Digital, 16-bit counts
- Interface: I2C
- Package: SOIC-16 Dual Vertical Porting
- Performance Stability: Long-term stability confirmed by system autozero
- Certifications: REACH, RoHS, PFOS/PFOA Compliant
Buy the TE Connectivity Series SM9000 Ultra-Low Pressure Digital Sensor: SM9235BBES300000
Order the TE Connectivity SM9235BBES300000 ultra-low pressure digital sensor online today and ensure precise pressure measurement for HVAC, medical, and industrial systems. Featuring digital I2C interface, calibrated up to 300 Pa, and temperature compensation, this sensor guarantees high accuracy and stability. Its JEDEC SOIC-16 package allows easy integration into your designs. Take advantage of our quick shipping and expert support to enhance your projects with reliable, state-of-the-art pressure sensing technology available for immediate purchase online.
Buy TE Connectivity SM9235BBES300000 now and experience unmatched reliability and high-precision pressure measurement for your applications.
