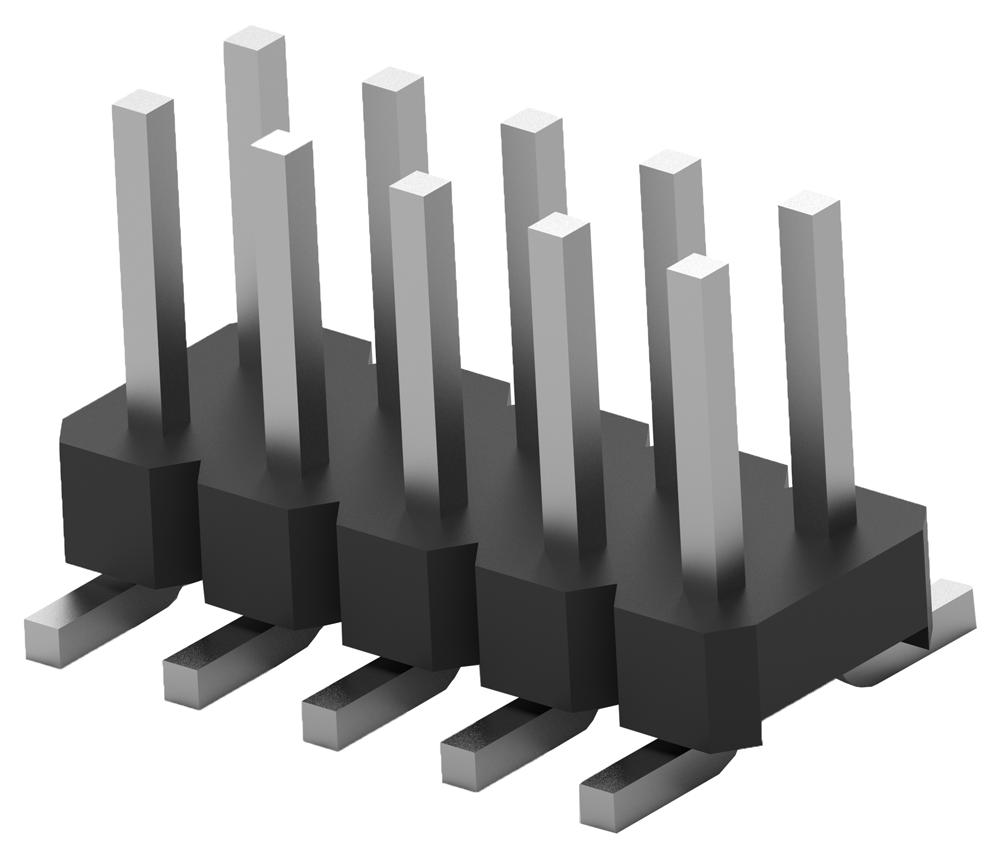

TE CONNECTIVITY 28421426 Industrial Breakaway Header
The AMPMODU 2mm Breakaway Header is a space-saving, reliable connector designed for PCB assembly, suitable for industrial automation, servo drives, and control systems. Featuring a 2.00mm centerline and 0.50mm square pins, the header accommodates 2-25 positions per row in single or double configurations. Made with brass contacts and high-temperature UL 94VO plastic housing, it supports automated surface mounting and through-hole-reflow processes. Capable of operating in temperatures from -40°C to 125°C, it offers 2A current rating and dielectric withstand voltage of 650VAC, perfect for demanding industrial environments.
TE CONNECTIVITY 28421426 Industrial Breakaway Header Specifications:
- Centerline: 2.00mm
- Pin Size: 0.50mm square
- Number of Positions: 2 to 25 per row, single or double row options
- PCB Thickness Compatibility: 1.6mm to 2.4mm
- Operating Temperature: -40°C to 125°C
- Current Rating: 2A
- Dielectric Withstanding Voltage: 650VAC
- Operating Environment: Class III
- Housing Material: High Temperature Plastic, UL 94VO, Black
- Contact Material: Brass
- Plating: 0.76um Gold, 0.38um Gold, Tin
- Reflow Soldering Capability: Up to 260°C
- Vibration Resistance: No electrical discontinuity greater than 1 microsecond
- RoHS & REACH Compliant
Buy the TE Series AMPMODU 2mm Breakaway Header: 28421426
Experience the reliability and space-saving benefits of the TE Connectivity AMPMODU 2mm Breakaway Header. Designed for PCB applications in industrial automation, control systems, and test equipment, this header features a 2.00mm centerline and robust brass contacts with gold and tin plating. Suitable for surface mounting and reflow processes, it supports temperatures from -40°C to 125°C and offers a 2A current rating. Versatile, durable, and compliant with RoHS and REACH standards, this connector ensures efficient assembly and long-lasting performance for your industrial needs.
Get TE Connectivity AMPMODU 2mm Breakaway Header today—built for precision, space-saving, and reliable PCB connections in industrial automation and controls.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 28421426?
You can click on the BUY or RFQ button to purchase 28421426 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 28421426?
You can download the 28421426 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 28421426?
TE CONNECTIVITY
