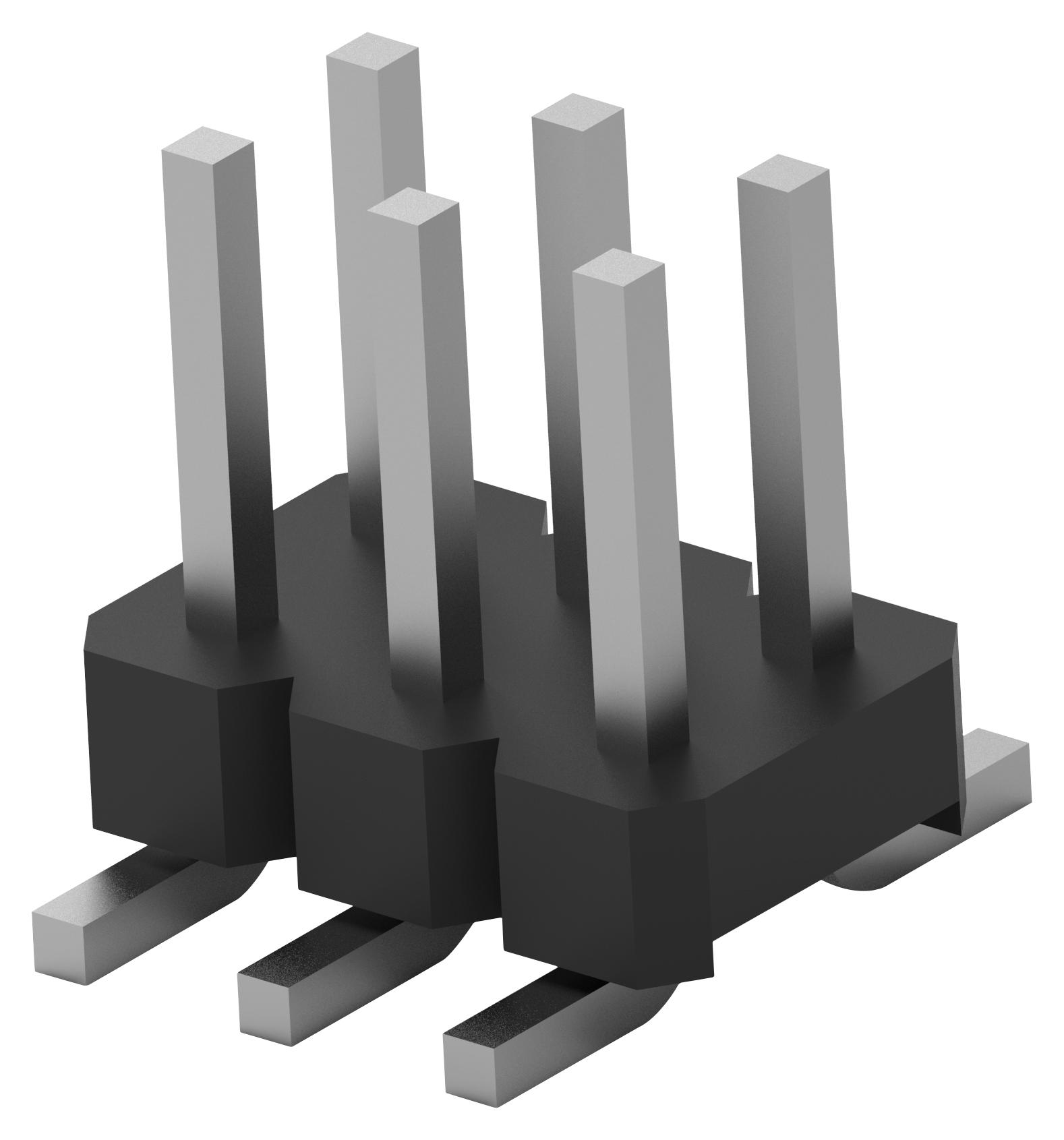

TE CONNECTIVITY 28421443 Industrial Connector
The AMPMODU 2mm Breakaway Header by TE Connectivity is a space-efficient, versatile connector suitable for PCB assembly in industrial and automation applications. Featuring a 2.00mm centerline and 0.50mm square pins, this connector offers options for single and double rows with 2-25 positions per row. Designed for surface mounting, through-hole-reflow, and traditional through-hole mounting, it supports operating temperatures from -40°C to 125°C. Certified RoHS & REACH compliant, with a dielectric withstand voltage of 650VAC, and available in various packaging formats including tape and reel, tube, and box.
TE CONNECTIVITY 28421443 Industrial Connector Specifications:
- Centerline: 2.00mm [0.079]
- Contact Dimension: 0.50mm [0.02"] square pins
- Number of Positions: 2-25 per row, single or double row
- PCB Thickness: 1.6mm to 2.4mm [0.063" to 0.094"]
- Operating Temperature: -40°C to 125°C
- Current Rating: 2A (max.)
- Plating: Gold 0.76um [30p"] or Tin
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Housing Material: High temperature UL 94VO plastic, black
- Contact Material: Brass
- Reflow Solder Capable up to 260°C
- RoHS & REACH compliant
- Vibration Resistance: No electrical discontinuity greater than UL certification standards
Buy the Buy TE Connectivity AMPMODU 2mm Breakaway Header Part Number 28421443 Online
Purchase the TE Connectivity AMPMODU 2mm Breakaway Header online today to benefit from high-quality, space-efficient connectors designed for PCB assembly in industrial automation and control systems. These connectors support surface mounting, through-hole-reflow, and traditional through-hole techniques, providing versatile options for manufacturing. With a 2.00mm centerline, 0.50mm square pins, and ratings up to 2A, they ensure dependable electrical performance. Available in various packaging formats including tape and reel, tube, and box, these connectors are RoHS and REACH compliant for environmentally conscious manufacturing.
Order your TE Connectivity Series28421443 2mm Breakaway Header today and enhance your industrial automation projects with reliable, space-saving connectors.
