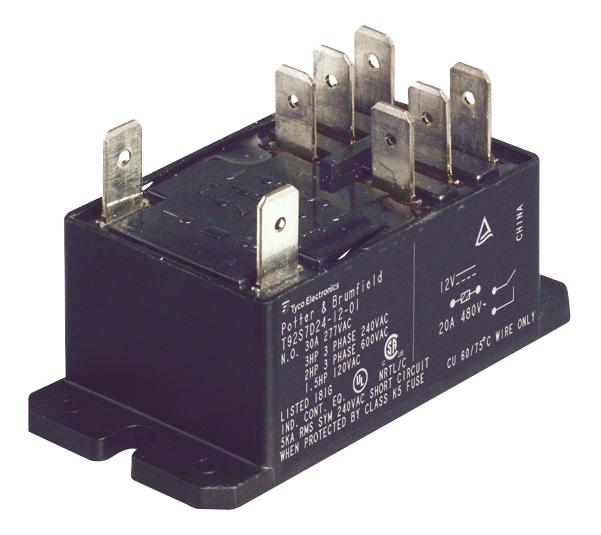

TE CONNECTIVITY 314230085 High Power PCB Relay
The T92 Series high-power relay is a versatile two-pole PCB or panel mount device capable of switching up to 30A. Designed for controlling compressor loads up to 3.5 tons, it features UL, CSA, and VDE approvals, meeting safety and spacing standards. Constructed with durable contact materials like AgSnOInO and AgCdO, it supports voltages up to 600VAC with resistive ratings of 30A. Suitable for HVAC, industrial controls, and residential appliances, this relay offers reliable operation, various mounting options, and robust insulation for demanding applications.
TE CONNECTIVITY 314230085 High Power PCB Relay Specifications:
- Contact arrangement: 2 form A (NO), 2 form C (CO)
- Rated voltage: 277VAC
- Max. switching voltage: 600VAC
- Rated current: 30A NO, 3A NC
- Limiting continuous current: 40A NO, 34A NC
- Contact material: AgSnOInO, AgCdO
- Dielectric strength: 1500V between open contacts, 4000V coil to contact, 2000V adjacent contact
- Insulation resistance: 4x10^9Ω
- Mounting: PCB or panel mount, snap-in or screw terminal options
- Ambient temperature: -55°C to 85°C (DC coil), -55°C to 65°C (AC coil)
- Terminal type: PCB-tht, quick connect, screw terminals
- Weight: approximately 86g
- Vibration resistance: 7.65mm max excursions, 10-55Hz
- Shock resistance: 100g destructive
- Compliance: RoHS, REACH, Halogen free
Buy the TE Series T92 High Power PCB Relay: 30A 277VAC Control Switch
Purchase the TE T92 Series high power relay online for reliable heavy-duty switching up to 600VAC, rated at 30A. Ideal for HVAC, industrial, and residential loads, it features UL, CSA, and VDE approvals, ensuring safety and durability. With versatile mounting options, robust contact materials, and insulation suitable for demanding environments, this relay offers long-lasting performance. Buy now to enhance your control systems with a trusted industrial component designed for high load capacities and dependable operation.
Get TE T92 Series high-power relay today—designed for industrial control and heavy-duty HVAC applications with reliable switching up to 600VAC.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 314230085?
You can click on the BUY or RFQ button to purchase 314230085 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 314230085?
You can download the 314230085 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 314230085?
TE CONNECTIVITY
