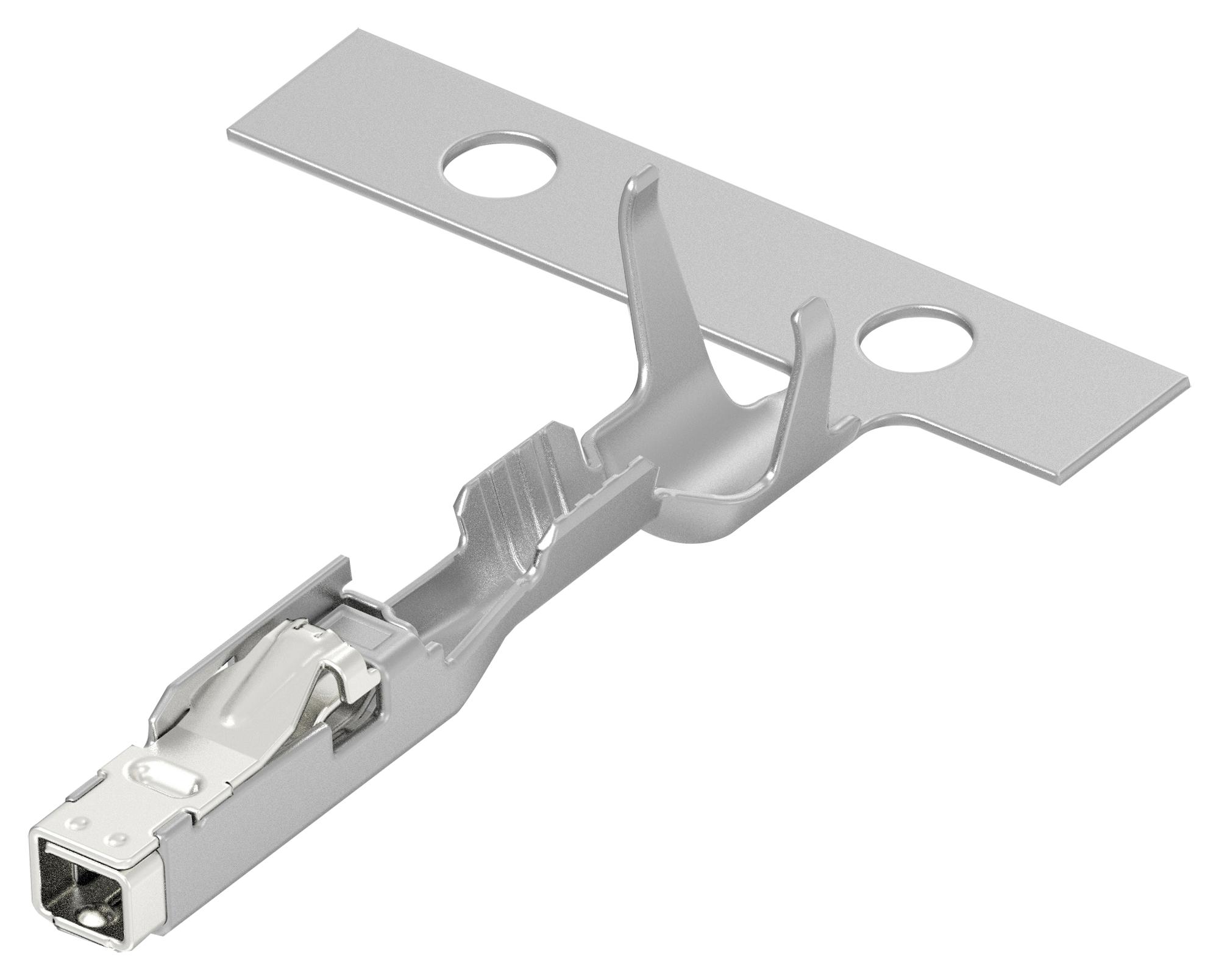

TE CONNECTIVITY 714526653 Automotive Receptacle
The MCON interconnection system receptacle is designed for automotive applications, featuring a sealable receptacle style, primary locking feature, and a copper body with silver plating for durability. It supports wire sizes 22-23 AWG, with a tab width of 1.2 mm and thickness of 0.6 mm, transmitting 0-24 A in low power conditions. The component complies with EU RoHS, REACH, and ELV directives, and is rated for operating temperatures up to 150°C. Perfect for reliable electrical connections in automotive wiring harnesses.
TE CONNECTIVITY 714526653 Automotive Receptacle Specifications:
- Receptacle style with sealable feature
- Primary locking lock mechanism
- Contact Material: Copper with silver plating
- Wire Size: 22-23 AWG
- Tab Width: 1.2 mm (.047 in)
- Tab Thickness: 0.6 mm (.024 in)
- Current Rating: 0-24 A (Low Power)
- Operating Temperature Range: -40°C to 150°C
- Maximum Operating Temperature: 150°C
- Insulation Diameter: 1.1 - 1.75 mm
- Crimp Type: F- Crimp
- Seal Type: Single Wire Seal (SWS)
- Packaging: Reel, quantity 6000
- Compliance: EU RoHS, REACH, ELV, halogen-free
- Connector interface plating: Silver (Ag)
- Application: Automotive wiring harnesses
Buy the Buy TE MCON Interconnection System Receptacle Part Number 714526653 Online
Purchase the TE MCON interconnection system receptacle online today to ensure reliable and durable automotive electrical connections. Designed with a sealable receptacle style, a copper body with protective silver plating, supporting wire sizes 22-23 AWG, and rated for low power transmission up to 24 A. It features a lockable primary locking mechanism, supports temperatures up to 150°C, and complies with international safety and environmental standards including EU RoHS, REACH, and ELV directives. Ideal for professional automotive wiring applications, offering easy installation and secure sealing for long-term durability and safety.
Get TE MCON part number 714526653 today—optimized for automotive reliability, sealing, and long-lasting electrical connections.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 714526653?
You can click on the BUY or RFQ button to purchase 714526653 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 714526653?
You can download the 714526653 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 714526653?
TE CONNECTIVITY
