TE CONNECTIVITY RN73C2A294RBTG Precision Chip Resistor
The RN73 series consists of high precision thin film chip resistors with low TCRs down to 5ppm/°C and resistance tolerances as tight as 0.01%. Designed for applications in communications, industrial controls, instrumentation, and medical devices, these resistors feature three sputtered layers for optimal performance. They are available in chip sizes including 0402, 0603, 0805, 1206, 1210, 2010, and 2512 with rated powers from 0.063W to 0.5W at 70°C. With excellent stability, insulation resistance, and temperature range of -55°C to +155°C, these components are produced with uniform physical dimensions for easy placement.
TE CONNECTIVITY RN73C2A294RBTG Precision Chip Resistor Specifications:
- Resistance range: 20Ω to 517kΩ depending on size
- Tolerance: 0.01%, 0.05%, 0.1%, 1%
- Temperature Coefficient: 5ppm/°C to 10ppm/°C
- Rated Power @ 70°C: 0.063W to 0.5W depending on size
- Operating Voltage: 25V to 150V depending on size
- Max Overload Voltage: 50V to 300V
- Operating Temp. Range: -55°C to +155°C
- Insulation Resistance: >59999 MΩ
- Stability: ±0.05%
- Construction: Alumina substrate, NiCr resistor layer, silver electrodes, epoxy overcoat
- Package sizes: 0402, 0603, 0805, 1206, 1210, 2010, 2512
- Soldering profile: Peak 260°C, reflow times up to 3 cycles
- Environmental: Endurance, damp heat with load, and temperature cycling compliance

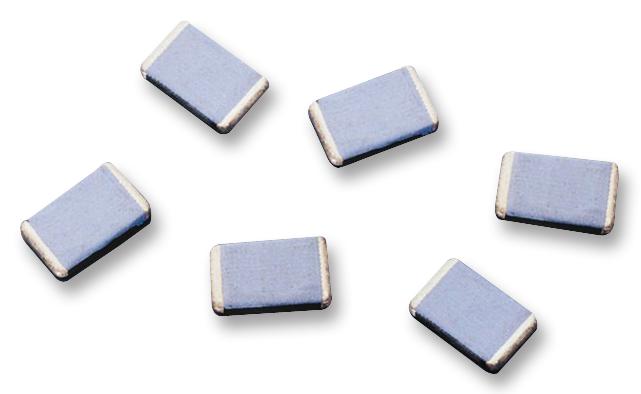

Buy the Buy TE Connectivity Thin Film Precision Resistors Part Number RN73C2A294RBTG Online
Order the TE Connectivity RN73 series thin film precision resistors online today. These resistors provide ultra-low TCR, tight tolerance down to 0.01%, and excellent stability for demanding electronic applications such as communications, industrial controls, instrumentation, and medical devices. Available in various sizes like 0402, 0603, 0805, and larger options, rated for power from 0.063W to 0.5W at 70°C. Their uniform physical dimensions ensure easy placement and reliable performance, making them the ideal choice for high-precision circuit designs and demanding environments.
Get TE Connectivity RN73C2A294RBTG high-precision thin film resistor today—designed for accuracy, stability, and durability in critical electronic applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RN73C2A294RBTG?
You can click on the BUY or RFQ button to purchase RN73C2A294RBTG from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RN73C2A294RBTG?
You can download the RN73C2A294RBTG datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RN73C2A294RBTG?
TE CONNECTIVITY
