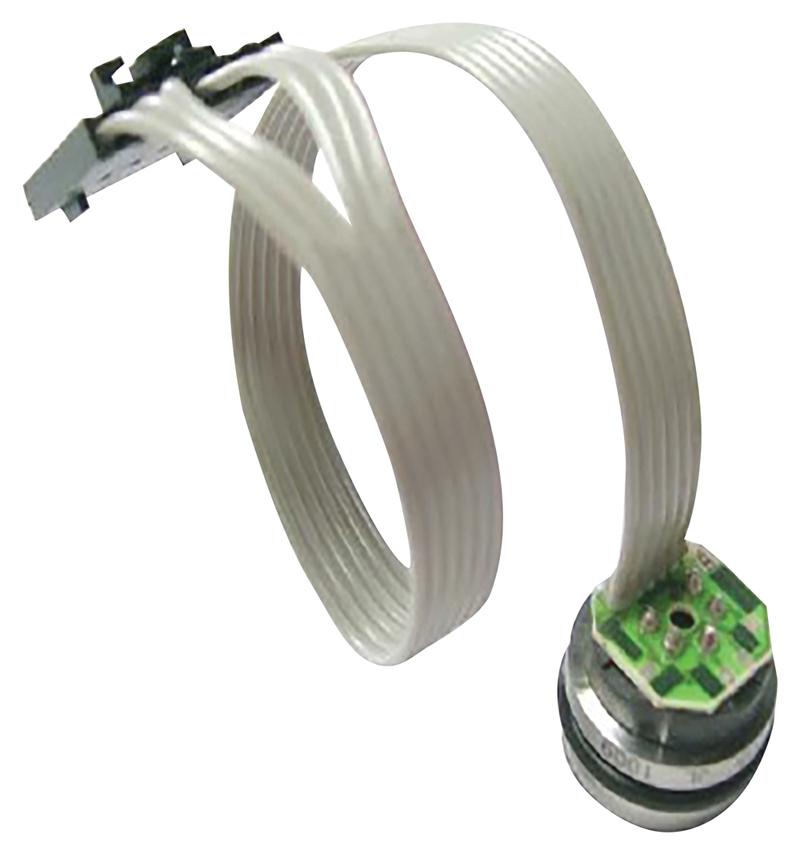

TE CONNECTIVITY 86015GC Pressure Sensor
The 86 compensated pressure sensor is a compact, media-compatible device housed in 316L stainless steel, ideal for OEM applications involving corrosive media. It offers a 0-100mV output, absolute and gage measurements, and features temperature compensation through laser-trimmed resistors. Suitable for medical, water, and process control applications, it operates from -40°C to +125°C with high stability. Its small profile and o-ring mounting make it ideal for precise pressure measurement in industrial environments and tank systems, with standard ranges up to 300 psig.
TE CONNECTIVITY 86015GC Pressure Sensor Specifications:
- Range: 0 to 300 psig, 0 to 500 psia
- Output: 0-100mV
- Supply Current: 1.5mA
- Operating Temperature: -40°C to +125°C
- Material: 316L stainless steel, ceramic substrate, silicon oil transfer
- Pressure Non-Linearity: ±0.2%
- Interchangeable Span: 1.0%
- Temperature Error — Span: +0.02% per °C
- Response Time: 10% to 90%, 1.5ms
- Pressure Overload: 3X
- Burst Pressure: 4X
- Insulation Resistance: 5MΩ at 50Vdc
- Dimensions: Small profile, o-ring mounting
- Media Compatibility: Liquids and gases compatible with 316/316L Stainless Steel, Silicon, Pyrex, Gold, Fluorosilicone Rubber
- Certifications: RoHS
Buy the TE Sensor 86015GC – Reliable Pressure Sensor for Industrial Applications
Experience the reliability of the TE Sensor 86015GC, a compact, corrosion-resistant pressure sensor ideal for demanding industrial, medical, and water applications. Its small profile and o-ring mounting ensure easy integration, while temperature compensation offers high accuracy over a wide range. With a 0-100mV output, operating from -40°C to +125°C, it supports critical pressure measurements in tank systems and process control. Order online today to benefit from precision, durability, and seamless performance in your application.
Get TE Sensor 86015GC today—designed for precise, durable pressure measurement in industrial and OEM environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 86015GC?
You can click on the BUY or RFQ button to purchase 86015GC from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 86015GC?
You can download the 86015GC datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 86015GC?
TE CONNECTIVITY
