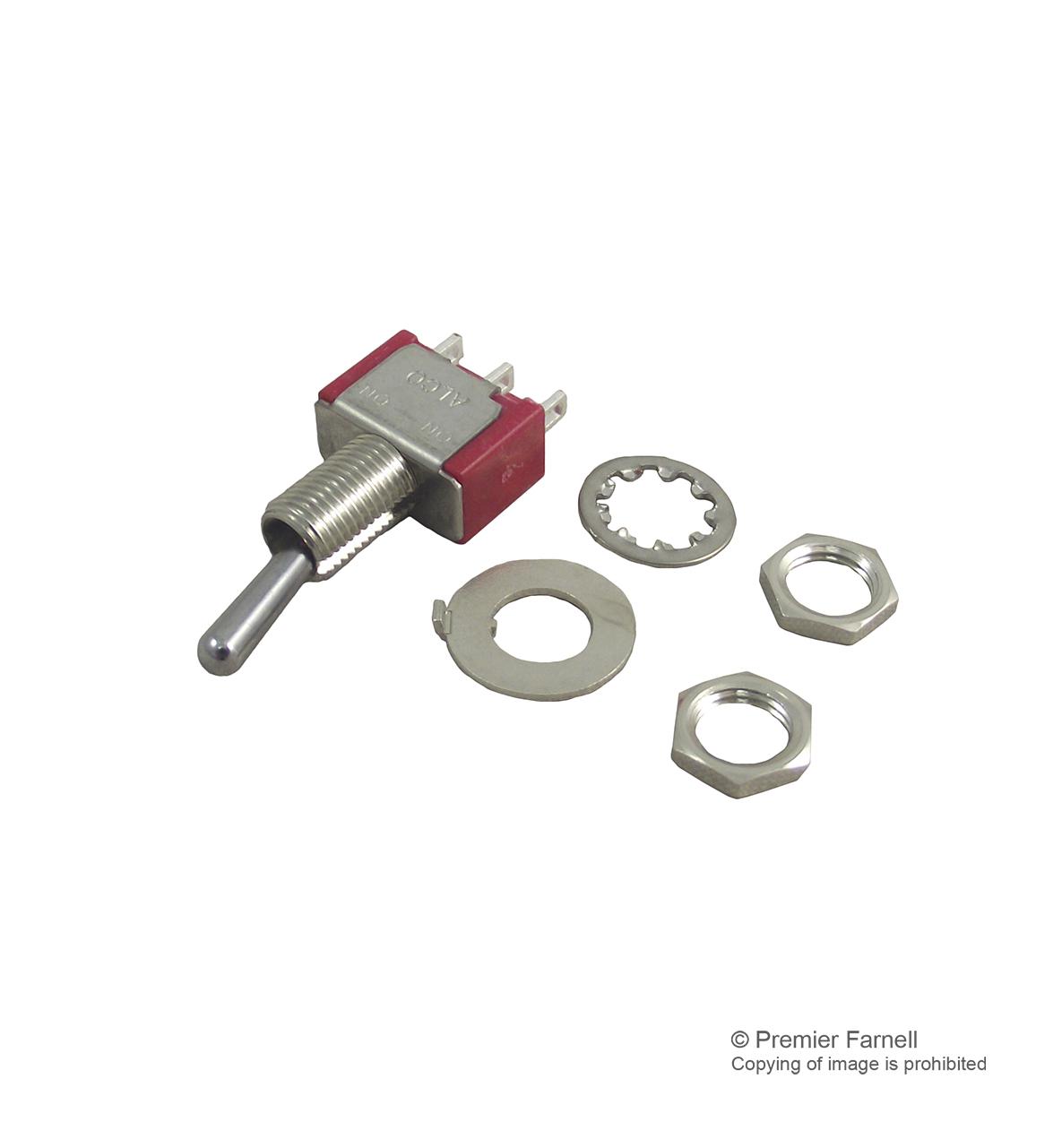

TE CONNECTIVITY A101SYZQ04 Toggle Switch
The Gemini series switch, including the Gemini AE series, offers reliable toggle and rocker switches suitable for industrial equipment, medical devices, communication, and outdoor lighting applications. They feature multiple contact configurations, epoxy-sealed terminals, durable brass and thermoplastic cases, and IP67 sealing standards for harsh environments. The switches support various actuation types like toggle, paddle, and rocker, with options for selective termination methods such as wire lug, printed circuit, and quick connect. They provide high functional versatility, environmental resilience, and compliance with RoHS standards, ensuring top performance and long-term durability.
TE CONNECTIVITY A101SYZQ04 Toggle Switch Specifications:
- Contact Configuration: 1, 2, 3, and 4 pole
- Contact Rating Max.: Gold: 0.4VA @20V AC/DC; Gold over Silver: 5A @ 125VAC or 28VDC resistive; Silver: 5A @ 125VAC or 28VDC resistive
- Electrical Life: 6000 cycles
- Contact Resistance, Initial: 10 mOhms max. at 2-4 VDC 100 mA
- Insulation Resistance: 1,000 MOhms
- Dielectric Strength: 1,000 Vrms @ sea level
- Operating Temperature: -30 to +85°C
- Storage Temperature: -30 to +85°C
- Solder Heat Resistance: Capable of wave soldering up to 265°C
- Material: Copper alloy contacts with gold or silver finish; Thermoplastic case; Brass alloy bushing
- Terminals: Epoxy sealed, various mounting options including right angle, vertical, wirewrap, wire lug, quick connect
- Actuator travel: 18° to 22° depending on function
- Ingress protection: IP67 for AE series, suitable for outdoor use
- Compliance: RoHS
- Bushing options: Unthreaded, threaded, or with support bracket
- Contact types include: ON-ON, ON-OFF-ON, (ON)-OFF-(ON)
- Environmental standards met: IP67 for AE series switches
Buy the TE Connectivity 18251421 U– Reliable Toggle Switch for Industrial Applications
Enhance your projects with the TE Connectivity Gemini Series toggle and rocker switches. Designed for durability, these switches feature epoxy-sealed terminals, IP67 sealing for outdoor applications, and compliance with RoHS standards. Available in various configurations and mounting options including right angle, vertical, wire wrap, and quick connect, they excel in industrial, medical, communication, and outdoor lighting equipment. Order online today to ensure reliable operation in harsh environments and long-term service life.
Order your TE Connectivity Gemini AE Series toggle switch today and experience dependable performance for demanding industrial and outdoor projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY A101SYZQ04?
You can click on the BUY or RFQ button to purchase A101SYZQ04 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part A101SYZQ04?
You can download the A101SYZQ04 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of A101SYZQ04?
TE CONNECTIVITY
