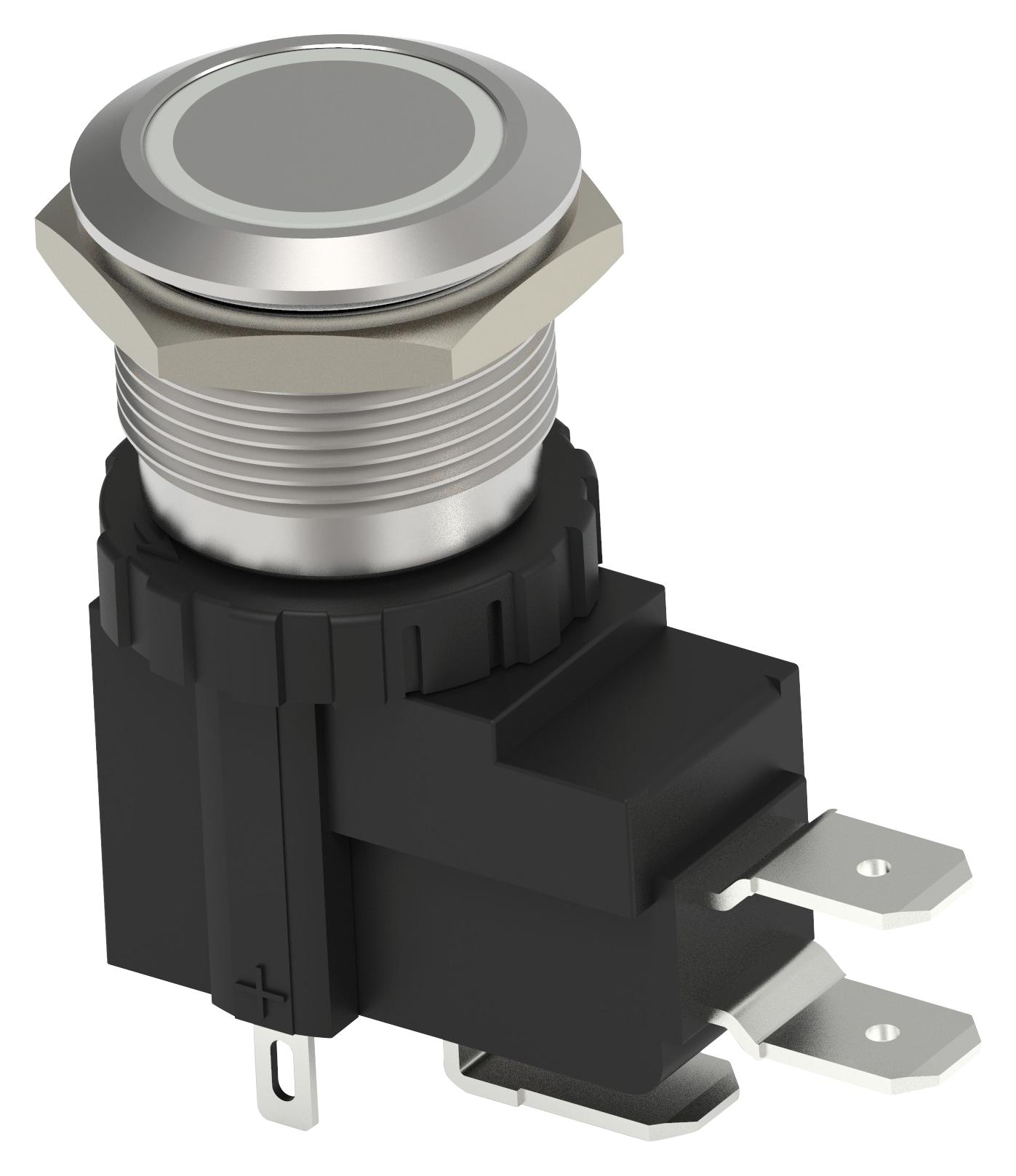

TE CONNECTIVITY AVH19LSFE3242604 High Current Vandal-Resistant Switch
The AVH Series anti-vandal high current pushbutton switches are robust, sealed, and designed for high power applications. Available in 19mm, 22mm, and 25mm diameters, these switches support ratings of up to 26A at 125/250VAC. Features include momentary and locking operations, various LED light options, and silicone sealing for ingress protection. They are UL Recognized, with a mechanical life of up to 1,000,000 cycles, and suitable for demanding industrial, automotive, and control systems requiring reliable, vandal-resistant switching solutions.
TE CONNECTIVITY AVH19LSFE3242604 High Current Vandal-Resistant Switch Specifications:
- Bushing Sizes: 19mm, 22mm, 25mm
- Contact Rating: 16A, 26A/125, 250VAC
- Operation: Momentary and Locking
- Resistive Contact Resistance: Max 50mΩ
- Temperature Range: -25°C to +85°C
- Mechanical Life: Up to 1,000,000 cycles
- Ingress Protection: Sealed with Silicone
- Panel Cut-out Diameter: 19.10mm, 22.20mm, 25.20mm
- Panel Thickness: Max 10mm
- LED Light Types: Without LED, Power Symbol, Ring, Power Symbol + Ring, with various diameters and colors
- Terminal Types: #187 for 16A, #250 for 26A
- Certification: UL Recognized
- Operation Force: 3.5±1.5N
- Travel: 3.2mm
- Dimensions: See detailed mm and inch measurements for each size
- Sealing: Silicone
- Environmental Resistance: IP67, IK08
- Actuation: Flat button with lock and momentary options
Buy the AVH Series – Reliable Anti-Vandal High Current Pushbutton Switches for Industrial Applications
Experience the durability and high current capacity of the AVH Series vandal-resistant pushbutton switches. Perfect for industrial, automotive, and control applications, these switches feature sealed silicone construction, multiple actuation options, and LED light configurations. With ratings up to 26A at 125/250VAC, they are UL Recognized and designed to withstand harsh conditions with a long mechanical lifespan. Order online now and ensure reliable, vandal-proof operation for your equipment and systems.
Get AVH Series high current pushbutton switches today—built for precision, durability, and vandal-resistance in demanding industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY AVH19LSFE3242604?
You can click on the BUY or RFQ button to purchase AVH19LSFE3242604 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part AVH19LSFE3242604?
You can download the AVH19LSFE3242604 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of AVH19LSFE3242604?
TE CONNECTIVITY
