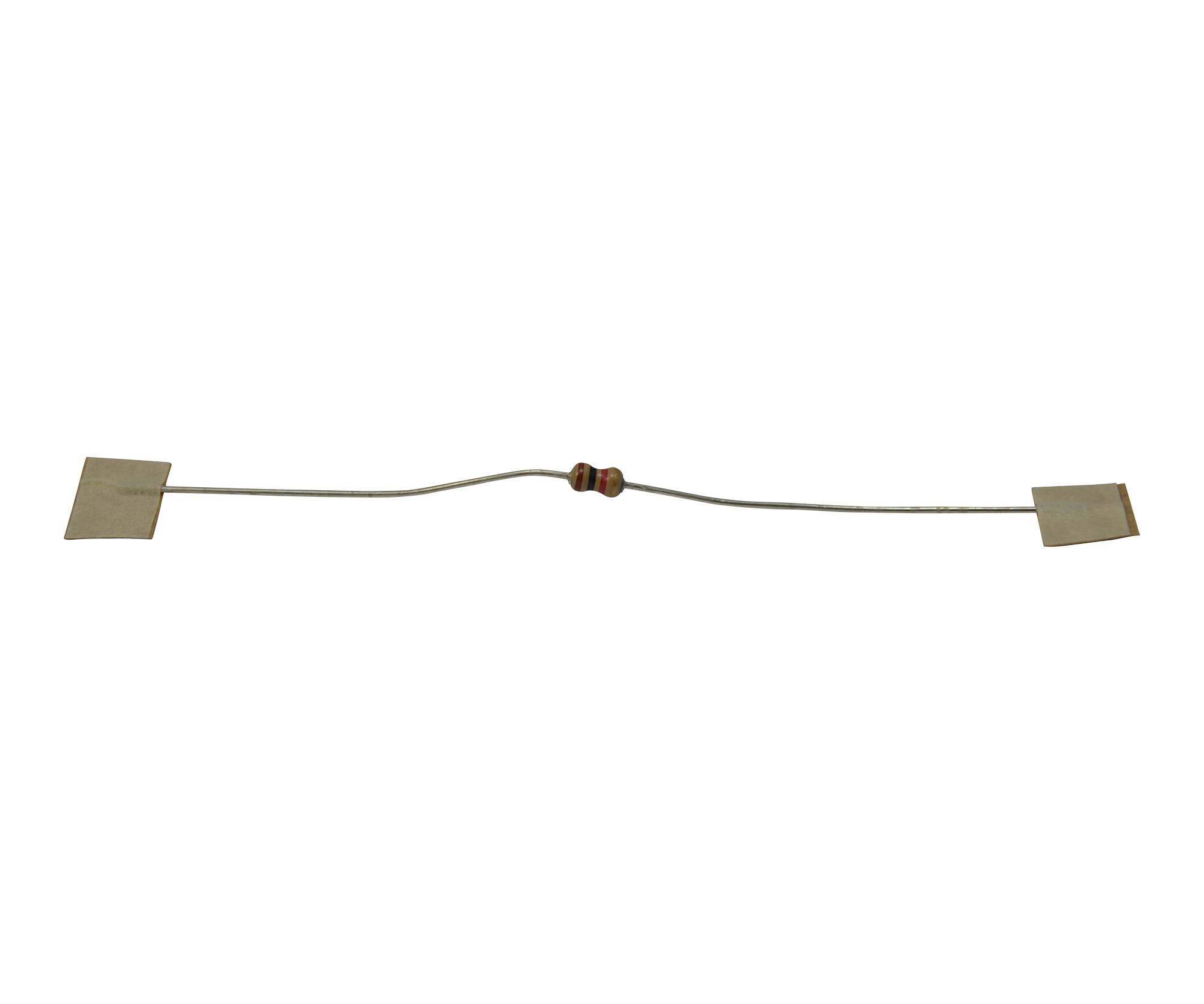

TE CONNECTIVITY CFR16J12K Carbon Film Resistor
TE Connectivity's CFR series carbon film resistors are designed for a wide range of applications requiring a cost-effective and reliable solution. These resistors utilize a thin film of carbon deposited onto a high thermal conductivity ceramic core, ensuring efficient heat dissipation. The construction includes metal end caps, tinned copper lead wires, and a protective coating of phenolic and epoxy resins. They are tested for value and tolerance, making them suitable for audio equipment, communication systems, measurement devices, and computing applications. The CFR series provides a good balance of performance and affordability for diverse industrial needs.
TE CONNECTIVITY CFR16J12K Carbon Film Resistor Specifications:
- rated_power_70c_w: 0.25
- resistance_range_min_ohms: 1R0
- resistance_range_max_ohms: 4M7
- tolerance_percent: 2
- code_letter: G
- tcr_ppm_c: ≤10R
- selection_series: E24
- limiting_element_voltage_v: 200
- max_overload_voltage_v: 400
- max_intermittent_overload_voltage_v: 500
- operating_temperature_range: -55 ~ +155
- climatic_category: 55/155/56
- dielectric_strength_v: 400
- insulation_resistance_m_ohms_min: 10000
- length_max_mm: 3.5
- d_max_mm: 1.85
- d_plusminus_005_mm: 0.45
- i_plusminus_3_mm: 28
- box_quantity: 5000
- std_tape_spacing: 52
- component_spacing: 5
Buy the CFR16J12K TE CONNECTIVITY Carbon Film Resistor | myMectronic
Purchase the TE CONNECTIVITY CFR16J12K Carbon Film Resistor securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY CFR16J12K?
You can click on the BUY or RFQ button to purchase CFR16J12K from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part CFR16J12K?
You can download the CFR16J12K datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of CFR16J12K?
TE CONNECTIVITY
