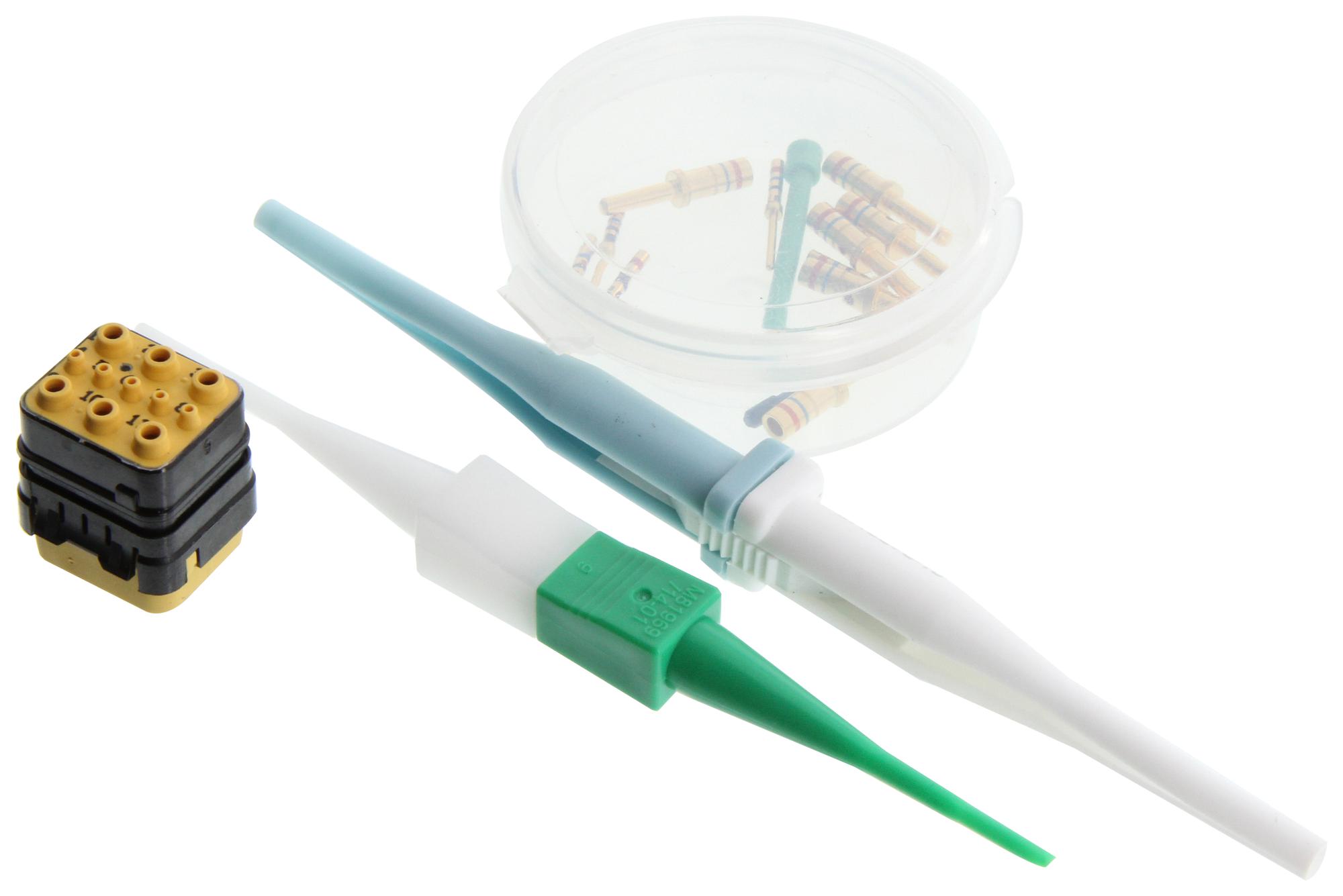

TE CONNECTIVITY DMCM9901PN DMC-M Series Connectors
The Deutsch DMC-M Series connectors are rugged, modular aerospace-grade connectors designed for flexible, reliable connectivity in demanding environments. Featuring EN4165 compliance, these lightweight connectors support multi-cavity configurations with options for aluminum or composite shells, nickel or cadmium plating, and fiber optic modules. They are suitable for aerospace, defense, and marine applications, offering durability, space and weight savings, and easy-to-mount designs with keying options to prevent misalignment. Mechanical and environmental specifications meet high industry standards for temperature, vibration, and salt spray resistance, ensuring long-lasting performance.
TE CONNECTIVITY DMCM9901PN DMC-M Series Connectors Specifications:
- Shell: Aluminum alloy or composite, with electroless nickel or olive drab cadmium finish
- Operating Temperature: -55°C to +175°C
- Durability: 500 mating cycles
- Contact Retention: Size 24: 2.7 daN, Size 08: 15.6 daN
- Salt Spray Resistance: Aluminum cadmium 500 hours, nickel finish 96 hours
- Voltage Withstand: Up to 1500 Vrms at sea level depending on module size
- Insulation Resistance: 25,000 MΩ at sea level
- Contact Current Rating: Size 24: 3A, Size 08: 46A
- Shielding Effectiveness: 30-70 dB at various MHz ranges
- Modules: Available in 2-48 module capacities with multiple configuration options
- Material: Copper alloy contacts, gold-plated
- Mechanical: Threaded coupling with tool-assisted module insertion/extraction
Buy the Buy Deutsch DMC-M Series Multicavity Connectors Part Number DMCM9901PN Online
Order the Deutsch DMC-M Series connectors online for high-reliability, lightweight aerospace and military communication systems. These modular connectors support multi-cavity configurations with fiber optic options, durable shells in aluminum or composite, and advanced keying to prevent mis-mating. Designed for harsh environments, they withstand extreme temperatures, vibrations, and corrosion, ensuring long-lasting, secure connections in aerospace, defense, and marine applications. Easy to install and maintain, they are ideal for space-constrained, demanding operational scenarios, offering proven industry standards compliance and exceptional performance.
Get Deutsch DMC-M Series connector DMCM9901PN today—built for rugged aerospace, defense, and marine applications with modular, lightweight design.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY DMCM9901PN?
You can click on the BUY or RFQ button to purchase DMCM9901PN from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part DMCM9901PN?
You can download the DMCM9901PN datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of DMCM9901PN?
TE CONNECTIVITY
