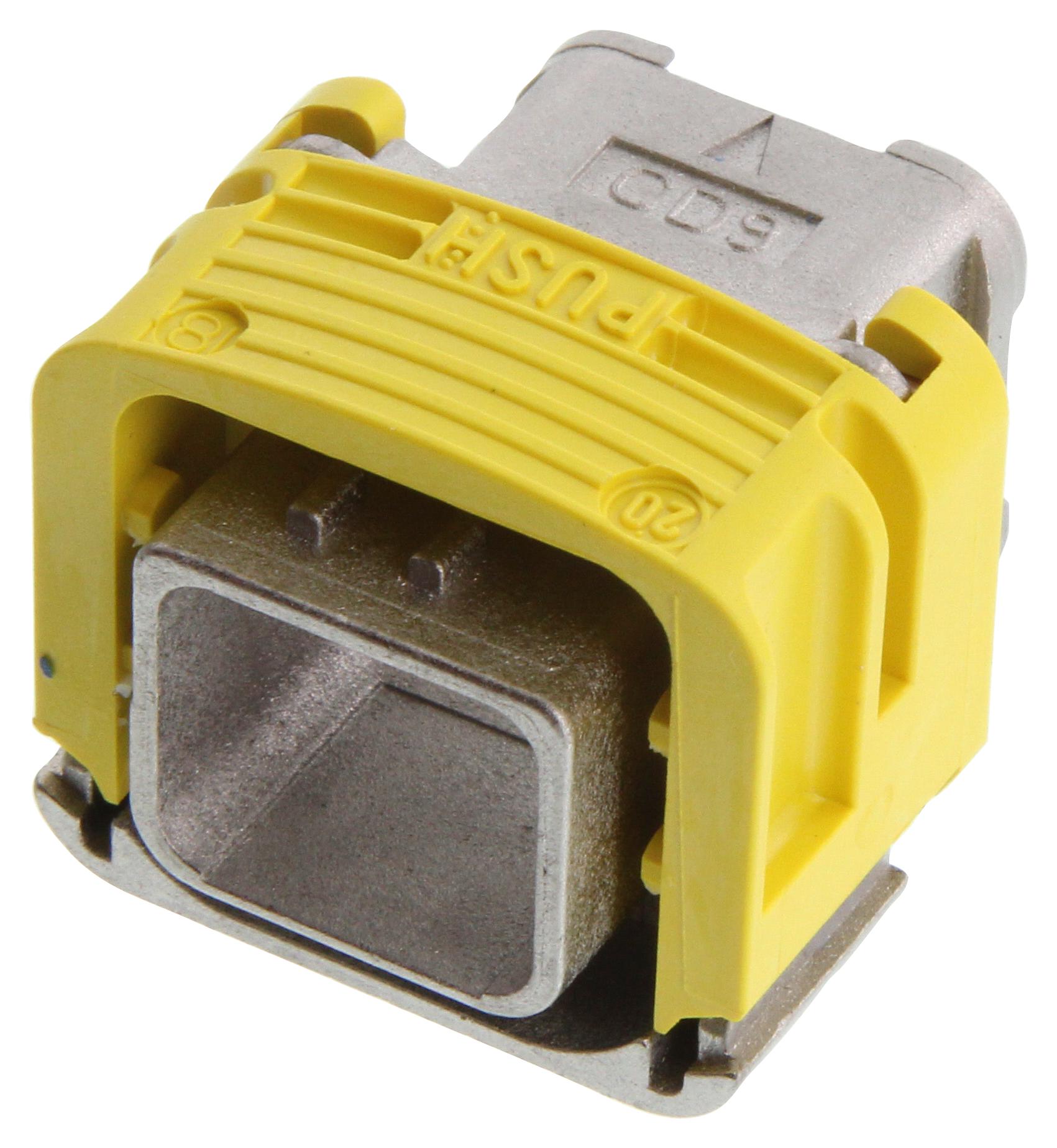

TE CONNECTIVITY DMCMD20D Aerospace Connector
The Deutsch DMC-MD series features quick change modular connectors ideal for aircraft in-flight entertainment and cabin systems, providing reliable and flexible connectivity solutions. Designed to meet aerospace standards, these single-module connectors are compliant with EN4165, ARINC 809, and BACC65 specifications. Constructed with durable composite housings and plated copper alloy contacts, they offer resistance to extreme temperatures (-55°C to +175°C), vibration, salt spray, and EMI shielding. Suitable for managing complex aerospace electrical and fiber optic connections with ease of installation, offering modular configurability for compact aircraft systems.
TE CONNECTIVITY DMCMD20D Aerospace Connector Specifications:
- Housing Material: Composite, nickel plated
- Module Material: Thermoplastic and fluoronated silicone
- Crimp Contacts: Copper alloy, plated gold over nickel
- Pin Size Options: 8, 12, 16, 20, 22, 23, 24 Contacts
- Temperature Range: -55°C to +175°C
- Vibration Resistance: 20 g
- Salt Spray Resistance: 500 hours
- Durability: 500 mating cycles
- Interfacial Sealing: 1.1 x 10^7 bar
- Insulation Resistance: 5000 MΩ
- Contact Current Rating: Sizes range from 3 A to 46 A
- EMI Attenuation: 30-50 dB depending on frequency
- Connector Types: Plug, Short Receptacle, Extender Receptacle
- Compatibility: Meets EN4165, ARINC 809, BACC65 standards
- Operating Temperature: -55°C to +175°C
- Weight: Receptacle approx. 0.013-0.015 lbs, Backshell approx. 0.009-0.020 lbs
Buy the Deutsch DMC-20D – Reliable Aerospace Modular Connectors for Industrial Applications
Order the Deutsch DMC-20D aerospace connector today online to ensure your aircraft systems operate with high reliability and efficiency. This modular connector is engineered with durable composite housing and gold-plated contacts, providing resistance to extreme temperatures, vibration, and corrosion. Its compliance with international aerospace standards makes it suitable for IFE and cabin systems, offering easy assembly, modularity, and lightweight design. Secure your aerospace connectivity needs now and benefit from fast delivery and expert support for your critical applications.
Buy Deutsch DMC-20D now and experience unmatched reliability and performance with lightweight, modular connectors designed for aerospace systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY DMCMD20D?
You can click on the BUY or RFQ button to purchase DMCMD20D from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part DMCMD20D?
You can download the DMCMD20D datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of DMCMD20D?
TE CONNECTIVITY
