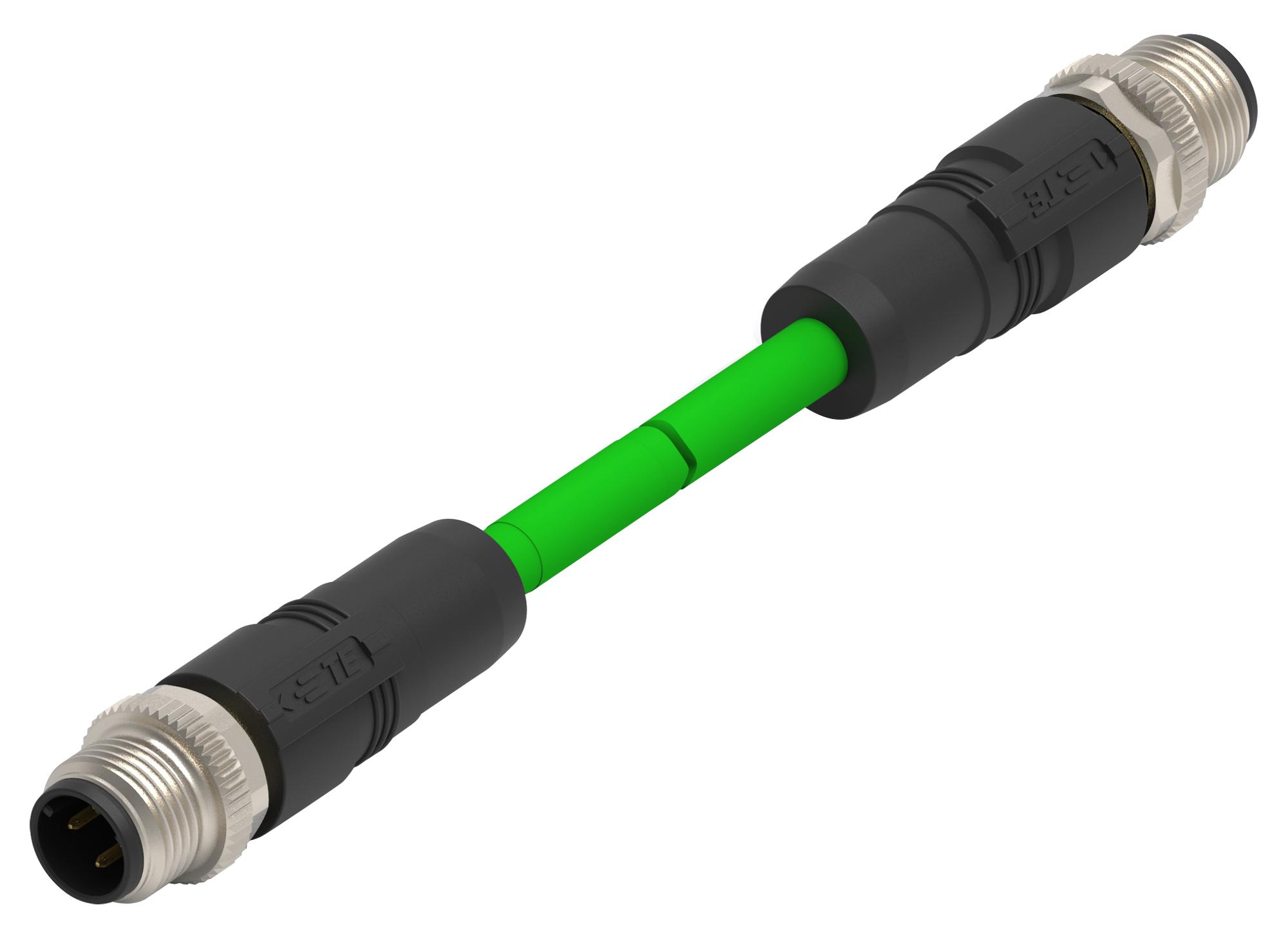

TE CONNECTIVITY TAD14747101002 Industrial Ethernet Cable
This M12 Ethernet double-ended cable assembly features M12 D-code 4-pin male straight connectors, designed for industrial Ethernet. Made with fire-retardant, non-corrosive FRNC green cable, it supports Category 5E data transmission up to 100 Mbps. Suitable for harsh environments, it has a voltage rating of 30V DC, current capacity of 1.5A, and IP67 protection against dust and water. The assembly's construction with brass contacts, nickel plating, and overmolded PUR/PVC ensures durability, with operating temperatures from -40°C to +80°C, ideal for automation and process control. Length options from 0.5m to 30m are available to meet diverse installation needs.
TE CONNECTIVITY TAD14747101002 Industrial Ethernet Cable Specifications:
- Connector Type: M12 D-code 4-pin male straight
- Cable Type: Category 5E shielded, FRNC green
- Voltage Rating: 30V DC
- Current Rating: 1.5A
- Protection Level: IP67
- Operating Temperature: -40°C to +80°C
- Material Contacts: Brass with 30μm Gold Plating
- Housing Material: PA
- Cable Jacket Material: FRNC/PU/PVC
- Flex Life: Up to 1 million flexes
- Certification: UL1863, IEC 61076-2-101, IEC 60512, IEC 60529
- Applications: Industrial Ethernet, automation, process control, robotics
- Length Options: 0.5m to 30m
- Build: Overmolded for durability
- Mechanical Durability: 100 cycles for drag chain use
Buy the TE Connectivity M12D4- - Reliable Industrial Ethernet Cables for Industrial Applications
Enhance your industrial network with TE Connectivity's rugged M12 Ethernet cable assembly featuring M12 D-code connectors. Designed for demanding environments, this shielded, IP67-rated cable supports high-speed data transfer up to 100 Mbps, ensuring reliable communication for automation, robotics, and process control systems. Available in multiple lengths, including 0.5 meters, it boasts durable brass contacts with gold plating, overmolded PUR or PVC jackets, and excellent resistance to dust, water, oils, and abrasion. Secure your industrial connectivity today with just a few clicks online.
Buy TE Connectivity M12D4- now and experience unmatched reliability and performance in harsh industrial environments with high-quality Ethernet solutions.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TAD14747101002?
You can click on the BUY or RFQ button to purchase TAD14747101002 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TAD14747101002?
You can download the TAD14747101002 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TAD14747101002?
TE CONNECTIVITY
