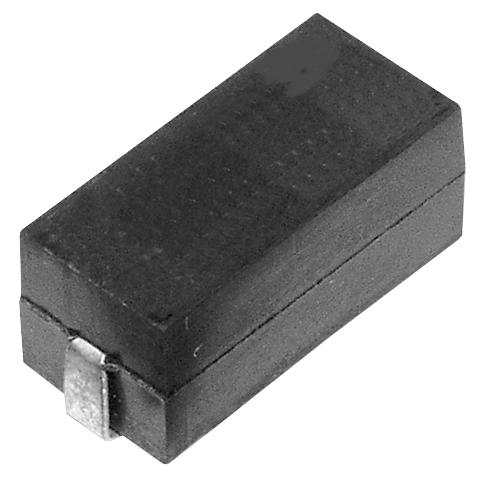

TE CONNECTIVITY SMW5240RJT Power Resistor
The SM Series SMD Moulded Power Resistor is designed for high-performance power circuitry with low profile case design. Available in 2, 3, and 5 watts, it features flameproof UL94V0 coating, welded construction for durability, and tinned copper terminations for reliable solder joints. Suitable for reflow and vapor phase manufacturing, this resistor offers wide resistance value ranges with 1% or 5% tolerance. It ensures stable operation under high temperatures and provides excellent environmental and electrical resilience, making it ideal for demanding power applications.
TE CONNECTIVITY SMW5240RJT Power Resistor Specifications:
- Power Ratings: 2.0 Watts, 3.0 Watts, 5.0 Watts at 25°C
- Maximum Operating Voltage: 300V (SM_2), 500V (SM_3 & SM_5)
- Resistance Range: R10 – 2008, 301R – 2M, with E24 grid
- Resistance Tolerance: 1% or 5%
- Temperature Coefficient: ±200ppm/°C (Wire), ±100ppm/°C (Metal Film)
- Rated Load: 2W, 3W, 5W respectively
- Environmental Tests: Short Time Overload (5x rated watts for 5s), Load Life @ 70°C for 1000 hours (+/-2%), Humidity Load Life @ 22°C, 90-95% RH for 500 hours (+/-2%)
- Dimensions (mm): Length 40–73, Width 14–17, Height 3.55–17, depending on model
- Solderability: 95% coverage at 235°C for 2 seconds
- Resistance to Soldering Heat: 270°C for 10 seconds
Buy the Buy TE Connectivity SM Series Power Resistor Part Number SMW5240RJT Online
Purchase the TE SM Series Power Resistor SMW5240RJT online today to ensure your projects benefit from high durability, precise resistance, and optimal thermal stability. Designed for power circuits requiring reliable performance and efficient heat dissipation, this resistor features low profile construction, welded full-metal design, and wide resistance value options. Whether you need 2W, 3W, or 5W ratings, buying online provides fast delivery, competitive pricing, and the assurance of authentic, factory-direct quality for your electronic and power applications.
Order your TE SeriesSMW5240RJT power resistor today and enhance your power circuitry with reliable, high-quality surface mount components.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY SMW5240RJT?
You can click on the BUY or RFQ button to purchase SMW5240RJT from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part SMW5240RJT?
You can download the SMW5240RJT datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of SMW5240RJT?
TE CONNECTIVITY
