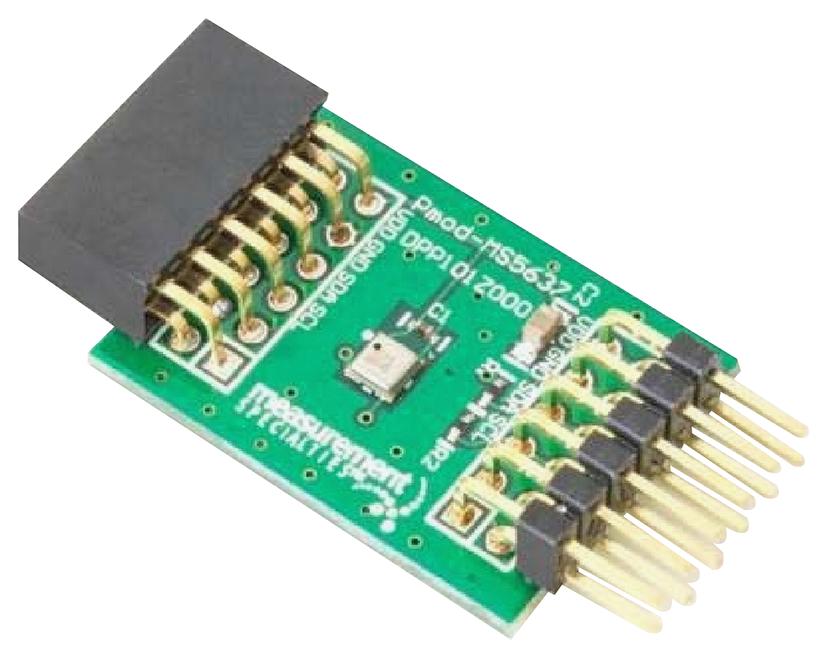

TE CONNECTIVITY DPP101Z000 Digital Pressure Sensor Module

The MS5637 peripheral module provides the necessary hardware interface to connect the MS5637 digital barometric pressure and temperature sensor to systems using Pmod-compatible expansion ports configured for I2C communication. The sensor is a self-contained, fully calibrated device capable of measuring pressure from 300 mbar to 1200 mbar and temperature from -40°C to 125°C. It features a high-linearity pressure sensor and an ultra-low power 24-bit ADC with internal factory calibration coefficients. The module supports fast response times with a typical conversion time of 0.5 ms, operates at voltages between 1.5V and 3.6V, and includes a 12-pin Pmod connector with an additional secondary connector for daisy chaining. It also offers download options for FPGA fabric and microcontroller C code. The sensor provides 24-bit resolution for both pressure and temperature measurements, with parameters stored on-chip and an altitude resolution at sea level of approximately 20 cm of air.

View DPP101Z000Datasheet [pdf]

Buy the Buy TE Connectivity MS5637 Peripheral Module Part Number DPP101Z000 Online

Purchase the TE Connectivity MS5637 peripheral module online for reliable pressure and temperature sensing in industrial and environmental monitoring. This module offers high resolution, low power consumption, and compatibility with Pmod interfaces, making it ideal for integration into various systems. Easily connect via I2C with support for daisy chaining, ensuring flexible deployment in applications requiring accurate altitude and weather data collection. With fast response and on-chip calibration, this sensor module guarantees consistent performance and straightforward integration into your projects. Order now to enhance your sensing solutions.

Get TE Connectivity MS5637 Peripheral Module DPP101Z000 today—designed for precise environmental measurements and long-term reliability.
