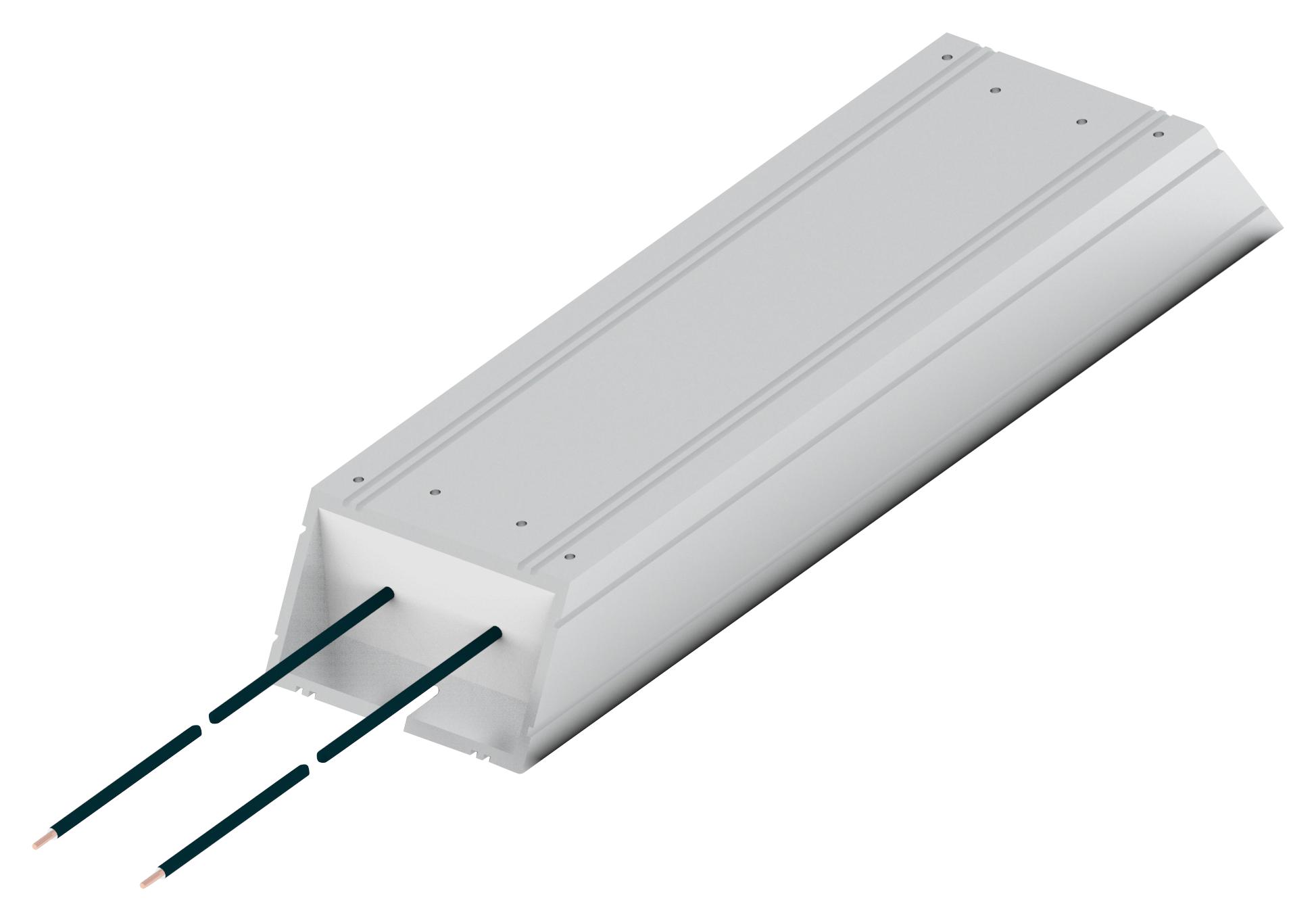

TE CONNECTIVITY HCH215J100RJ Aluminium Braking Resistor
The aluminium housed braking resistor is designed for high-power overload absorption in industrial drive systems. It features innovative PTFE insulation, IP54 ingress protection, and flying leads for flexible connection. Suitable for regenerative energy dissipation in braking applications, it is tested for load life, insulation resistance, dielectric strength, and environmental durability. Available in multiple power ratings from 200W to 500W with various resistance options, this resistor combines robust aluminium housing and wire wound elements to provide reliable performance under demanding conditions.
TE CONNECTIVITY HCH215J100RJ Aluminium Braking Resistor Specifications:
- Power Ratings: 200W, 300W, 400W, 500W
- Maximum Temperature: 320°C, 330°C, 350°C, 375°C depending on model
- Resistance Range: 680Ω to 2200Ω varied per model; higher/lower values available on request
- Overload Test: Applied for 1, 5, 40 seconds within 120s cycle, simulating typical braking duty cycles
- Ingress Protection: IP54, tested for dust and moisture resistance
- Body Material: Anodized extruded aluminium profile
- Insulation Resistance: >100MΩ @ 1000VDC
- Dielectric Strength: 3500VAC for 1 minute
- Dimensions (L, L1): 165-335mm, 146-316mm depending on model
- Flying Leads: 300mm PTFE insulated cables rated for 1000V, temperature 200°C
- Environmental Durability: Load life of 1000 hours, damp heat resistance, resistance to thermal cycling
Buy the Buy TE Connectivity Aluminium Housed Braking Resistor Part Number HCH215J100RJ Online
Purchase the TE Connectivity aluminium housed braking resistor HCH215J100RJ online today to enhance your drive system's braking performance. Featuring high power ratings, PTFE insulated flying leads, and IP54 protection, this resistor is designed for demanding industrial environments. Its robust aluminium body ensures durability, while its tested overload capacity guarantees reliable operation during high-stress braking cycles. Enjoy fast delivery, secure checkout, and technical support when you buy online, ensuring your project stays on schedule with quality components that deliver consistent performance under challenging conditions.
Buy TE Connectivity HCH215J100RJ now and experience unmatched reliability and performance in braking applications with efficient overload capacity.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH215J100RJ?
You can click on the BUY or RFQ button to purchase HCH215J100RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH215J100RJ?
You can download the HCH215J100RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH215J100RJ?
TE CONNECTIVITY
