TE CONNECTIVITY DPP901A000 Digital Pressure and Humidity Sensor

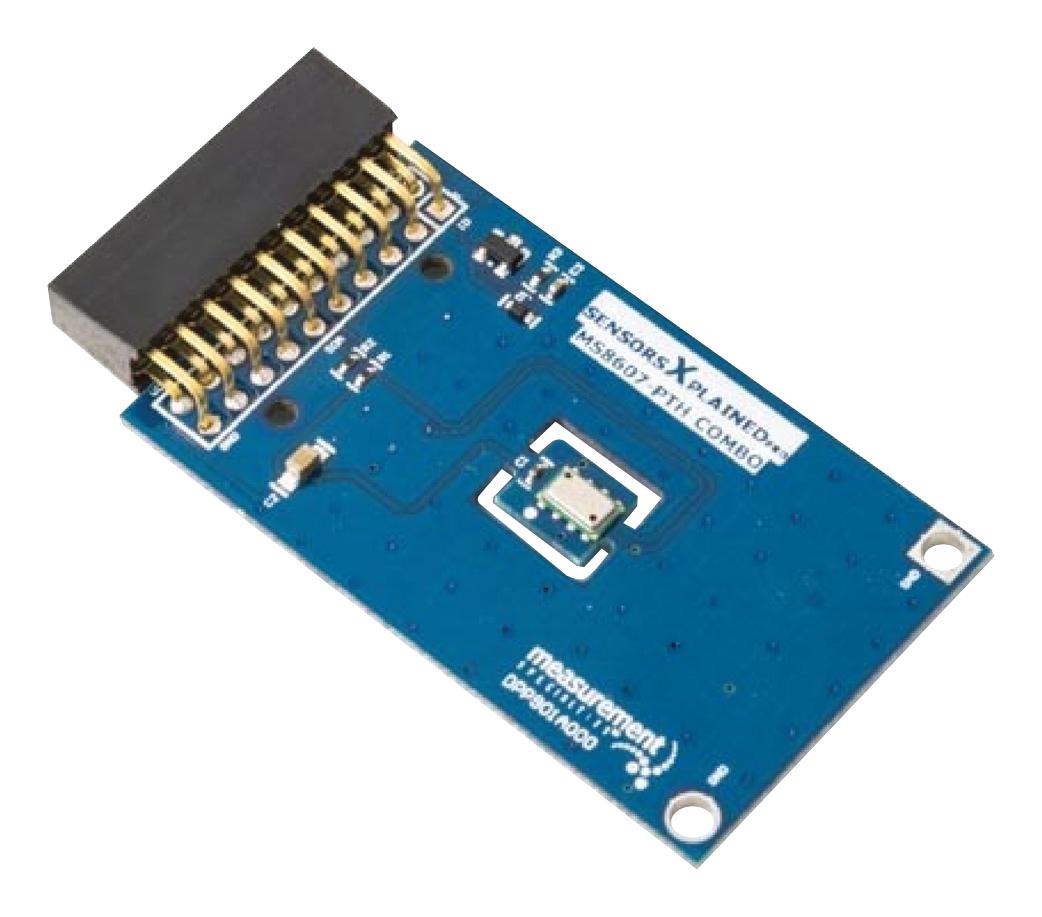

The MS8607 peripheral module provides the necessary hardware to connect the MS8607 digital sensor, which measures pressure, humidity, and temperature, to systems with Xplained Pro compatible expansion ports configured for I2C communication. The sensor is a self-contained, fully calibrated device capable of operating from 1.5V to 3.6V. It features a pressure measurement range from 300 to 1200 mbar (extended range up to 2000 mbar), relative humidity measurement from 0% to 100%, and temperature measurement from -40°C to 125°C. The module offers fast response times, low power consumption, and selectable resolutions for pressure, humidity, and temperature. It includes a 20-pin Xplained Pro connector, an internal identification chip, and supports Atmel Studio 6 projects and microcontroller C code downloads. The device boasts an absolute pressure accuracy of ±2 mbar and absolute humidity accuracy of ±3% RH at 25°C, with temperature accuracy of ±1°C over -20°C to 85°C.

View DPP901A000Datasheet [pdf]

Buy the TE Series MS8607 Digital Pressure Humidity Sensor: DPP901A000

Purchase the TE Connectivity MS8607 peripheral module online today and enhance your embedded systems with precise pressure, humidity, and temperature sensing. Featuring a compact design, high accuracy, and low power operation, this all-in-one sensor module is ideal for weather stations, environmental monitoring, and embedded IoT applications. Easily connect via I2C with the 20-pin compatible interface, supported by software and firmware for quick integration. Ensure reliable performance in your projects by acquiring this versatile and calibrated sensor module online now.

Buy TE Connectivity MS8607 DPP901A000 now and experience reliable pressure, humidity, and temperature measurements with easy I2C interface and low power consumption.
