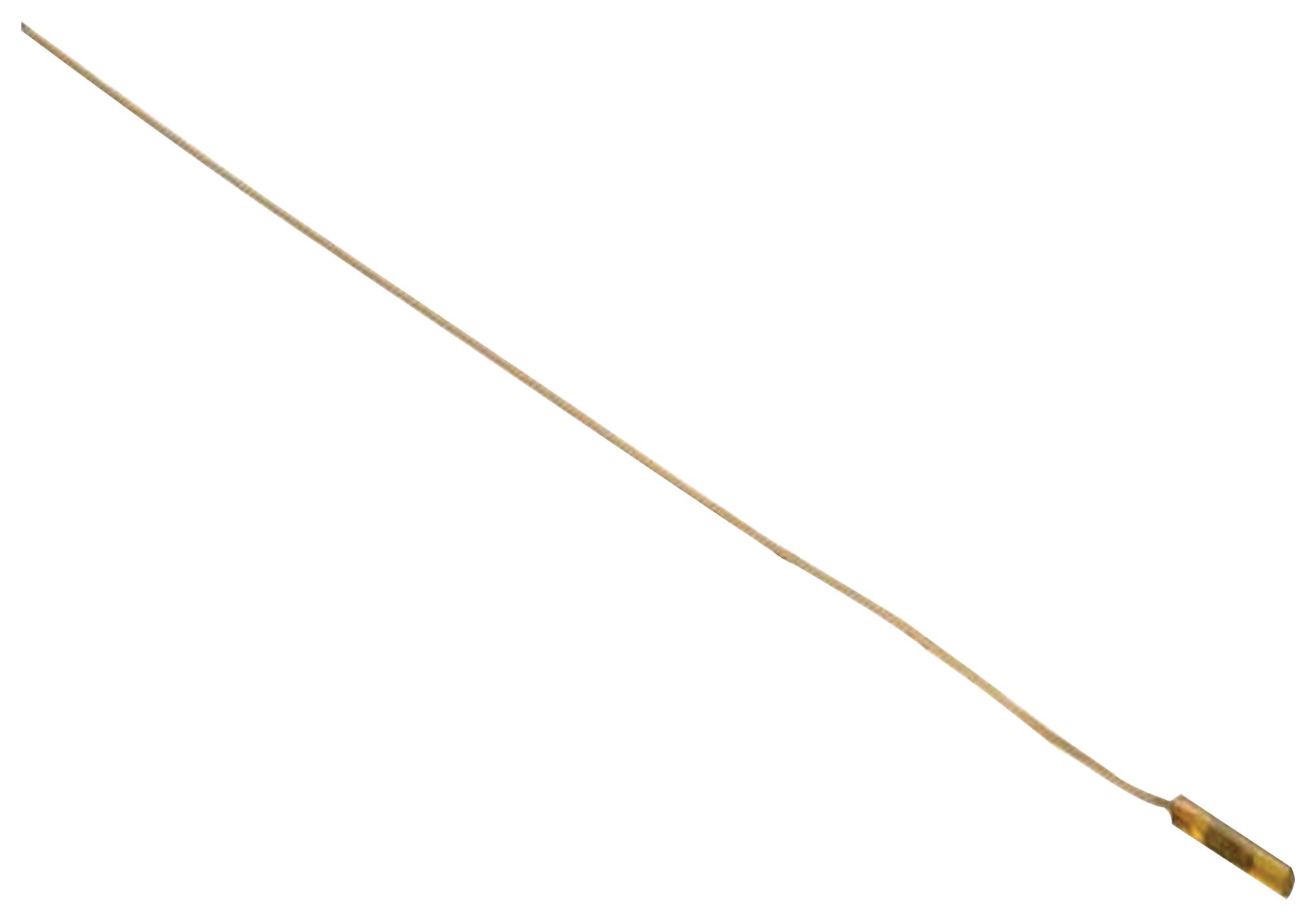

TE CONNECTIVITY GA100K6MCD1 Temperature Sensor
The Micro-Betachip Thermistor Probe is a compact, highly responsive temperature sensor ideal for low volume flow measurements, laboratory research, and medical applications. Featuring a resistance of 100,000 ohms at +25°C, it offers a rapid 200-millisecond response time in liquids and operates within a temperature range of -40°C to +125°C. Constructed with a soldered NTC thermistor, 38 AWG solid nickel bifilar leads, and epoxy resin potting inside a polyimide tube, it provides precise temperature monitoring in liquids and gases with small tip diameter and customizable specifications. Its small size and fast response make it perfect for sensitive scientific and medical purposes.
TE CONNECTIVITY GA100K6MCD1 Temperature Sensor Specifications:
- Resistance @ +25°C: 100,000 ohms
- Resistance tolerance @ 25°C: ±0.2°C
- Alpha Value @ 25°C: -4.68%/°C
- Beta Value 25/85 K: 4261
- Tolerance on Beta Value 25/85: ±0.5%
- Time response in liquids: 200 milliseconds
- Dissipation Constant in still air: 0.3 mW/°C
- Temperature range: -40°C to +125°C
- Lead wire: 38 AWG solid nickel bifilar
- Tip diameter: Max 0.5mm
- Lead length: Various options available
- Insulation: Polyester
- Construction: Encased in polyimide tube with epoxy resin
- Maximum length: 344mm
Buy the Buy TE Connectivity Micro-Betachip Thermistor Probe Part Number GA100K6MCD1 Online
Order the TE Connectivity Micro-Betachip Thermistor Probe online today and experience fast, accurate temperature measurement with a compact, reliable design. Ideal for scientific research, medical devices, and low flow sensors, this high-precision NTC thermistor features a resistance of 100,000 ohms at +25°C and responds within 200 milliseconds in liquids. Encased in a durable polyimide tube, the probe offers temperature operation from -40°C to +125°C. With customizable lead lengths and a small tip diameter, it's perfectly suited for sensitive applications requiring quick, accurate thermal sensing.
Get TE Connectivity Micro-Betachip Thermistor Probe today—built for rapid response, reliability, and precise temperature control in scientific and medical applications.
