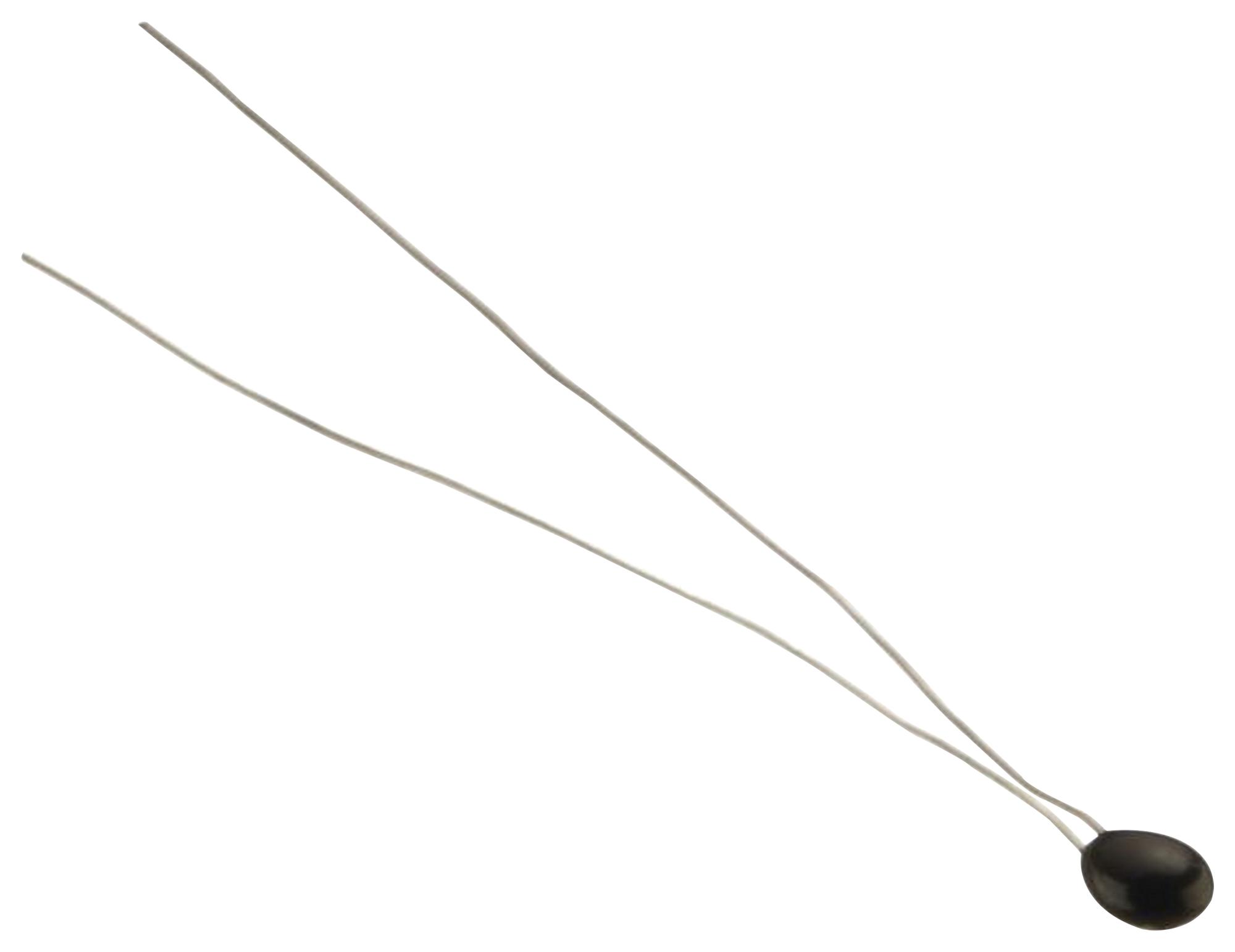

TE CONNECTIVITY GA10K4A1A Thermistor device
The 10K4A1 Series 1 thermistor is a reliable temperature sensing device with a resistance of 10,000 ohms at +25°C, featuring rapid response times less than 1 second, and a temperature range from -40°C to +125°C. It employs thermally conductive epoxy coating and alloy lead wires for reduced thermal conductivity. Suitable for temperature control, instrumentation, and automation, it offers various resistance tolerance options, proven stability, and interchangeability for precise applications in industrial and general instrumentation environments.
TE CONNECTIVITY GA10K4A1A Thermistor device Specifications:
- Resistance: 10,000 ohms at +25°C
- Resistance tolerance: 0.1°C, 0.2°C, 0.5°C, 1.0°C depending on model
- Temperature range: -40°C to +125°C
- Alpha value: 4.04%/°C
- Beta value: 3694 K
- Time response: less than 1 second
- Dissipation constant: 0.75 mW/°C
- Epoxy coating: Thermally conductive Stycast epoxy
- Lead wires: 32 AWG alloy 180
- Maximum diameter: 2.4 mm
- Operating in liquids and air
- RoHS compliant
- Interchangeability and stability
- Material: Alloy leads with epoxy encapsulation
Buy the Buy TE Connectivity 10K4A1 Series 1 Thermistor Part Number GA10K4A1A Online
Purchase the TE Connectivity 10K4A1 Series 1 thermistor online today and enjoy rapid temperature sensing with a 10,000-ohm resistance at +25°C. This highly stable and accurate sensor features a wide operating temperature from -40°C to +125°C, making it ideal for temperature control, instrumentation, and automation applications. The thermistor's epoxy coating and alloy lead wires ensure durability and precise performance in industrial environments. Order now and enhance your temperature measurement systems with this reliable, high-performance sensor that guarantees consistent and accurate readings in various challenging conditions.
Buy TE Connectivity 10K4A1 Series 1 thermistor now and experience fast response time, high accuracy, and reliable temperature measurement for industrial applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY GA10K4A1A?
You can click on the BUY or RFQ button to purchase GA10K4A1A from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part GA10K4A1A?
You can download the GA10K4A1A datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of GA10K4A1A?
TE CONNECTIVITY
