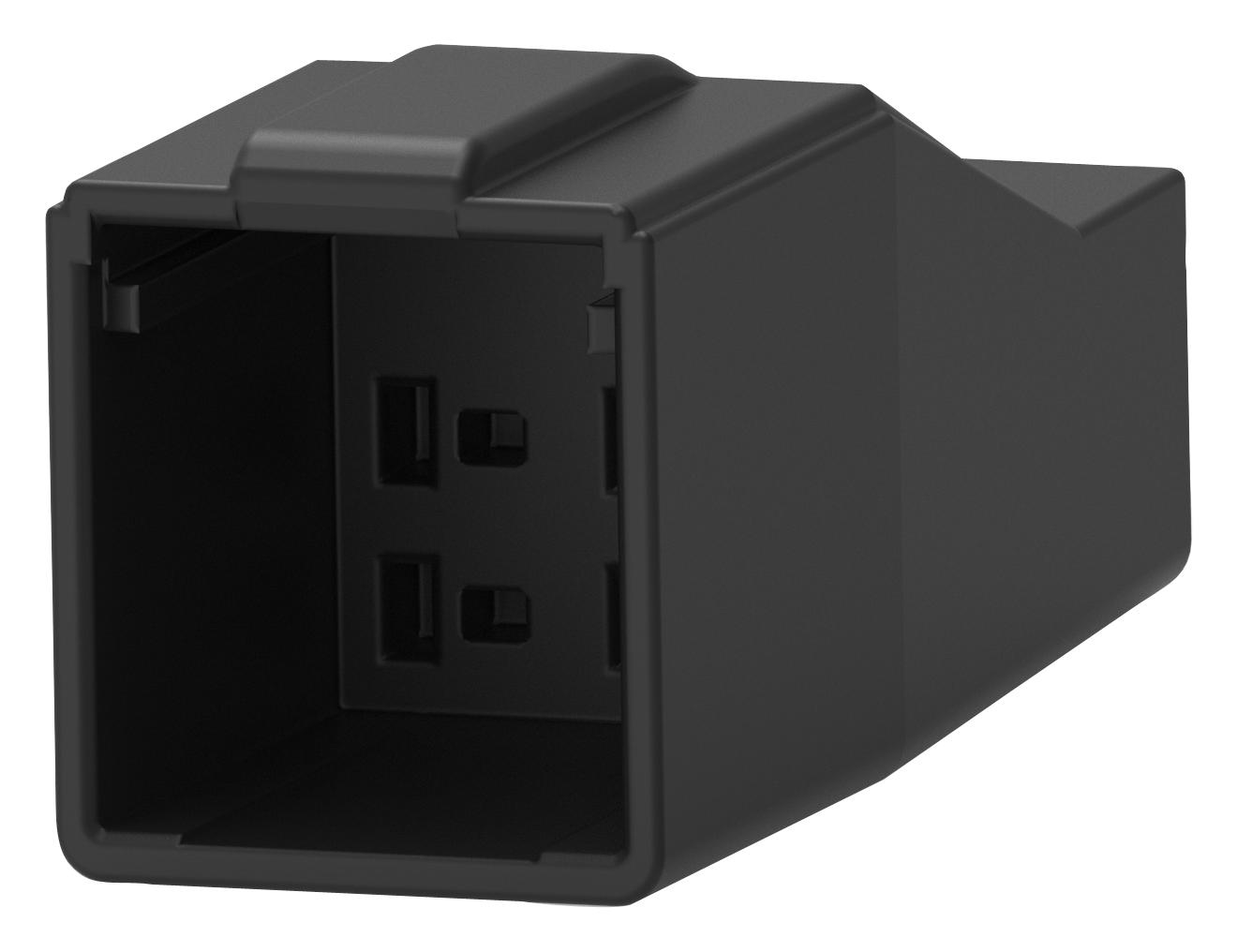

TE CONNECTIVITY 123666004 Dynamic D1000 Slim Connector
The TE Connectivity Dynamic D1000 slim wire-to-wire connector is designed for applications requiring a small footprint and high reliability. Its 80% smaller size compared to the D1200 series makes it ideal for robotic arms, AGVs, and other equipment with limited space. The connector's keying and locking features prevent unexpected unmating and breakage, while its easy mating and crimping process speeds up installation. It is suitable for applications in robotics, collaborative robots, automatic-guided vehicles, and servo motors.
TE CONNECTIVITY 123666004 Dynamic D1000 Slim Connector Specifications:
- Mating Times: 30
- Applicable Wire Size: AWG #22 to #30
- Applicable Temperature: -55°C to +125°C
- Current Rating: 4.5A/pos (at 4pos AWG #22 Temperature rising: 30°C max)
- Voltage Rating: AC/DC 250V max
- Withstand Voltage: AC 1,500 V/1 minutes
- Hsg Material: Thermo plastic, UL 94V-0, black
- Contact Material: Copper alloy
Buy the 1-2366600-4 TE CONNECTIVITY Dynamic D1000 Slim Connector | myMectronic
Purchase the TE Connectivity 1-2366600-4 Dynamic D1000 Slim Connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 123666004?
You can click on the BUY or RFQ button to purchase 123666004 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 123666004?
You can download the 123666004 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 123666004?
TE CONNECTIVITY
