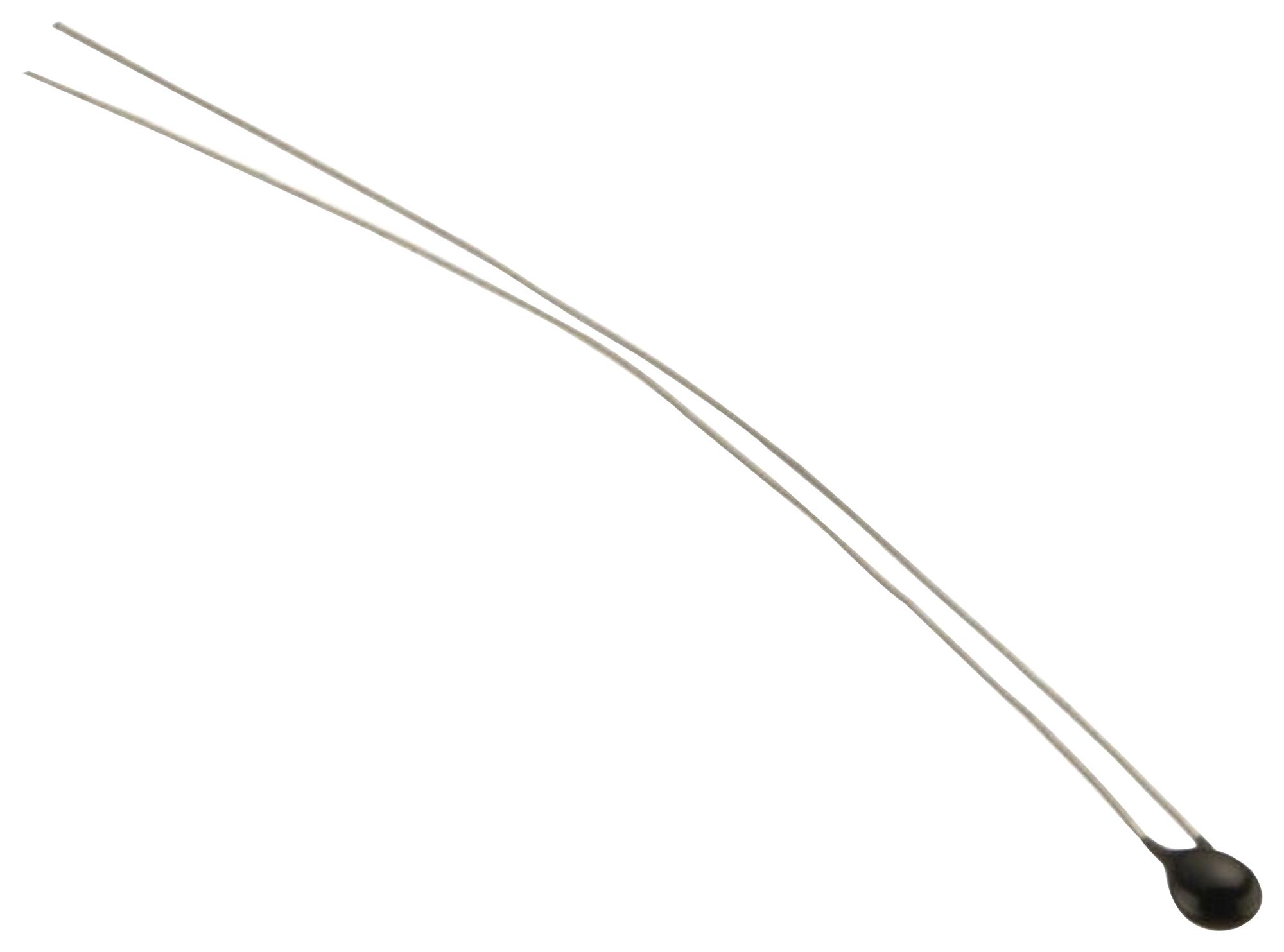

TE CONNECTIVITY GA1K2A1 Thermistor Sensor
The 1K2A1 Series V thermistor is a high-precision temperature sensor designed for temperature sensing, control, and compensation in low-temperature applications. It features a resistance of 1000 Ohms at +25°C, with a tolerance of 0.2°C, and is capable of operating within a temperature range of -40°C to +125°C. Encapsulated in Stycast epoxy resin with thermally conductive coating, it ensures stability and rapid response times below 1 second in liquids. Its alloy lead wires help reduce thermal conductivity for accurate measurement.
TE CONNECTIVITY GA1K2A1 Thermistor Sensor Specifications:
- Resistance @ +25°C: 1000 Ohms
- Resistance tolerance from 0°C to +25°C: 0.2°C
- Alpha Value @ 25°C: 3.68
- Beta Value 25/85: 3348 K
- Tolerance on Beta Value 25/85: 0.5%
- Temperature range: -40°C to +125°C
- Response time in liquids: <1 second
- Dissipation constant in still air: 0.75 mW/°C
- Thermally conductive epoxy coating
- Diameter: maximum 2.4 mm
- Lead wires: 32 AWG Alloy 180
- Encapsulated in Stycast epoxy
Buy the Buy TE Connectivity 1K2A1 Series V Thermistor Part Number GA1K2A1 Online
Purchase the TE Connectivity 1K2A1 Series V thermistor online for reliable temperature sensing in your industrial or electronic projects. Designed with a resistance of 1000 Ohms at 25°C, it operates efficiently within a temperature range of -40°C to +125°C. Encapsulated in robust Stycast epoxy, it offers fast response times below 1 second, ideal for low-temperature applications. Its alloy lead wires reduce thermal conductivity, providing accurate readings for temperature control, compensation, and measurement in various environmental conditions. Get yours today for dependable performance.
Order your TE Connectivity Series1K2A1 thermistor today and ensure precise temperature measurement for your low-temperature control systems.
