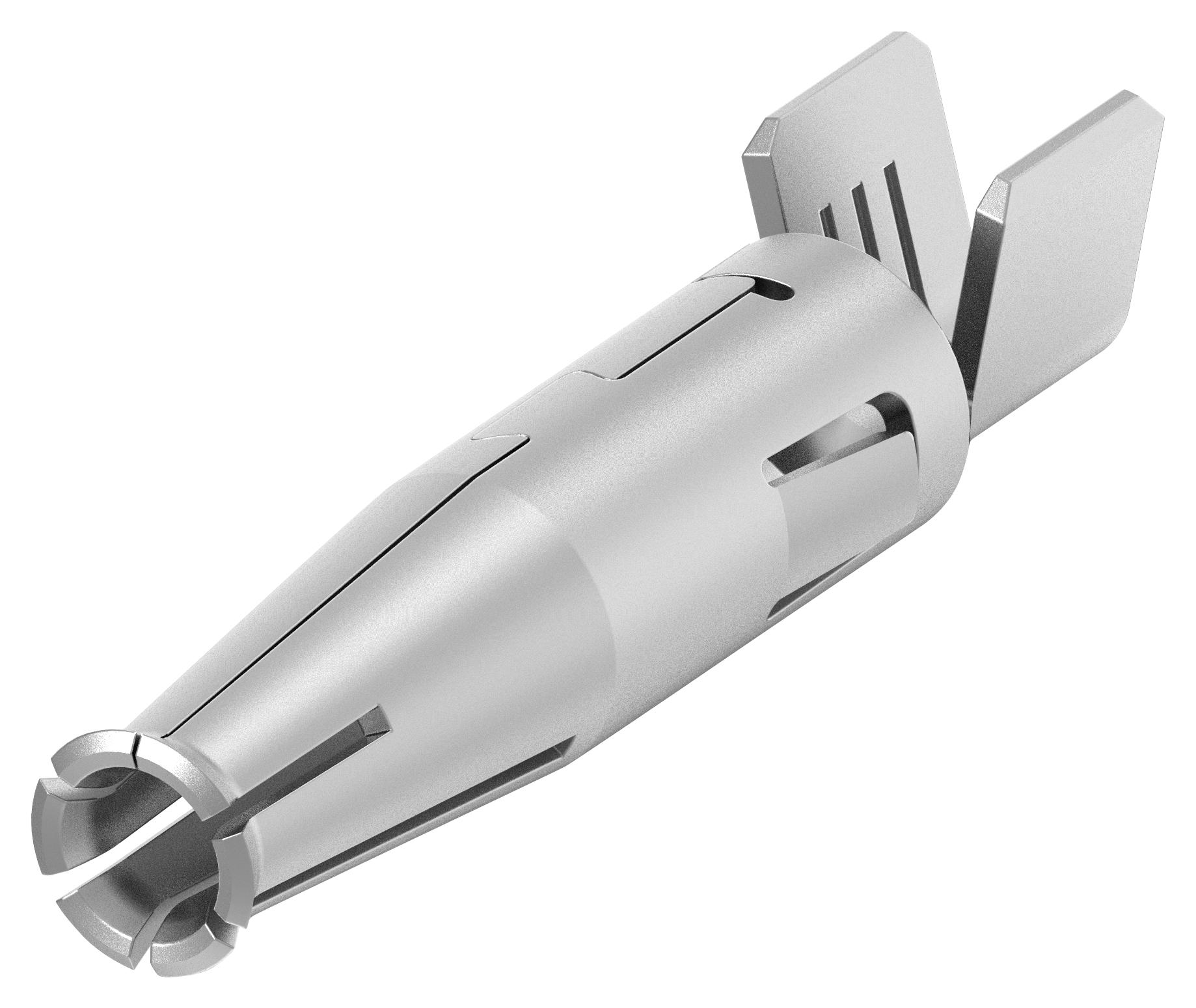

TE CONNECTIVITY 23595272 Power Connector
The NECTOR T Pluggable connectors by TE Connectivity offer a sealed, IP68-rated power-distribution solution designed for outdoor and harsh environment applications such as horticultural lighting, farm lights, and building facades. These connectors feature quick and flexible installation with crimp or screw terminals, providing high performance copper contacts, UV and rain protection, and polarization key options. Suitable for voltages up to 600V and currents of 10-25A, they ensure reliable, long-lasting connections in moist environments, with options including socket, pin, in-line, and splitter configurations for versatile electrical setups.
TE CONNECTIVITY 23595272 Power Connector Specifications:
- Voltage Rating: 600 Vac (UL), 500 Vac (IEC)
- Current Range: 10 to 25 Amp
- IP Rating: IP67, IP68
- Materials: PBT + PC resin with UL 94 VO & UV F1 rating
- Contact Material: Copper alloy
- Cable Gland Range: 7-911mm, 11-15mm
- Cable Range: 7 to 15 mm, 11 to 15 mm
- Termination: Crimp and screw types
- Application Specification: 114-133123
- Product Specification: 108-133123
- Polarizing Key: A (initial), B available on request
- Certification: UL 2238, IEC 61535-1
Buy the TE Series NECTOR T Pluggable Connectors: 23595272
Order the NECTOR T Pluggable Connectors from TE Connectivity online today. These durable, IP68-rated connectors are designed specifically for outdoor use, providing quick and easy installation with crimp or screw terminals. They are ideal for horticultural lighting, farm lights, and outdoor power distribution, ensuring long-lasting, reliable connections even in wet or dusty conditions. Enjoy the convenience of fast delivery, versatile configurations including splitters and panel mounts, and the assurance of proven quality and safety standards with every purchase.
Buy TE Connectivity NECTOR T Pluggable Connectors 23595272 now and experience unmatched reliability and performance in outdoor and harsh environment electrical applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23595272?
You can click on the BUY or RFQ button to purchase 23595272 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23595272?
You can download the 23595272 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23595272?
TE CONNECTIVITY
