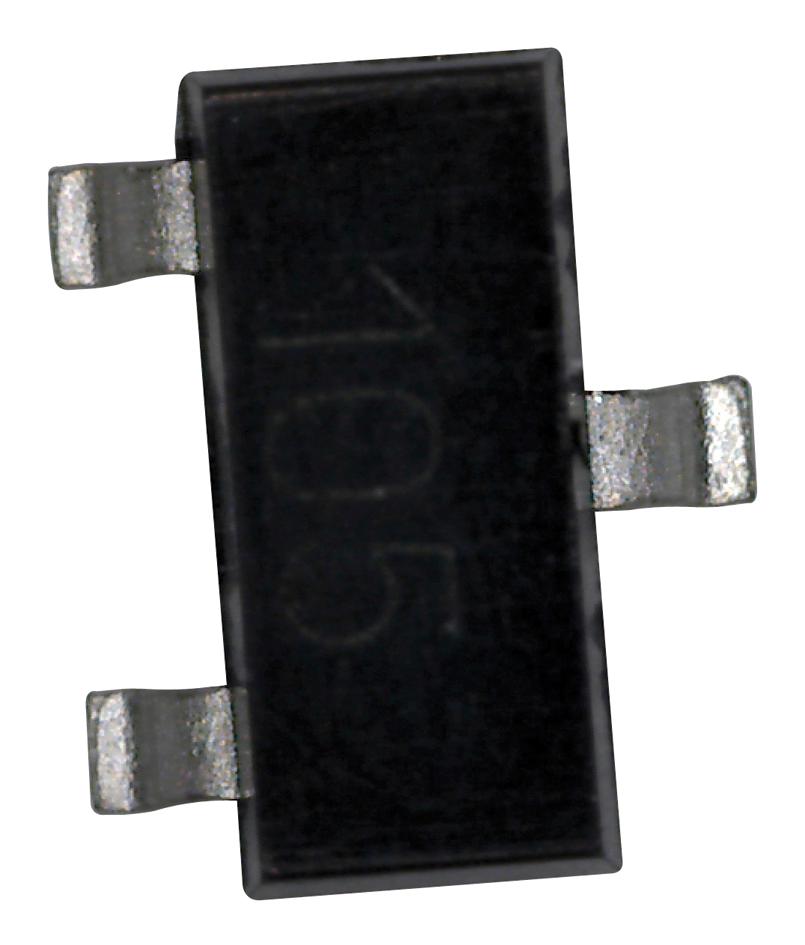

TE CONNECTIVITY GNICO001 Temperature Sensor
The Ni1000SOT is a nickel thin film RTD temperature sensor in a compact SOT23 package, suitable for contact sensing in harsh environments. It features high precision, good linearity, and a large temperature coefficient of resistance of 6178 ppm/K. Designed for automotive applications, it operates over -55°C to +160°C, with low power consumption and environmental protection passivation. Manufactured via PVD on silicon with encapsulation, it ensures stability, durability, and easy integration into instrumentation and remote sensing systems.
TE CONNECTIVITY GNICO001 Temperature Sensor Specifications:
- Resistance: 1000 ohms at 0°C
- Temperature range: -55°C to +160°C
- High resistance linearity with resistance and temperature (R vs T)
- Temperature coefficient of resistance: 6178 ppm/K (0°C to 100°C)
- Package: SOT23, encapsulated nickel thin film resistor
- Operating current: 0.2 to 5 mA
- Self heating power variation: 1.4 to 2 mW/K
- Maximum resistance drift: 0.1% after 1000 hours at 150°C
- Storage temperature: -55°C to +160°C
- Soldering: Reflow at +260°C, Sn96/Ag4 solder
- Mechanical dimensions: A: 2.67-3.05 mm, B: 1.20-1.40 mm, c: 0.89-1.12 mm, D: 0.37-0.53 mm
- Pin length: approximately 0.085-0.18 mm thickness
- Certifications: MIL 883E3015.7 Class 1, RoHS compliant
- Designed for automotive and instrumentation temperature sensing applications
Buy the Buy TE Connectivity Ni1000SOT Part Number GNICO001 Online
Order the TE Connectivity Ni1000SOT temperature sensor online today to experience high accuracy, stability, and reliable contact sensing in harsh environments. This nickel RTD in SOT23 package is ideal for automotive and instrumentation applications, offering excellent linearity and environmental protection. Its low power consumption and temperature range from -55°C to +160°C make it suitable for remote sensing, control, and temperature compensation systems. Trust in TE Connectivity’s quality for your demanding temperature measurement needs, and enjoy fast delivery and seamless purchasing experience.
Get TE Connectivity Ni1000SOT today—built for precision, durability, and automotive-grade contact temperature sensing.
