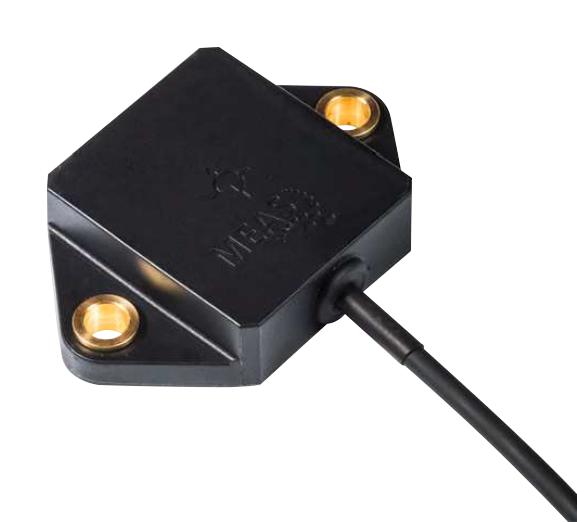

TE CONNECTIVITY GNSDOG2001 Voltage Inclinometer
The DOG2 MEMS Series Voltage Inclinometer is a compact, dual-axis sensor designed for accurate tilt measurement up to 90°. Featuring digital signal processing, temperature compensation, and a robust housing, it ensures optimal performance in noisy environments. Ideal for mobile and stationary applications such as platform leveling, vehicle tilt monitoring, and engine management, it offers high accuracy of 0.5° across a wide temperature range of -40°C to 85°C. Its 12-bit resolution and 100 Hz refresh rate enable real-time tilt detection, making it suitable for demanding industrial and automotive applications.
TE CONNECTIVITY GNSDOG2001 Voltage Inclinometer Specifications:
- Range: +25°, +45°, +90° dual axis
- Accuracy: 0.5° from -40°C to 85°C, 0.15° at 25°C
- Resolution: 12 bit
- Refresh Rate: 100 Hz
- Supply Voltage: 8 to 30 VDC
- Output: 0.5 to 4.5 V
- Operation Temperature: -40°C to 85°C
- Dimensions: 70.5 mm x 45 mm x 15 mm WxDxH
- Connector: 4-pin AMP Superseal, 400 mm PUR cable
- Housing Material: PA6.6, oil, grease, and fuel resistant
- Weight: approx. 60g
- Applications: Vehicle tilt, platform leveling, engine management
Buy the Buy TE Connectivity DOG2 MEMS Series Voltage Inclination Part Number GNSDOG2001 Online
Purchase the TE Connectivity DOG2 MEMS Series Voltage Inclinometer GNSDOG2001 online today to ensure reliable tilt measurement in demanding environments. This dual-axis inclinometer offers high accuracy of 0.5°, a 12-bit resolution, and a fast 100 Hz refresh rate, making it ideal for vehicle leveling, crane applications, and engine management. Its durable PA6.6 housing is oil and fuel resistant, suitable for harsh settings. Simplify your installation with a compact size and 4-pin connector, gaining precise tilt data safely and efficiently in one easy transaction.
Buy TE Connectivity DOG2 MEMS Series Voltage Inclination part number GNSDOG2001 now and experience high-precision tilt measurement for vehicle and industrial applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY GNSDOG2001?
You can click on the BUY or RFQ button to purchase GNSDOG2001 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part GNSDOG2001?
You can download the GNSDOG2001 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of GNSDOG2001?
TE CONNECTIVITY
