TE CONNECTIVITY 514620378 Signal Relay
The IM Relay is a high-performance, compact signal relay designed for reliable switching in telecommunication, industrial control, and test equipment. It features low coil power consumption, high dielectric and surge capability up to 2500Vrms, and mechanical shock resistance up to 300g. Available in various configurations including monostable, bistable, and high-current versions, it offers multiple contact arrangements, coil types, and terminal options. Suitable for demanding environments, it ensures durability, consistent switching, and compliance with IEC 61810-1 standards. Ideal for automation, medical, and automotive applications requiring robust relay solutions.
TE CONNECTIVITY 514620378 Signal Relay Specifications:
- Contact arrangement: 2 form C
- Switching power: 60W/62.5VA
- Switching voltage: 220VDC/250VAC
- Rated current: 2A or 5A
- Coil voltage range: 1.5VDC to 24VDC
- Coil power: 50mW to 140mW depending on version
- Dielectric strength: up to 2500Vrms between open contacts
- Shock resistance: up to 300g
- Ambient temperature: -40°C to +85°C
- Electrical endurance: ≥2.5x10^8 operations at minimal load
- Mechanical endurance: 10^8 operations
- Insulation resistance: >10^10Ω
- Dimensions: approximately 10x6mm for relay size
- Vibration resistance: 20g, 10-500Hz
- Mounting: THT and SMT options, gull wing and J-legs

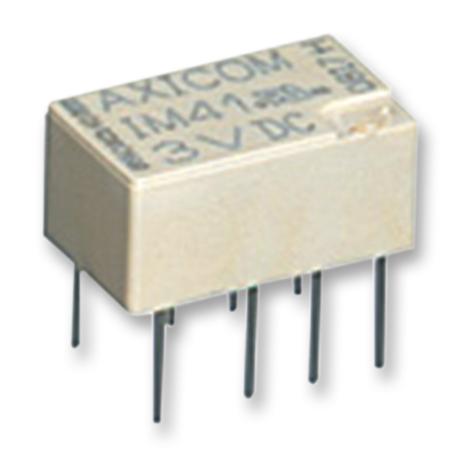

Buy the Buy Connectivity Signal Relays AXICOM Part Number 514620378 Online
Order the AXICOM IM Relay now to ensure reliable switching in telecommunication, industrial, medical, and automotive systems. Designed for durability, it features low coil power, high dielectric strength up to 2500Vrms, and excellent shock resistance. Its compact size and versatile configurations, including monostable and bistable versions, suit demanding applications. Purchase online today for quick delivery, competitive pricing, and engineered quality that guarantees long-lasting performance in critical control and automation environments.
Get AXICOM IM Relay today—built for precision, high surge capacity, and rugged industrial performance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 514620378?
You can click on the BUY or RFQ button to purchase 514620378 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 514620378?
You can download the 514620378 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 514620378?
TE CONNECTIVITY
