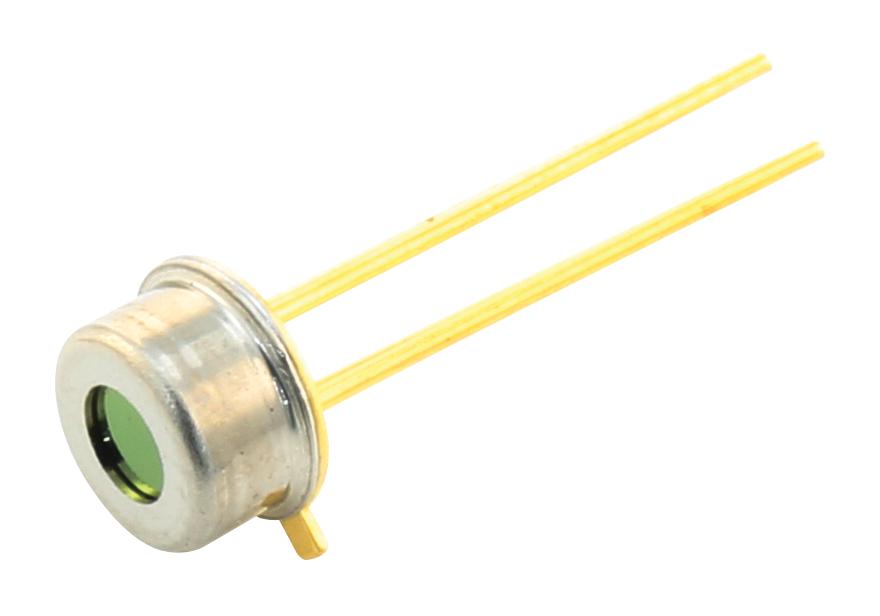

TE CONNECTIVITY GTPCO035 IR Thermopile Sensor
The thermopile sensor TS418-1N426 is a compact, high-performance IR sensor designed for non-dispersive infrared CO2 gas detection applications. It features a 4.26µm narrow band pass filter, a small TO-18 package, and offers very high signal output and accurate reference measurement. This sensor operates within ambient temperatures of -20°C to +85°C (permanent) and up to +100°C (non-permanent). With a field of view of 110° and a resistance of 180 ±60 kΩ at +25°C, it provides reliable, contactless infrared measurement for industrial and environmental monitoring systems.
TE CONNECTIVITY GTPCO035 IR Thermopile Sensor Specifications:
- Filter Type: NBP 4.26 +0.18 µm Narrow Band Pass
- Package: TO-18
- Absorber Area: 14x14 mm
- Thermopile Resistance: 180 ±60 kΩ at 25°C
- Temperature Coefficient of Resistance: 0.06%/K
- Voltage Response: -0.45 ±0.08 %/K (Tamo = 425°C to 75°C)
- Noise Equivalent Voltage: 130 nV/Hz1/2 at 25°C
- Rise Time: 63 to 2245 ms
- Field of View: 110° at 50% of maximum signal
- Operating Ambient Temperature: -20°C to +85°C (permanent), -20°C to +100°C (non-permanent)
- Storage Temperature: -20°C to +85°C (permanent), -20°C to +100°C (non-permanent)
Buy the TE Series TS418 IR Thermopile Sensor: GTPCO035
Order the TE Series TS418 IR thermopile sensor online today to ensure reliable, contactless CO2 gas detection in your environmental monitoring system. This high-precision sensor offers a narrow band pass filter at 4.26µm, compact TO-18 package, and exceptional high signal output for accurate measurements. Designed for operation between -20°C and +85°C permanently, it features a 14x14 mm absorber area, high thermopile resistance, and a wide 110° view angle. Ideal for industrial applications requiring precise, stable performance in harsh conditions, order now for fast delivery.
Get TE Series TS418 thermopile sensor today—built for precise non-dispersive infrared CO2 detection and long-lasting industrial performance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY GTPCO035?
You can click on the BUY or RFQ button to purchase GTPCO035 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part GTPCO035?
You can download the GTPCO035 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of GTPCO035?
TE CONNECTIVITY
