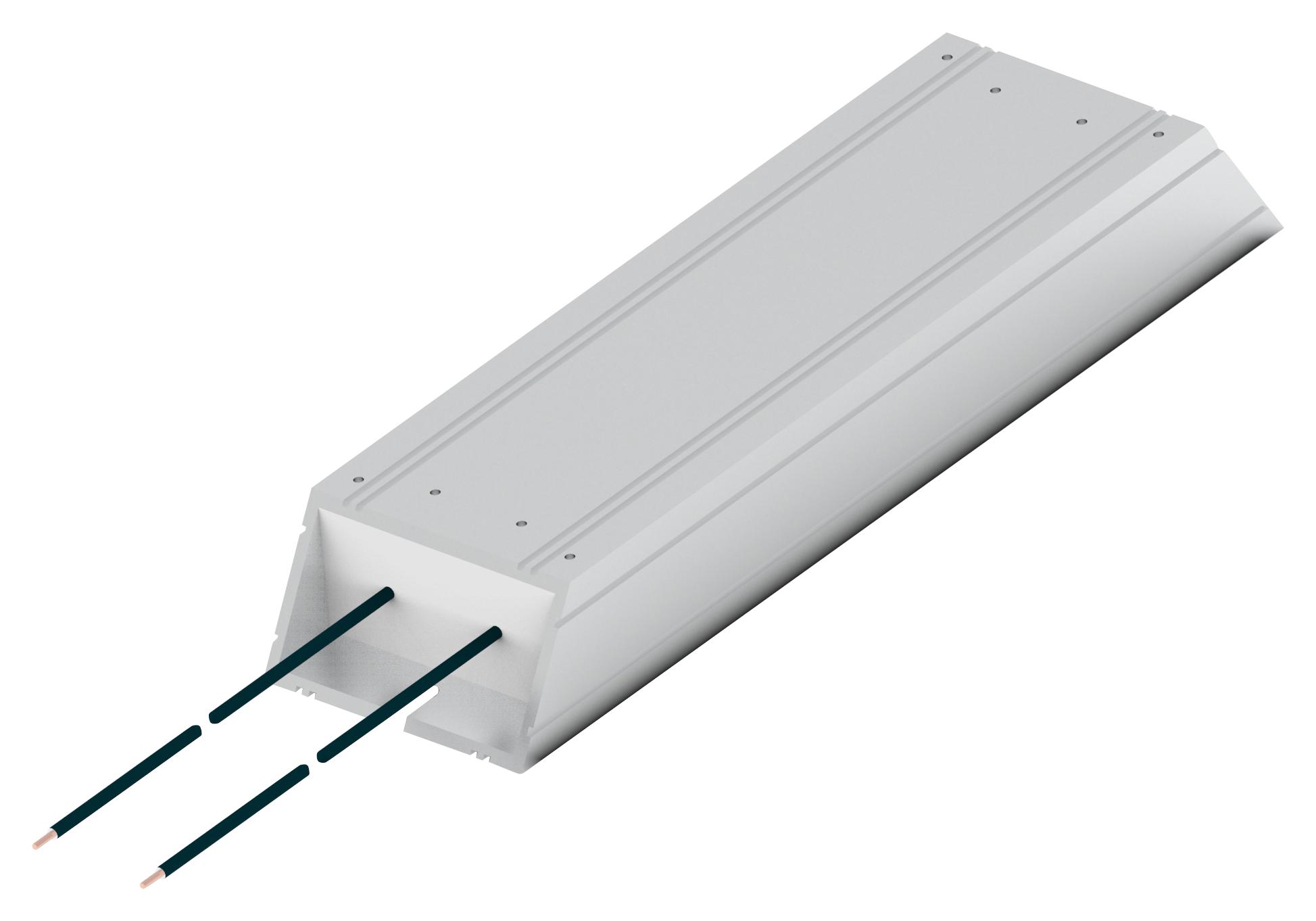

TE CONNECTIVITY HCH215J6R8J Aluminium Braking Resistor
The Aluminium Housed Braking Resistor from TE Connectivity is designed for high-power loading and braking applications, featuring IP54 ingress protection, PTFE insulated flying leads, and a robust aluminium body. Available in various power ratings from 200W to 500W, these resistors withstand overloads and high temperatures up to 375°C. Suitable for drive systems, their wire wound construction and anodized aluminum profile ensure durability and efficient heat dissipation. Testing includes load life, damp heat, and dielectric strength, making them reliable for industrial braking and energy absorption tasks.
TE CONNECTIVITY HCH215J6R8J Aluminium Braking Resistor Specifications:
- Power Rating: 200W to 500W at 40°C
- Maximum Temperature: Up to 375°C
- Resistance Range: 680 to 2200 ohms (higher/lower on request)
- Ingress Protection: IP54
- Flying Leads: PTFE insulated, 300mm standard
- Insulation Resistance: >100MO at 1000VDC
- Dielectric Strength: 3500VAC for 1 minute
- Body Material: Anodized extruded aluminum profile
- Operating Voltage: Up to 1100V
- Resistance Tolerance: +5%, +10%
- Peak Power Overload Testing: Up to 7000W pulses
- Environmental: Load life tested at 45% AR, Damp heat at 40°C/95%
- Dimensions: Length varies with model, approx. 165mm to 335mm, with respective L1 dimensions
- Application: Braking systems, energy absorption, drive systems
Buy the TE Series Braking Resistor: HCH215J6R8J
Order the TE Connectivity aluminium housed braking resistor HCH215J6R8J online today to benefit from superior load handling, high temperature tolerance, and IP54 environmental protection. Perfect for industrial braking and energy absorption applications, this robust resistor features PTFE insulated flying leads and an anodized aluminum profile for durability. With comprehensive testing including load life, damp heat, and dielectric strength, it ensures reliable operation in demanding environments. Enhance your automation system's efficiency by purchasing this high-performance resistor now, available with fast shipping and dedicated support.
Buy TE Connectivity aluminium housed braking resistor HCH215J6R8J now and experience unmatched reliability and performance in industrial drive systems.
