TE CONNECTIVITY HCH335J22RJ Braking Resistor
The Aluminium Housed Braking Resistor from TE Connectivity's Type HCH Series is designed for high power overload absorption in braking applications. Featuring IP54 ingress protection and PTFE insulated flying leads, it has a durable anodized aluminum body capable of withstanding temperatures up to 375°C. These resistors are tested for overload capacity, insulation resistance over 100MΩ, and dielectric strength of 3500VAC. They are suitable for drive systems, and are available in various power ratings from 200W to 500W, with pulse load ratings demonstrating excellent performance in braking cycles.
TE CONNECTIVITY HCH335J22RJ Braking Resistor Specifications:
- Power Ratings: 200W (HCH165), 300W (HCH215), 400W (HCH265), 500W (HCH335)
- Maximum Temperature: 375°C
- Resistance Range: 680-2200Ω depending on model
- Ingress Protection: IP54
- Insulation Resistance: >100MO @ 1000VDC
- Dielectric Strength: 3500VAC for 1 minute
- Lead Length: 300mm PTFE insulated flying leads
- Dimensions (L): 165mm, 215mm, 265mm, 335mm
- Rated Continuous Working Voltage: Up to 1100V
- Tolerance: ±5%, ±10%
- Body Material: Anodized extruded aluminum
- Temperature Rating: Up to 375°C
- Pulse Load Performance: Tested at various duty cycles for highest overload capability

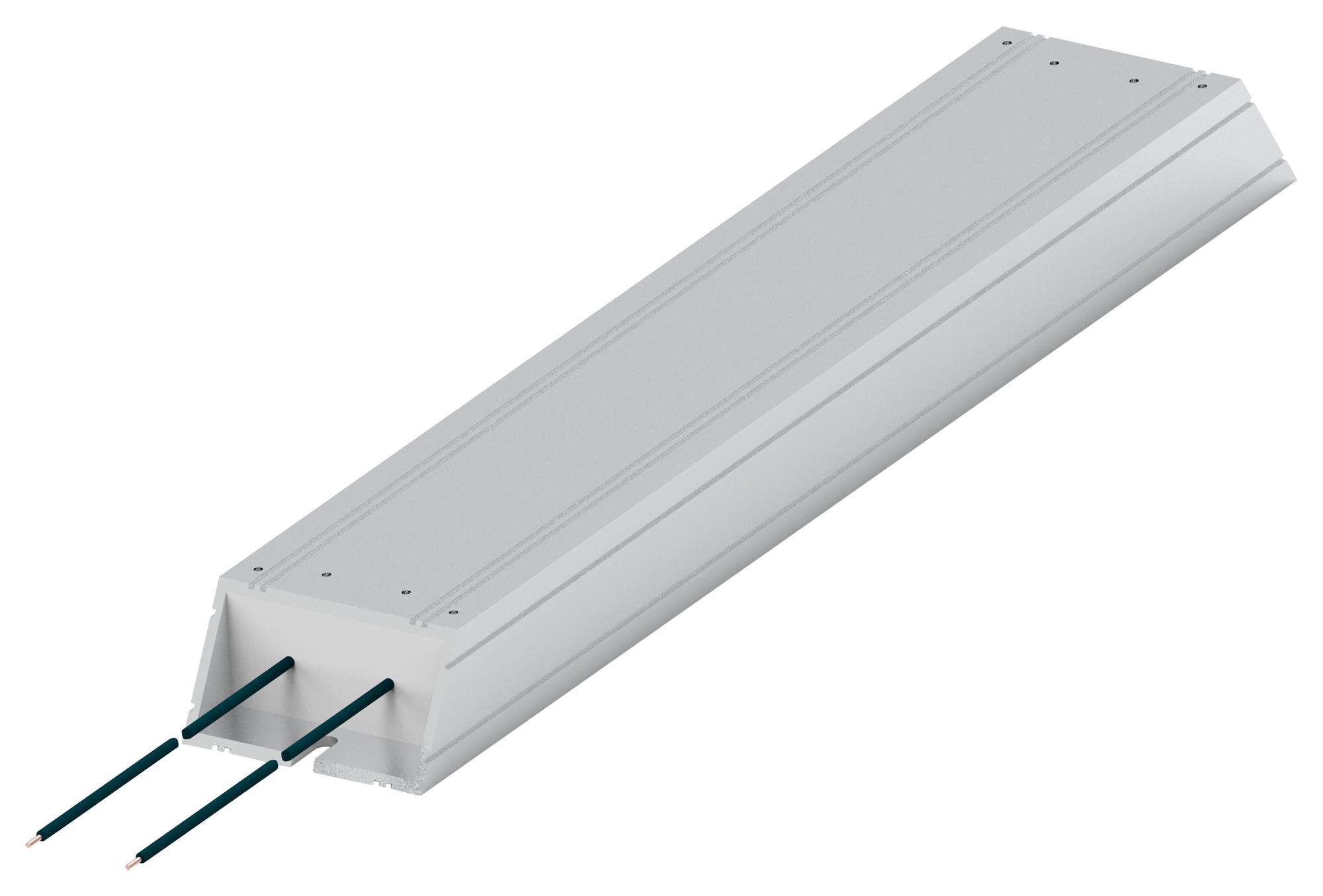

Buy the Buy TE Connectivity Aluminium Housed Braking Resistor Part Number HCH335J22RJ Online
Purchase the TE Connectivity aluminium housed braking resistor online today to ensure reliable overload absorption in your braking and drive applications. Designed with IP54 protection and PTFE insulated leads, this resistor features high power ratings from 200W to 500W, capable of handling temperatures up to 375°C. Its corrosion-resistant aluminum body and tested pulse overload capabilities make it ideal for demanding industrial environments. Get this durable, high-performance resistor delivered directly to your door for seamless integration into your system. Order now for fast, secure online purchasing.
Get TE Connectivity HCH335J22RJ aluminium braking resistor today—designed for high overload capacity and reliable braking performance in industrial systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH335J22RJ?
You can click on the BUY or RFQ button to purchase HCH335J22RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH335J22RJ?
You can download the HCH335J22RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH335J22RJ?
TE CONNECTIVITY
