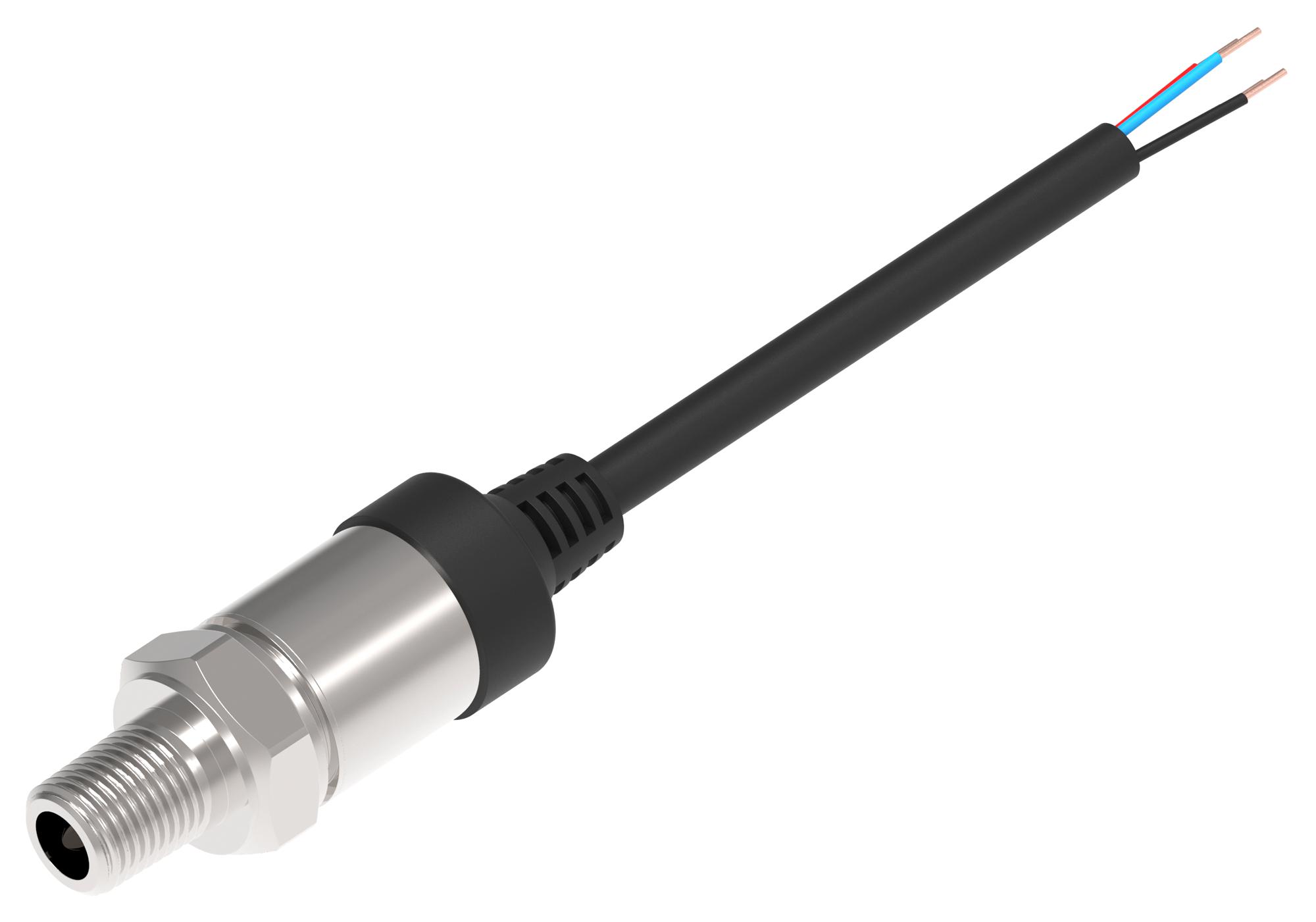

TE CONNECTIVITY M325M00000501KPG Pressure Transducer
The M3200 pressure transducer from TE's Microfused line is built for precise liquid and gas pressure measurement, even in challenging media like contaminated water, steam, and mildly corrosive fluids. Crafted from solid 17-4PH stainless steel, it features a leak-proof 1/4 NPT pipe thread and employs aerospace-derived Microfused technology with silicon piezoresistive strain gauges fused to stainless steel. This rugged, weatherproof sensor covers a wide range of applications including pumps, hydraulic systems, medical gases, and leak detection, offering both digital and analog outputs for versatile measurement needs.
TE CONNECTIVITY M325M00000501KPG Pressure Transducer Specifications:
- Material: 17-4PH stainless steel
- Pressure Range: 0 to 100 psi / 0 to 7 bar up to 0 to 10,000 psi / 700 bar
- Accuracy: 0.28% F.S. (total error band), 0.25% FS long-term stability
- Outputs: 14-bit digital, 11-bit temperature, voltage (0.5-10V), current (4-20mA)
- Temperature Range: -40°C to 125°C; compensated -20°C to 85°C
- Ingress Protection: IP67 (cable), IP66/IP65 (connectors)
- Dimensions: Based on port type, typical for G1/4 or NPT, with robust machined mounting
- Supply Voltage: 5V (digital), 8-30V (analog)
- Response Time: <2ms (mV output), <4ms (mA output)
- Shock/Vibration: 50g/420g per MIL-STD, suitable for harsh environments
Buy the Buy TE M3200 Pressure Transducer Part Number M325M00000501KPG Online
Purchase the TE M3200 pressure transducer online today to ensure accurate pressure measurement in liquids and gases across industrial, medical, and automation applications. Engineered with aerospace-derived Microfused technology, this stainless steel sensor offers high durability, precise digital and analog outputs, and excellent resistance to harsh media such as steam and corrosive fluids. Ideal for OEMs and maintenance professionals, this sensor provides reliable performance, weatherproofing, and wide temperature compatibility, making it the perfect choice for demanding industrial environments seeking long-lasting, precise pressure monitoring.
Get TE M3200 pressure transducer today—designed for precision, durability, and versatile industrial pressure measurement.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY M325M00000501KPG?
You can click on the BUY or RFQ button to purchase M325M00000501KPG from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part M325M00000501KPG?
You can download the M325M00000501KPG datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of M325M00000501KPG?
TE CONNECTIVITY
