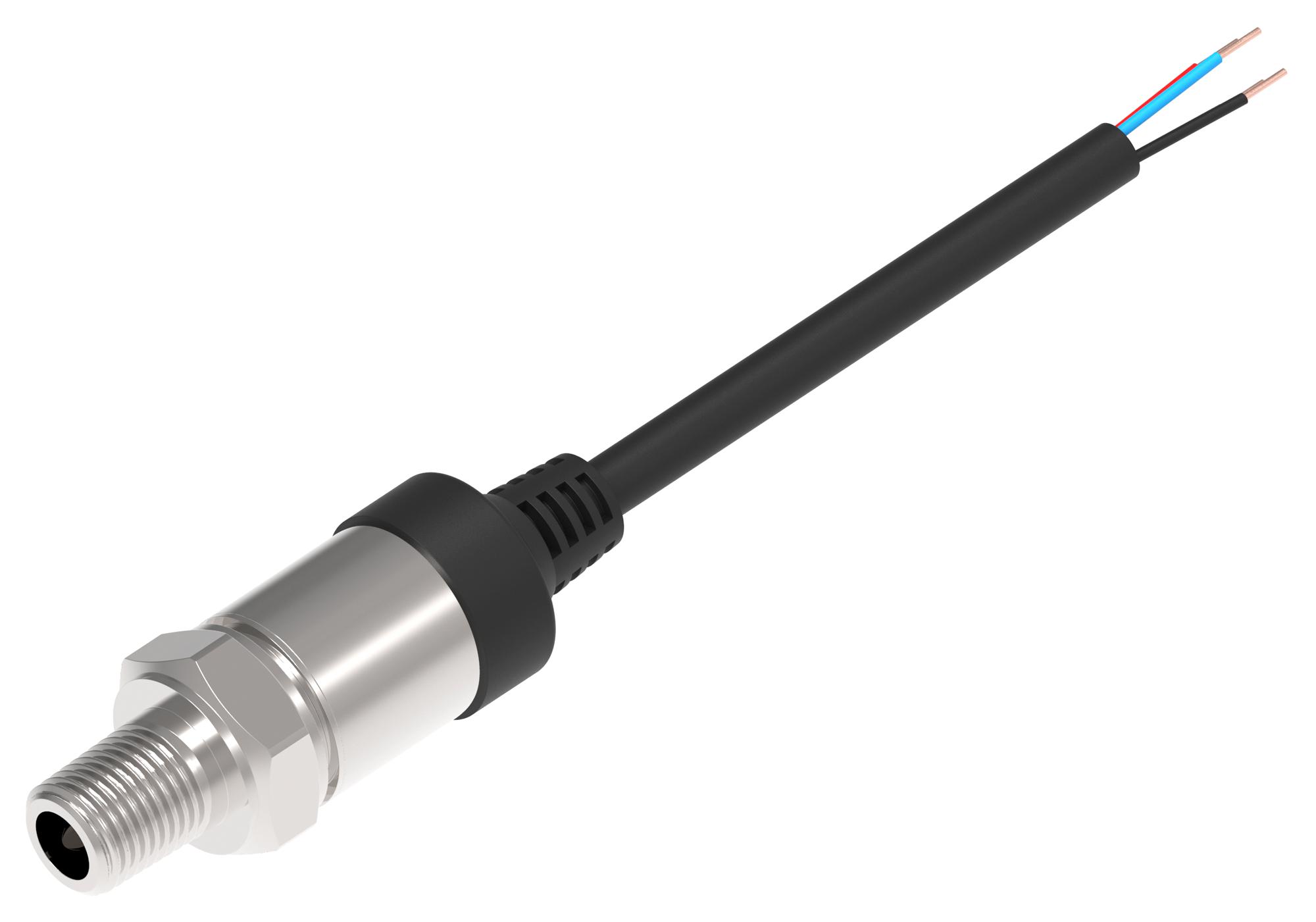

TE CONNECTIVITY M325M000005250PG Pressure Transducer
The M3200 pressure transducer from TE Connectivity features stainless steel construction, digital and analog outputs, and CE compliance. Suitable for liquids and gases, it handles challenging media such as contaminated water, steam, and mild corrosives. Machined from solid 17-4PH stainless steel, it includes a 1/4 NPT sealed system, ensuring durability without welds or organics. Employing Microfused silicon piezoresistive strain gages fused with high-temp glass, it offers stability, media compatibility, and high pressure accuracy. Ideal for industrial and OEM applications, it supports customization to suit various media and measurement needs.
TE CONNECTIVITY M325M000005250PG Pressure Transducer Specifications:
- Material: 17-4PH stainless steel
- Pressure Range: 0 to 100 psi to 0 to 10,000 psi / 0 to 0.7 bar to 700 bar
- Output Options: 14-bit digital, analog voltage 0.5-4.5V, 4-20mA, 0-5V, 0-10V
- Accuracy: 0.28% total error band, 0.5% zero offset, 1.5% total accuracy
- Temperature Range: -40°C to 125°C (operating), -40°C to 125°C (storage), compensated from -20°C to 85°C
- Environmental Ratings: IP67 weatherproof, shock 50g, vibration 20g
- Electrical Power: 5V to 30V for analog, 3.3V for digital, current consumption around 5-35mA
- Burst Pressure: 5x rated pressure, proof pressure 2x rated pressure
- Port Thread: 1/4 NPT standard, with seal options including G1/4, BSPT, SAE, and others
- Certifications: CE, EMI and ESD immunity compliant, EN 55022 Class A & B, IEC 61000 series
- Wetted Materials: Stainless steel, NBR or other O-ring options
- Response Time: under 3ms for digital outputs
- Mounting: Compatible with various connectors including Packard, M12, and form C
Buy the TE Series M3200 Pressure Transducer: M325M000005250PG
Order the TE Series M3200 pressure transducer online today and enhance your industrial measurement systems with robust stainless steel construction, precise digital and analog outputs, and TE’s trusted durability. Perfect for liquids and gases, it’s suitable for demanding environments including contaminated water, steam, and mild corrosive media. With customizable options, CE compliance, and IP67 weatherproof protection, this transducer ensures accurate, stable readings across a broad temperature range. Improve your applications today by choosing this high-performance, durable, and versatile pressure sensing solution, available for quick online purchase.
Buy TE Series M3200 pressure transducer now and experience unmatched reliability and precision in industrial pressure measurement.
