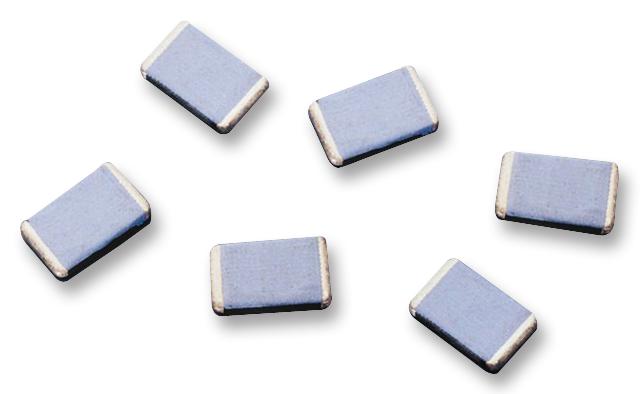

TE CONNECTIVITY RN73C2A8K06BTDF Precision Chip Resistor
The RN73 series comprises high-precision thin film chip resistors designed for industrial, communication, and medical applications. Offering resistance tolerances as low as 0.01% and TCRs down to 5ppm/°C, these resistors are constructed with sputtered layers for maximum stability and performance. Types available range from 0402 to 2512 sizes, with rated power from 0.063W to 0.5W at 70°C. They feature electroplated matte Sn terminations, with consistent physical dimensions for easy placement and reliable electrical performance across operating temperatures from -55°C to +155°C.
TE CONNECTIVITY RN73C2A8K06BTDF Precision Chip Resistor Specifications:
- Sizes: 0402, 0603, 0805, 1206, 1210, 2010, 2512
- Rated Power @ 70°C: 0.063W (0402–0603), 0.125W (0805–1206), 0.25W (2010), 0.5W (2512)
- Resistance Range: from 20Ω to 1.5MΩ depending on size
- Resistance Tolerance: 0.01%, 0.05%, 0.1% (selectable)
- TCR (PPM/°C): 5 or 10 depending on series
- Maximum Operating Voltage: 25V to 150V depending on size
- Maximum Overload Voltage: 50V to 300V depending on size
- Operating Temperature Range: -55°C to +155°C
- Insulation Resistance: >59999MΩ (dry min.)
- Stability: ±0.05%
- Construction includes alumina substrate, NiCr resistor layer, Ag electrodes, and epoxy overcoat
- Package includes reel and tape for automated placement, peel forces between 8g and 80g depending on tape type
- Reflow and wave solder profiles allow up to 3 reflow cycles at 260°C, with specific soldering profiles for reliable assembly
Buy the Connectivity Series RN73 Precision Chip Resistor: RN73C2A8K06BTDF
Enhance your electronic designs with our precision chip resistors offering low TCR, tight tolerance, and excellent stability. Ideal for sensitive industrial, communication, and medical equipment. Available in multiple sizes with reliable soldering and assembly options. Order online today and ensure your project benefits from high-quality, durable resistors that guarantee consistent electrical performance in demanding environments. Trust our proven quality for stability and long-term reliability.
Buy Connectivity RN73 resistors now and experience unmatched reliability and performance for your industrial, communication, and medical electronics.
