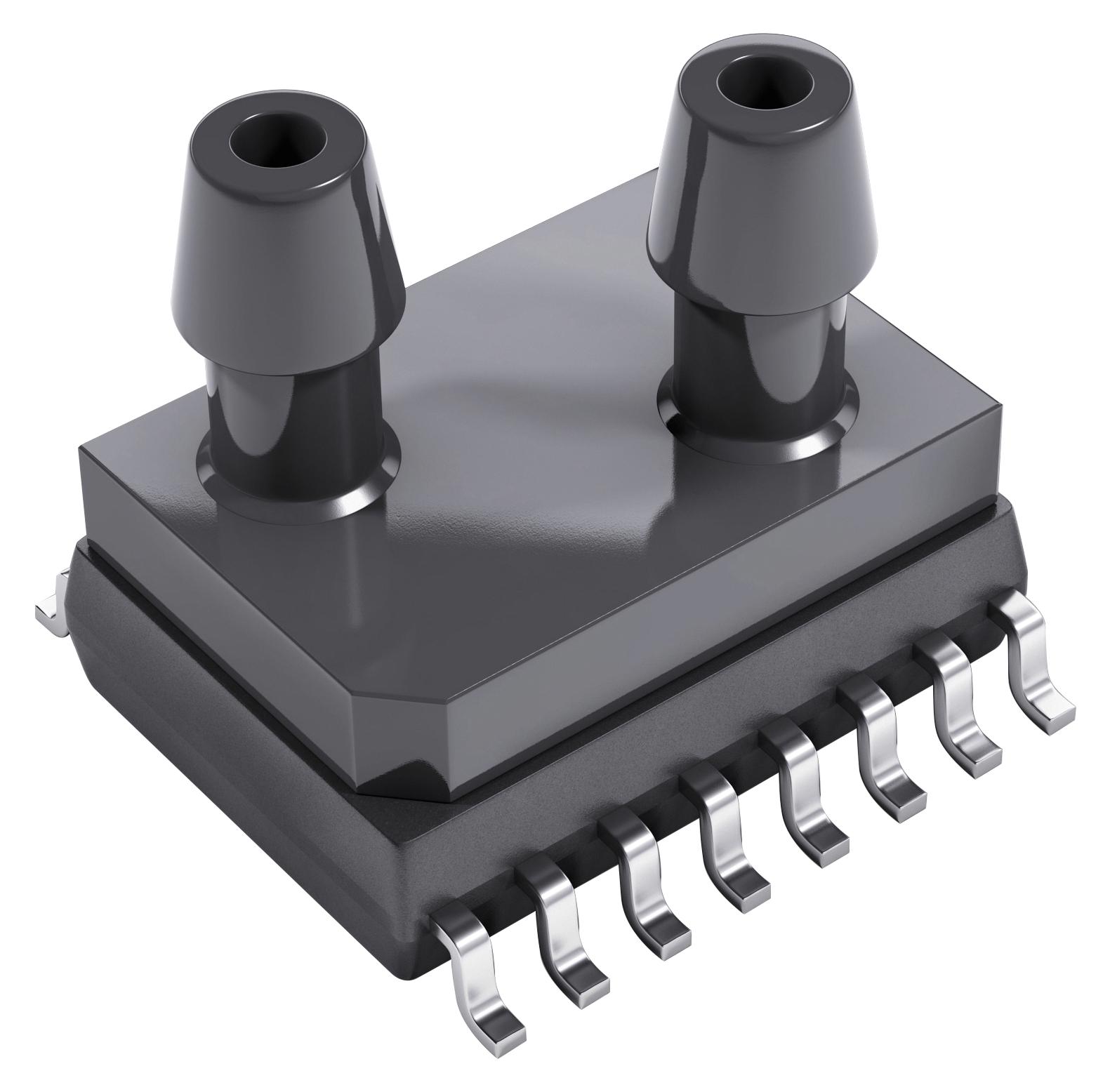

TE CONNECTIVITY SM9235BCES300002 Gage Pressure Sensor
The SM9235 series is a high-precision, factory-calibrated ultra-low pressure sensor designed for accurate gage pressure measurements from 0 to 300 Pa. Encased in a JEDEC standard SOIC-16 package, it offers a dual vertical port configuration, temperature compensation from -20 to 85°C, and a digital I²C interface with a 16-bit resolution. Ideal for applications such as medical ventilators, gas flow instrumentation, HVAC VAV systems, and pneumatic gauges, it features low power consumption, a rapid update rate of 2000 Hz, and a total error band within 1% full scale, ensuring reliable long-term performance.
TE CONNECTIVITY SM9235BCES300002 Gage Pressure Sensor Specifications:
- Supply Voltage: 3.3V typical, 5V max
- Pressure Range: 0 to +300 Pa
- Accuracy: ±1% FS (before Autozero)
- Resolution: 16 Bits
- Update Rate: 2000 Hz
- Temperature Range: -20°C to +85°C
- Power Consumption: 3.9 to 5 mA at 5V, 3.3 mA at 3.3V
- Output Count Range: -26,215 to +26,214 counts
- Total Error Band: within 1% FS after calibration
- Package: SOIC-16 dual vertical porting
- Relative humidity: Dry, compatible with wetted materials including silicon, glass, RTV, gold, aluminum, copper, epoxy
- Reliability Standards: RoHS, REACH, PFOS/PFOA compliant
- Calibration: Factory calibrated with end-of-line testing and system autozero capability
Buy the TE Connectivity Series SM9235 Gage Pressure: SM9235BCES300002
Experience precise and reliable low-pressure measurement with the TE Connectivity SM9235 series. Engineered with factory calibration and temperature compensation, this sensor provides a high-resolution digital output suitable for medical, HVAC, and instrumentation applications. Its compact JEDEC SOIC-16 package allows easy integration into your systems, offering exceptional stability over a broad temperature range. With a rapid update rate of 2000 Hz and a total error within 1% FS after calibration, it's a perfect choice for accuracy-critical environments requiring durable, long-lasting performance. Purchase online today for seamless integration and dependable results.
Get TE Connectivity SM9235BCES300002 today—designed for ultra-low pressure measurement with digital accuracy and long-term stability.
