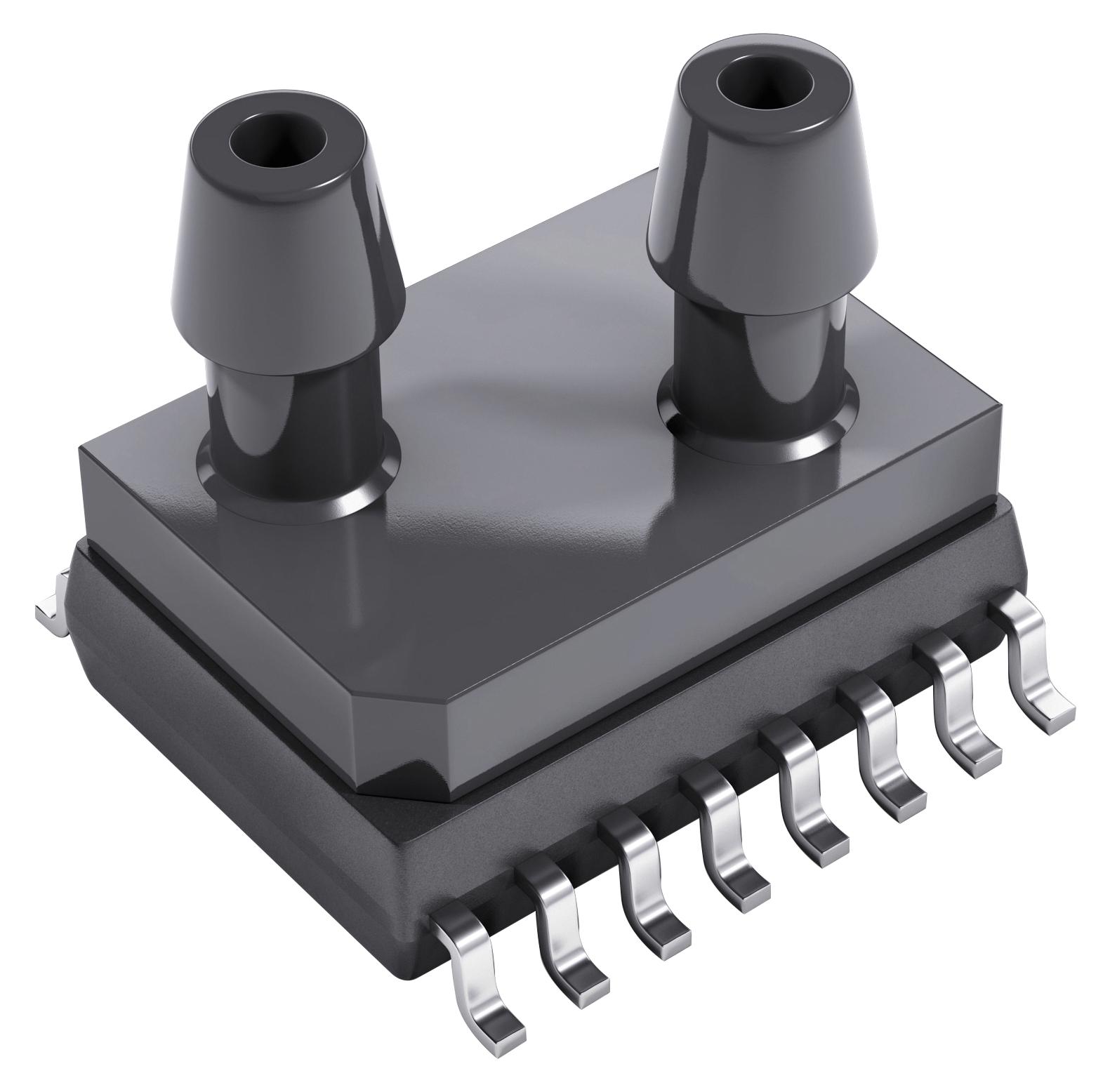

TE CONNECTIVITY SM9236BCES600002 Pressure Sensor
The SM9236BCE-S-600-002 is a high-precision, ultra-low pressure digital sensor ideal for applications such as HVAC, gas flow, and safety cabinets. It features a measurement range of 0 to +600 Pa, operates at a supply voltage of 3.3V or 5V, and provides a 16-bit digital output with a sampling rate of 2000 Hz. The sensor offers temperature compensation from -20°C to 85°C, low power consumption under 5 mA, and is housed in a JEDEC SOIC-16 package for easy integration into electronic systems. It ensures high accuracy with total error band within 1.5% FS after autozero calibration, making it suitable for precise pressure monitoring in critical environments.
TE CONNECTIVITY SM9236BCES600002 Pressure Sensor Specifications:
- Measurement Range: 0 to +600 Pa
- Supply Voltage: 3.3V or 5V
- Digital Output: 16-bit, ±32768 counts
- Sampling Rate: 2000 Hz
- Total Error Band: within 1.5% FS after autozero
- Operating Temperature: -20°C to 85°C
- Power Consumption: typically <5 mA at 5V
- Package: JEDEC SOIC-16 dual vertical porting
- Wetted Materials: silicon, glass, RTV, gold, aluminum, copper, epoxy, stainless steel
- Weight: compact and robust for easy mounting
- Designed for precise pressure measurement in medical, HVAC, and industrial environments.
- Calibration: factory calibrated with temperature compensation, autozero feature available
Buy the TE Connectivity Series SM9000 Ultra-Low Pressure Sensor: SM9236BCES600002
Get your TE Connectivity Series SM9236BCES600002 ultra-low pressure sensor today online and improve your pressure monitoring systems. Designed for high accuracy and stability, this sensor measures from 0 to 600 Pa with a 16-bit digital output, ensuring precise readings for HVAC, gas flow, industrial safety, and other critical applications. It operates on 3.3V or 5V, features temperature compensation from -20°C to 85°C, and offers low power consumption. With a robust JEDEC SOIC-16 package, this sensor guarantees easy integration, long-term stability, and high reliability for demanding environments.
Order your TE Connectivity Series SM9236BCES600002 ultra-low pressure sensor today and enhance your system’s accuracy with reliable pressure measurement.
