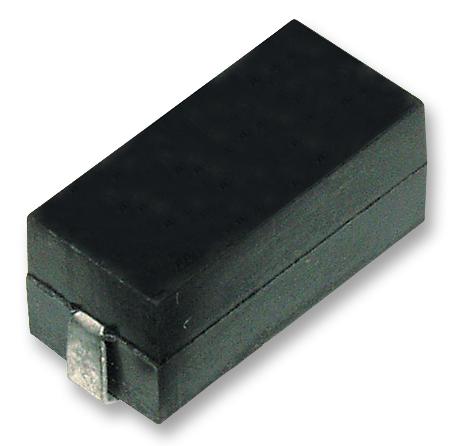

TE CONNECTIVITY SMV1W1M0JT High Voltage Power Resistor
High voltage SMD resistors designed for demanding electrical applications, featuring UL94VO flameproof molded packaging, resistance to sulfuration, heat, and humidity. These metal-glaze power resistors provide stable performance against high surge and pulse overloads, making them ideal for environments requiring reliable high voltage resistance. They are available in various power ratings and resistance ranges from 100KΩ to 10MΩ, with excellent dielectric withstand capabilities. Suitable for surface-mount technology, they comply with industry standards for durability and safety, ensuring optimal performance under extreme conditions.
TE CONNECTIVITY SMV1W1M0JT High Voltage Power Resistor Specifications:
- Power Ratings: 1W, 2W, 3W
- Resistance Range: 100KΩ to 10MΩ
- Resistance Tolerance: ±5% (J), ±1% (F)
- Max Surface Temp: 275°C
- Dielectric Withstanding Voltage: AC 1000V for 1min
- Insulation Resistance: 10,000 MΩ at DC 500V
- Pulse Load Capability: IEC 61000-4-5 surge withstands 1.2/50 μs and 10/700 μs pulses
- Temperature Range: -65°C to +275°C
- Mechanical Stability: Resistance to soldering heat (270°C for 10 seconds)
- Ambient Temperature Testing: -65°C to +275°C
- Rated Working Voltage: Up to 3500V depending on resistance value
- Environmental Resistance: Sulfur resistant, flameproof, humidity resistant
- Dimensions: Refer to detailed specifications with maximum length 40.3mm depending on power rating
Buy the TE Connectivity Series SMV High Voltage Resistors: SMV1W1M0JT
Purchase the TE Connectivity SMV high voltage power resistor online today and benefit from reliable performance under extreme electrical conditions. Featuring UL94VO flameproof packaging, resistance to sulfur, heat, and humidity, these resistors are ideal for demanding environments requiring high surge and pulse withstand capabilities. Available in various power ratings and resistance ranges, they provide excellent dielectric withstand and mechanical stability. Buy now to ensure your high voltage applications are protected with top-quality, durable, and compliant resistors designed for longevity and safety.
Get TE Connectivity SMV1W1M0JT high voltage SMD resistor today—built for precision, durability, and high surge resistance in demanding applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY SMV1W1M0JT?
You can click on the BUY or RFQ button to purchase SMV1W1M0JT from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part SMV1W1M0JT?
You can download the SMV1W1M0JT datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of SMV1W1M0JT?
TE CONNECTIVITY
