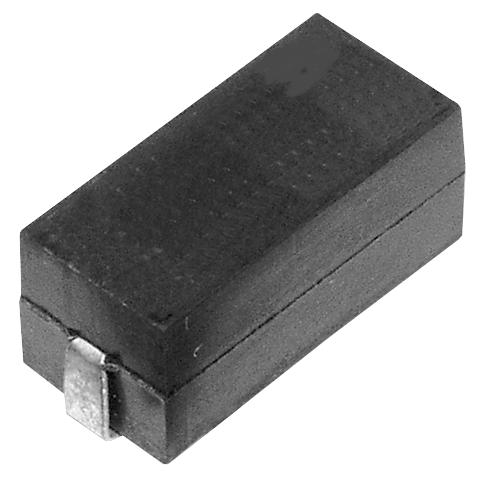

TE CONNECTIVITY SMW5R30JT Surface Mount Power Resistor
The SM Series SMD Moulded Power Resistor from TE Connectivity offers low-profile, high-reliability design suitable for power circuitry. Available in 2, 3, or 5 Watts with flameproof UL94V0 coating, it features welded construction that withstands high manufacturing temperatures. Its flexible tinned copper terminations ensure reliable solder joints. The resistor handles operating voltages up to 500V, with resistance values ranging from 10Ω to 2MΩ, ±1% or 5% tolerance. Its environmental resistance and thermal capabilities make it ideal for compact, high-power electronic circuits.
TE CONNECTIVITY SMW5R30JT Surface Mount Power Resistor Specifications:
- Power Ratings: 2W, 3W, 5W @ 25°C
- Resistance Range: 10Ω to 2MΩ
- Resistance Tolerance: 1% or 5%
- Maximum Operating Voltage: 300V (2W), 500V (3W, 5W)
- Temperature Coefficient: ±200ppm/°C (wire), ±100ppm/°C (metal film)
- Dimensions (mm): Length 40-73, Width 14-17, Height 3.55-17
- Welding Temperature: 235°C for 2 sec, Resistance to Soldering Heat: 270°C for 10 sec
- Environmental Resistance: Load Life 1000 hrs at 70°C, Humidity 500 hrs at 90-95% RH
- Flameproof Coating: UL94V0
- Construction: Fully welded, low profile case with reliable solder joints
Buy the TE Connectivity SM Series SMD Power Resistor – Reliable Power Component for Industrial Applications
Order the TE Connectivity SM Series Surface Mount Power Resistor online now and enjoy a reliable, high-performance component engineered for demanding industrial applications. With capacities up to 5W, resistance values from 10Ω to 2MΩ, and flameproof UL94V0 coating, this resistor ensures safety and durability. Its welded construction withstands high temperatures during manufacturing processes, providing long-term stability. Perfect for power circuitry in compact electronic devices, it offers excellent environmental resistance, precise resistance tolerance, and robust solder joints. Purchase online today for rapid delivery and proven quality.
Get TE Connectivity SM Series power resistor today—designed for high reliability and durable performance in industrial electronic circuits.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY SMW5R30JT?
You can click on the BUY or RFQ button to purchase SMW5R30JT from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part SMW5R30JT?
You can download the SMW5R30JT datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of SMW5R30JT?
TE CONNECTIVITY
