TE CONNECTIVITY SP24 Linear Position Sensor

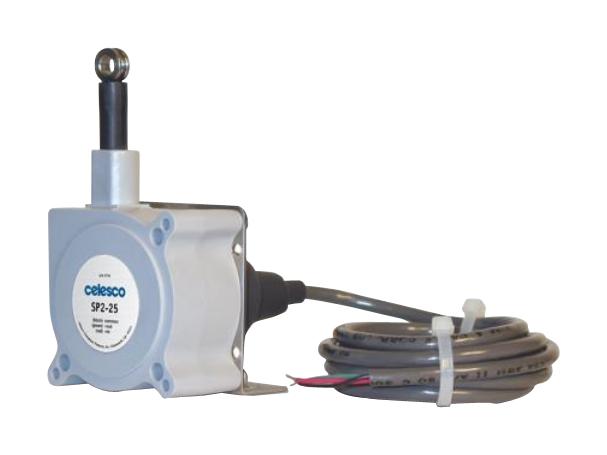

The SP2 String Pot from Celesco is a compact, water-resistant linear position sensor utilizing a flexible cable, spring-loaded spool, and potentiometer. Designed for tight spaces and high cycle applications, it features a 40-inch electrical cable with watertight strain relief, multiple measurement ranges from 0-4.75 to 0-50 inches, and a rugged polycarbonate enclosure. This reliable sensor provides high accuracy, repeatability, and resolution, making it ideal for industrial and OEM applications requiring precise linear measurement in harsh environments.
TE CONNECTIVITY SP24 Linear Position Sensor Specifications:
- Full Stroke Range Options: 0-4.75, 0-12.5, 0-25, 0-50 inches
- Output Signal: voltage divider (potentiometer)
- Accuracy: +0.25 to +1.00% (see part no. above)
- Repeatability: + 0.05% full stroke
- Resolution: essentially infinite
- Measuring Cable: 0.019-in. dia. nylon-coated stainless steel
- Measuring Cable Tension: 7 oz. (1.9 N)
- Maximum Cable Acceleration: 425% of full stroke
- Enclosure Material: polycarbonate
- Sensor: plastic-hybrid precision potentiometer
- Weight: 5 oz. (without mounting bracket)
- Input Resistance: 10K ohms, +10%
- Power Rating: 2.0 watts at 70°F, derated to 0 at 250°
- Recommended Max Input Voltage: 30 V (AC/DC)
- Output Signal Change Over Full Stroke Range: 94% +4% of input voltage
- Electrical Connection: 40-inch long, shielded, 24 gauge cable
- Operating Temperature: 0° to 160°F (-18° to 71°C)
- Vibration Resistance: up to 10 g to 2000 Hz
Buy the Celesco SP24 U–Reliable Linear Position Sensor for Industrial Applications
Purchase the Celesco SP24 online today and benefit from its rugged design, high accuracy, and multiple stroke options. This compact, water-resistant sensor with a 40-inch cable is ideal for demanding industrial and OEM use. Its reliable potentiometer and harsh environment tolerance ensure consistent, precise linear measurements in tight spaces. Enjoy quick delivery and seamless online ordering to enhance your manufacturing or automation projects with a proven, durable position sensing solution.
Buy Celesco SP24 now and experience unmatched reliability and performance in precise linear measurement for industrial and OEM applications.
