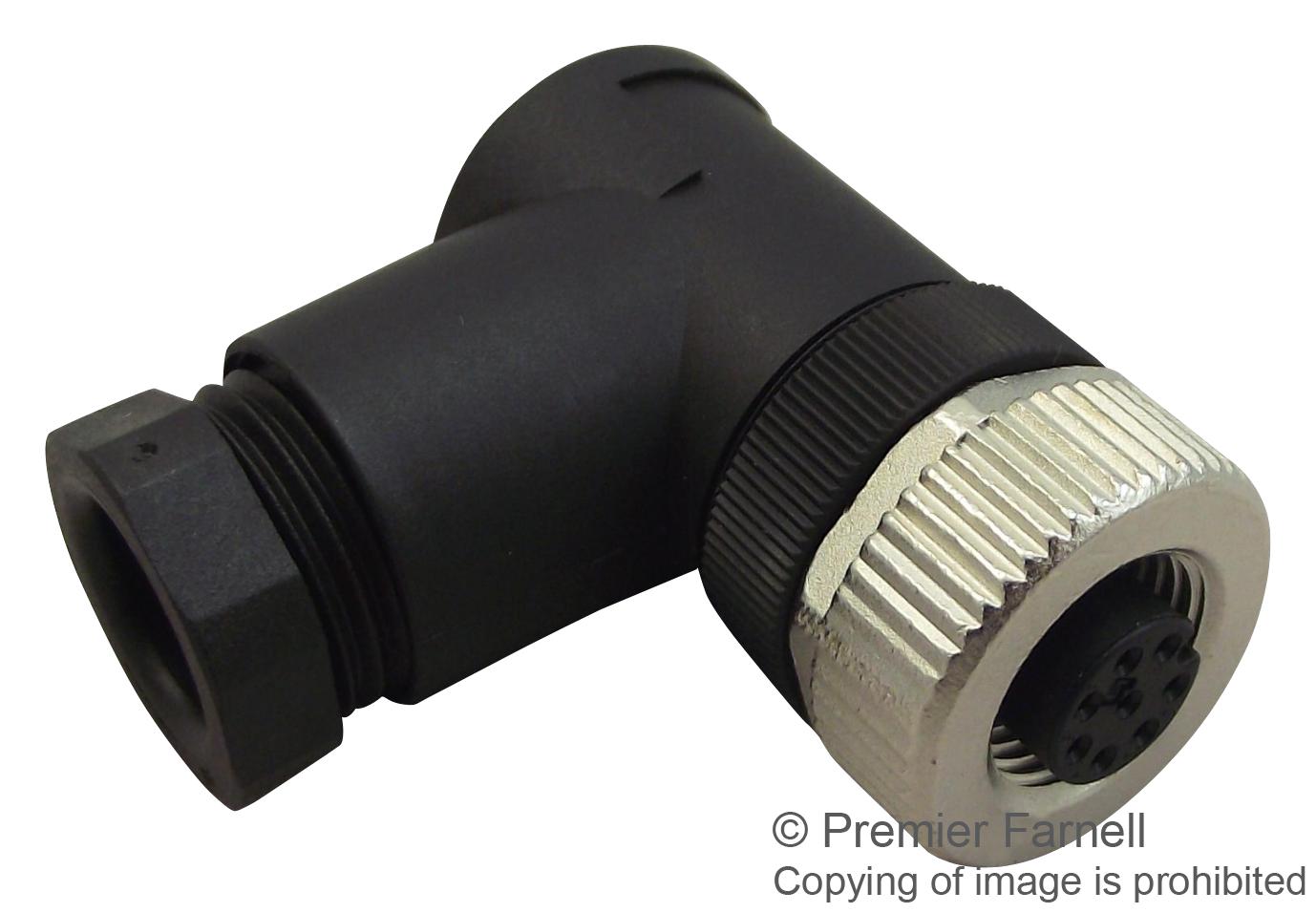

TE CONNECTIVITY T4112401051000 Industrial M12 Connector
The T4112401051000 is an angled, shielded M12 female connector designed for industrial automation applications. It features a robust construction with IP67/IP68 protection, accommodating 5-pole configurations. Suitable for environments requiring high reliability and resistance to dust, water, and chemicals, it supports high-speed data transfer up to 10 Gb/s when used with compatible shielded cables. The connector operates over temperatures ranging from -25°C to +85°C, with optional silver-plated contacts for enhanced conductivity and durability in demanding industrial environments.
TE CONNECTIVITY T4112401051000 Industrial M12 Connector Specifications:
- Connector Type: M12 Female, Angled, Shielded
- Number of Poles: 5
- Material: Plastic body with optional silver-plated contacts
- Protection Class: IP67/IP68
- Operating Temperature: -25°C to +85°C
- Max Voltage: 250V
- Current Rating: 4A per pin
- Cable Compatibility: Suitable for shielded cables up to 10 Gb/s data transfer
- Body Material: Plastic (metal option available)
- Cable Outlet Type: PG7 or PGO
- Grade: Pollution Degree 3
- Application: Industrial sensors, automation networks, high-speed Ethernet
- Compliance: IEC 61076-2-101/104
- Environmental Resistance: Dust, water, chemical resistance
- Optional contacts: Silver-plated for better conductivity
Buy the TE Connectivity T4112401051000 – Reliable M12 Connector for Industrial Applications
Enhance your industrial automation setup with the TE Connectivity M12 angled, shielded female connector. Designed for high durability, IP67/IP68 protection, and temperature resistance, this 5-pole connector ensures reliable communication in demanding environments. Its high-speed data support up to 10 Gb/s makes it perfect for sensor connections, automation networks, and industrial communication systems. Easy to install and compatible with shielded cables, this connector is a vital component for modern factory automation, offering long-term performance and environmental resilience.
Buy TE Connectivity T4112401051000 now and experience unmatched reliability and high-speed data transfer in industrial automation environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4112401051000?
You can click on the BUY or RFQ button to purchase T4112401051000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4112401051000?
You can download the T4112401051000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4112401051000?
TE CONNECTIVITY
