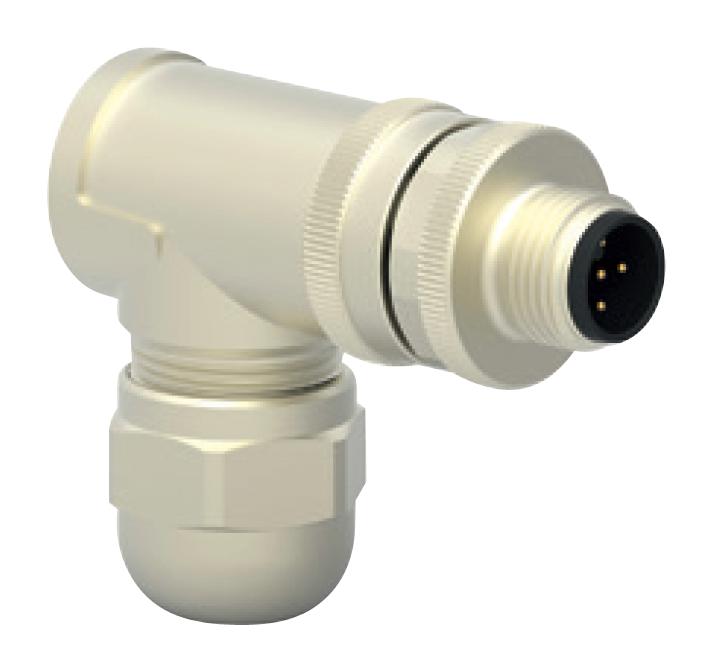

TE CONNECTIVITY T4113011031000 M12 Connectors
The M12 angled field installable connector, available in unshielded and shielded variants, provides reliable, environmental protection connections for industrial sensors, automation, and communication systems. Its compact design supports high data transmission of up to 10 Gb/s, making it suitable for industrial Ethernet, automation, and control applications. Operating within a temperature range of -25°C to +85°C, it features robust construction with options for gold or silver contact plating, ensuring durability and long-lasting performance in demanding environments. Ideal for factory automation, machine communication, and industrial networking equipment.
TE CONNECTIVITY T4113011031000 M12 Connectors Specifications:
- Operating Temperature: -25°C to +85°C
- Data Transmission Speed: Up to 10 Gb/s
- Contact Plating: Gold or Silver upon request
- Number of Poles: 2, 3, 4, 5, 8, 12
- Connector Types: Angled, Unshielded, Shielded
- Mounting: Field installable
- Ingress Protection: IP67/IP68
- Current Rating per Pin: 4A (4-5 pins), 2A (8-12 pins)
- Support for Gigabit Ethernet
- Material: Plastic and Metal options available
- Compliance: IEC 61076-2-101, 61076-2-104
- Application: Industrial sensors, automation, robotics, industrial networking
Buy the TE Connectivity Series M12 X-Coded: T411301103000
Experience dependable high-speed data transmission with TE Connectivity M12 connectors, designed for industrial automation, sensors, and control systems. Built to operate over a temperature range from -25°C to +85°C, these connectors feature IP67/IP68 environmental protection and support up to 10 Gb/s. Whether you need angled or straight variants, shielded or unshielded, TE’s M12 connectors are easy to install and ensure long-lasting durability in demanding environments. Upgrade your factory automation and industrial networking with confidence today.
Get TE Connectivity T411301103000 today—built for high-speed industrial networking and reliable machine communication.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4113011031000?
You can click on the BUY or RFQ button to purchase T4113011031000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4113011031000?
You can download the T4113011031000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4113011031000?
TE CONNECTIVITY
