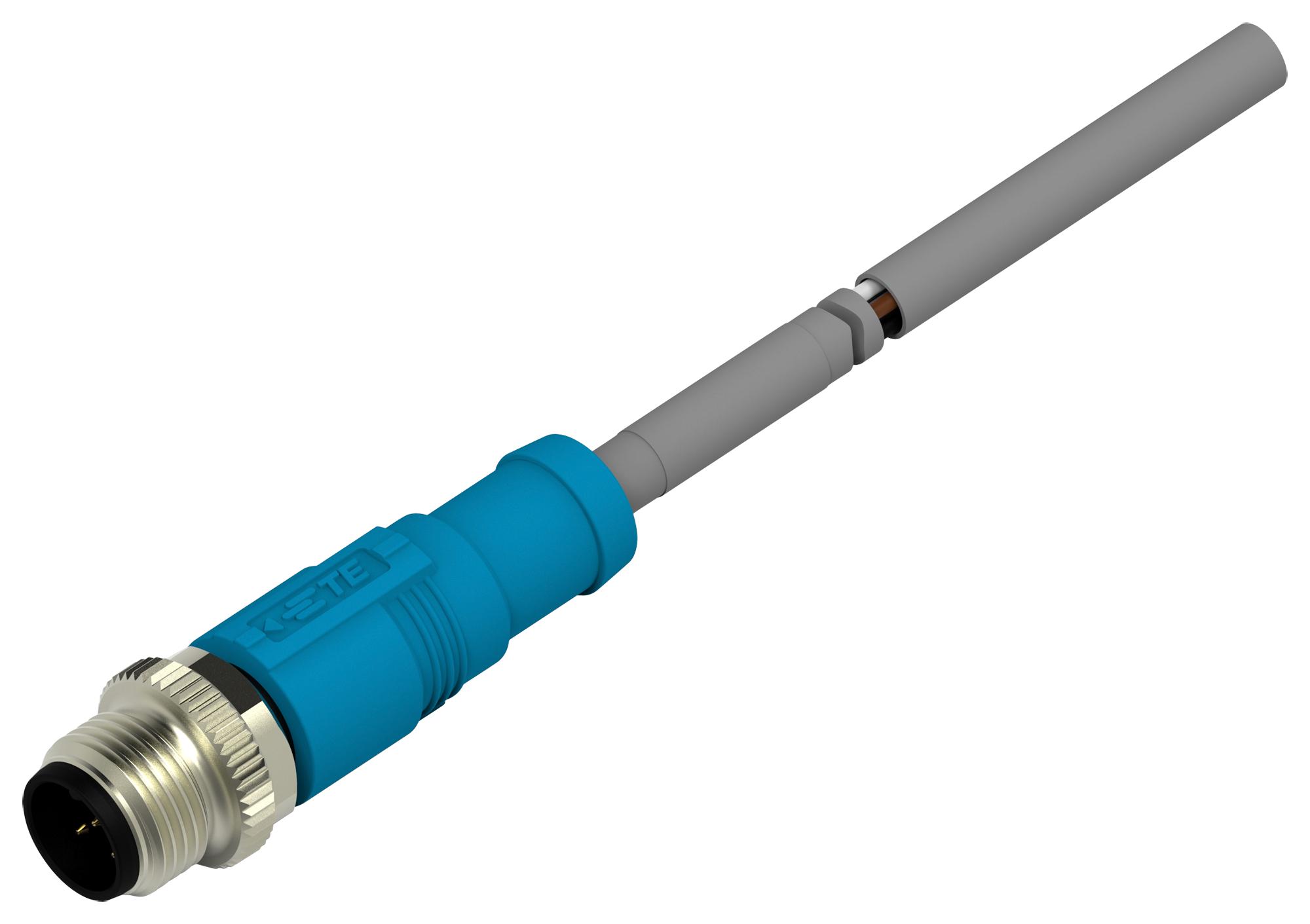

TE CONNECTIVITY T4151120005003 Sensor/Actuator Cable Assembly
This M12 A-CODE male straight cable assembly is designed for sensor and actuator connections, featuring five positions, a straight plug, and a 1500 mm cable length. It is made with copper alloy conductors, rated for 60 VDC, and includes a shielded design for environmental protection. The assembly is compliant with EU RoHS, ELV directives, and REACH standards, ensuring safety and environmental responsibility. Suitable for industrial automation, it offers robust mechanical mounting, wire compatibility with 22 AWG, and corrosion-resistant nylon housing, making it ideal for reliable, long-term sensor and actuator applications.
TE CONNECTIVITY T4151120005003 Sensor/Actuator Cable Assembly Specifications:
- Connector Type: M12 A-CODE Male Straight
- Number of Positions: 5
- Cable Length: 1500 mm
- Wire Size: 22 AWG
- Housing Material: GF Nylon
- Conductor Material: Copper Alloy
- Cable Exit Angle: Straight
- Operating Voltage: 60 VDC
- Cable Type: PUR Pigtail
- Shielded: Yes
- Application Type: Sensor/Actuator
- Mounting Angle: Straight
- Environmental Protection: IP67 (implied via shielded design)
- Certifications: EU RoHS, ELV, REACH compliance
Buy the TE Series M12 Sensor/Actuator Cable: T4151120005
Order the TE Series sensor and actuator cable assembly online today for seamless integration into your automation system. Featuring a robust 1500 mm length, copper conductors rated for 60 VDC, and shielded protection, this assembly ensures reliable data and power transmission. Its straight M12 plug type simplifies connections, while the durable nylon housing provides resistance to environmental factors. Ideal for industrial settings, this cable assembly meets strict compliance standards and offers high-performance connectivity suited for demanding sensor and actuator applications in automation and manufacturing environments.
Get TE Series M12 Sensor/Actuator Cable today—built for industrial automation and reliable sensor connections.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4151120005003?
You can click on the BUY or RFQ button to purchase T4151120005003 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4151120005003?
You can download the T4151120005003 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4151120005003?
TE CONNECTIVITY
