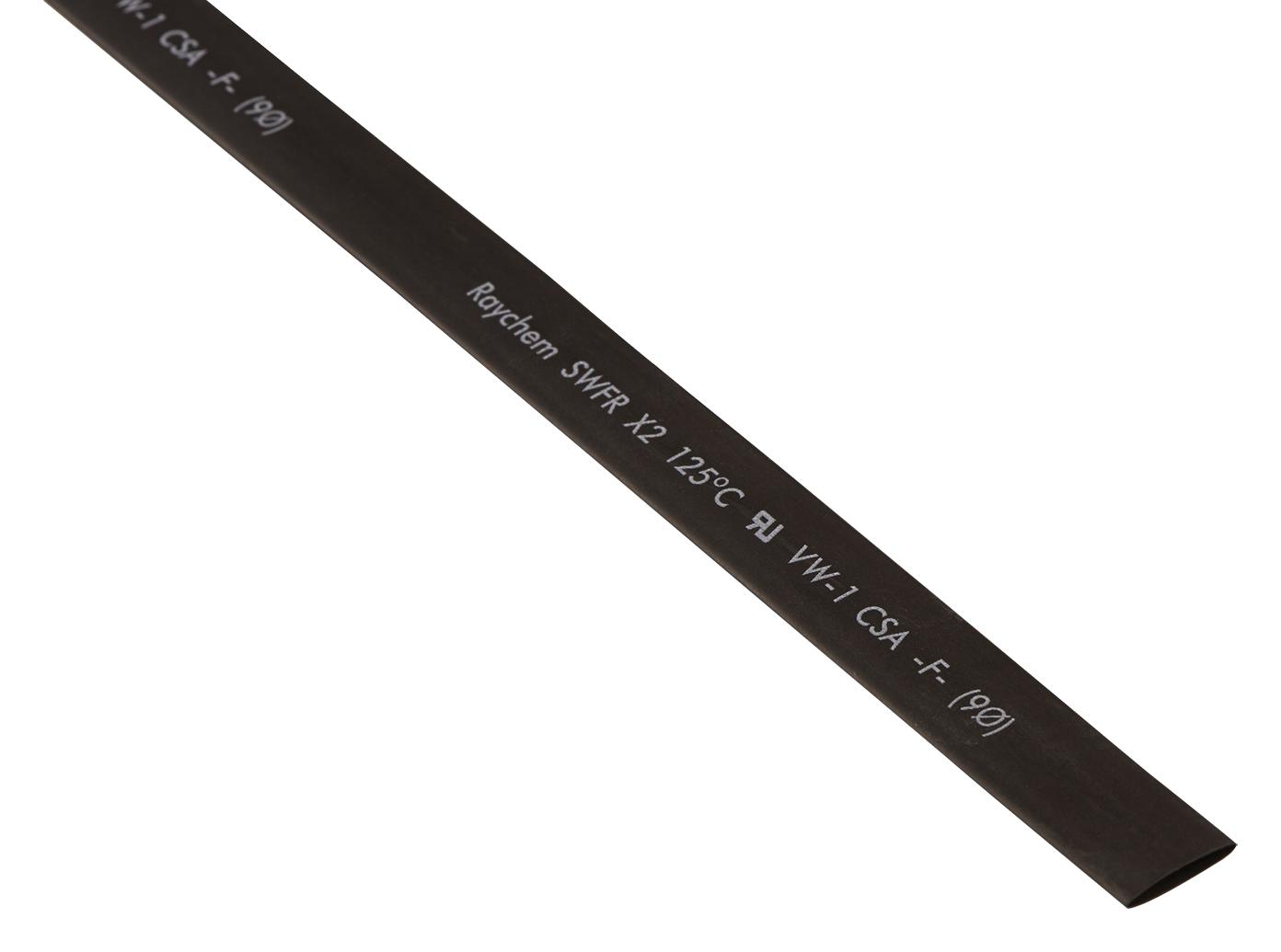

TE CONNECTIVITY X2150SPSM Heat-shrink tubing
X2 heat-shrinkable tubing by Raychem is a highly flame-retardant, environmentally friendly, halogen-free solution designed for insulation and protection in electrical wiring. Made from a crosslinked polyolefin, it offers low recovery temperature, excellent flexibility, and high thermal stability. Suitable for bundling wires, marking, and electronic component insulation, X2 tubing is UL and CSA-recognized, rated at 125°C and 600 V. It provides fast installation, reliable long-term connections, and superior resistance to physical abuse and flame, making it ideal for various commercial electrical applications.
TE CONNECTIVITY X2150SPSM Heat-shrink tubing Specifications:
- Minimum shrink temperature: 70°C
- Full recovery temperature: 90°C
- Continuous operating temperature: -30°C to 125°C
- Dimensions vary by size; inside diameter from 1.0 mm to 30.0 mm, wall thickness from 0.25 mm to 0.56 mm, fully recovered diameter from 0.44 mm to 15.0 mm
- Color: Black
- Material: Crosslinked polyolefin
- Flame-retardant: UL VW-1, CSA OFT rated
- Rated Voltage: 600 V
- Temperature Rating: Up to 125°C
- Packaging: Spools
- Markings: UL, CSA, Japan -F- on labels
Buy the Buy Raychem X2 Part Number X2150SPSM Online
Purchase Raychem X2 heat-shrink tubing online for quick, dependable insulation and bundling of electrical wires. This flame-retardant, halogen-free tubing is designed for easy installation, offering excellent flexibility and thermal stability. Suitable for a wide range of temperatures up to 125°C, it provides long-term reliability and physical abuse resistance. Perfect for electrical applications requiring UL and CSA recognition, X2 tubing ensures safety and durability in industrial, commercial, and electronic projects. Buy now to ensure your wiring solutions are protected and compliant.
Order your Raychem X2 heat-shrink tubing today and enjoy reliable insulation and protection for complex electrical wiring projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY X2150SPSM?
You can click on the BUY or RFQ button to purchase X2150SPSM from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part X2150SPSM?
You can download the X2150SPSM datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of X2150SPSM?
TE CONNECTIVITY
