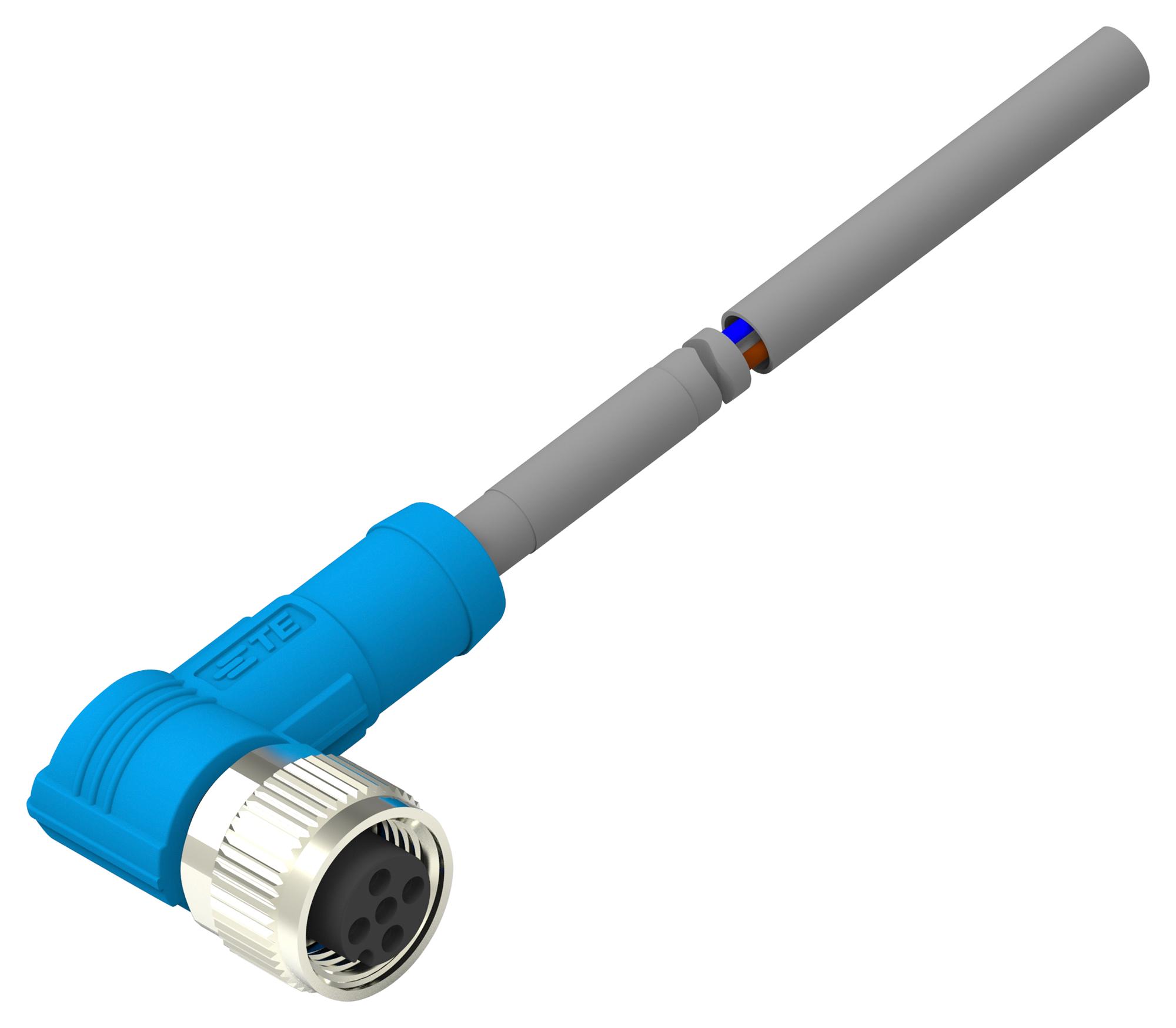

TE CONNECTIVITY T4151420004005 M12 Sensor Actuator Cable
The M8/M12 cable assembly designed for sensor and actuator applications features 4 positions, A keying, a right-angle receptacle, and an M12 pigtail connector. Crafted with PVC insulation, copper alloy contacts, and a gray cable jacket, this shielded assembly ensures reliable data transfer and environmental protection for industrial automation systems. Operating at 250 VDC with a 4A current rating, it supports a cable length of 5000 mm, making it ideal for demanding applications that require durable, high-performance connections in industrial environments.
TE CONNECTIVITY T4151420004005 M12 Sensor Actuator Cable Specifications:
- Connector Type: Receptacle
- Number of Positions: 4
- Keying: A
- Cable Type: PVC Insulated, Shielded
- Cable Jacket Color: Gray
- Cable Exit Angle: Right Angle
- Environmental Protection: Yes
- Insulation Material: PVC
- Conductor Material: Copper Alloy
- Contact Current Rating: 4A
- Operating Voltage: 250 VDC
- Cable Length: 5000 mm
- Wire Size: 22 AWG
- Housing Material: GF Nylon
- Mounting Angle: Right Angle
- Screw & Hole Thread Size: Not specified
- Packaging Method: Box
- Certifications: EU RoHS, China RoHS, EU ELV, REACH compliant
Buy the TE Series M12 Sensor Actuator Connectors: T4151420004-005
Purchase the TE Series M12 Sensor Actuator Cable T4151420004-005 online now to secure a high-quality, reliable connection solution for industrial automation. This 4-position, shielded cable with a right-angle receptacle ensures durability and high performance in demanding environments. Its PVC insulation and copper alloy contacts support operating voltages of 250 VDC and a 4A current rating, making it ideal for sensor and actuator applications. With a cable length of 5000 mm, it offers versatility and convenience for various industrial setups. Don't wait—order today for dependable, professional-grade industrial connectivity.
Order your TE Series M12 Sensor Actuator Connectors T4151420004-005 today and ensure reliable industrial connections with durable, shielded design and high voltage capacity.
