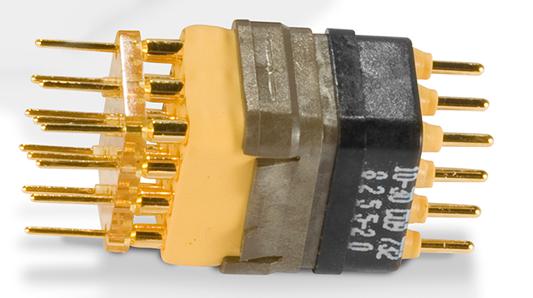

TE CONNECTIVITY ZPF000000000100306 Modular Aerospace Connector
The Deutsch DMC-MD series are highly versatile, modular connectors designed for aerospace, defense, and marine applications. Featuring EN4165, ARINC 809, and BACC65 standards, these lightweight, reliable connectors support multiple modules and exchangeable components. Constructed with durable composite housings, gold-plated contacts, and environmental sealing, they offer excellent vibration resistance, high current ratings, and a broad temperature range from -55°C to +175°C. Ideal for aircraft interior systems, these connectors enable flexible configurations, quick installation, and long-lasting durability in demanding operational conditions.
TE CONNECTIVITY ZPF000000000100306 Modular Aerospace Connector Specifications:
- Housing Material: Composite, nickel plated
- Modules: Thermoplastic and fluoronated silicone
- Crimp Contacts: Copper alloy, plated gold over nickel
- Temperature Range: -55°C to +175°C
- Vibration Resistance: 20 g
- Durability: 500 mating cycles
- Salt Spray Resistance: 500 hours
- Interfacial Sealing: 1.1 x 10^8 bar
- Insulation Resistance: 5000 MQ
- Contact Current Ratings: Size 24: 3A, Size 23: 5A, Size 20: 7.5A, Size 16: 13A, Size 12: 23A, Size 8: 46A
- EMI Shielding Attenuation: 50 dB at 100 MHz, 30 dB at 1000 MHz
- Weight: Receptacle around 0.015 lbs, plug approximately 0.009 lbs
- Design Standards: EN4165, ARINC 809, BACC65
Buy the Buy Deutsch DMC Series Connector Part Number ZPF000000000100306 Online
Purchase the Deutsch DMC Series modular aerospace connectors part number ZPF000000000100306 online today to enjoy fast shipping and competitive pricing. These high-quality connectors are engineered for demanding aerospace, defense, and marine environments, offering maximum durability, flexibility, and ease of installation. Compatible with EN4165, ARINC 809, and BACC65 standards, they provide a secure, environmentally sealed connection, supporting high current ratings and extended operational lifespan. Trust TE Connectivity’s innovative designs to meet your critical connection needs with precision and reliability in the most challenging conditions.
Order your Deutsch DMC Series connector part number ZPF000000000100306 today and ensure your aerospace and defense projects benefit from robust, reliable connectivity solutions.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY ZPF000000000100306?
You can click on the BUY or RFQ button to purchase ZPF000000000100306 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part ZPF000000000100306?
You can download the ZPF000000000100306 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of ZPF000000000100306?
TE CONNECTIVITY
