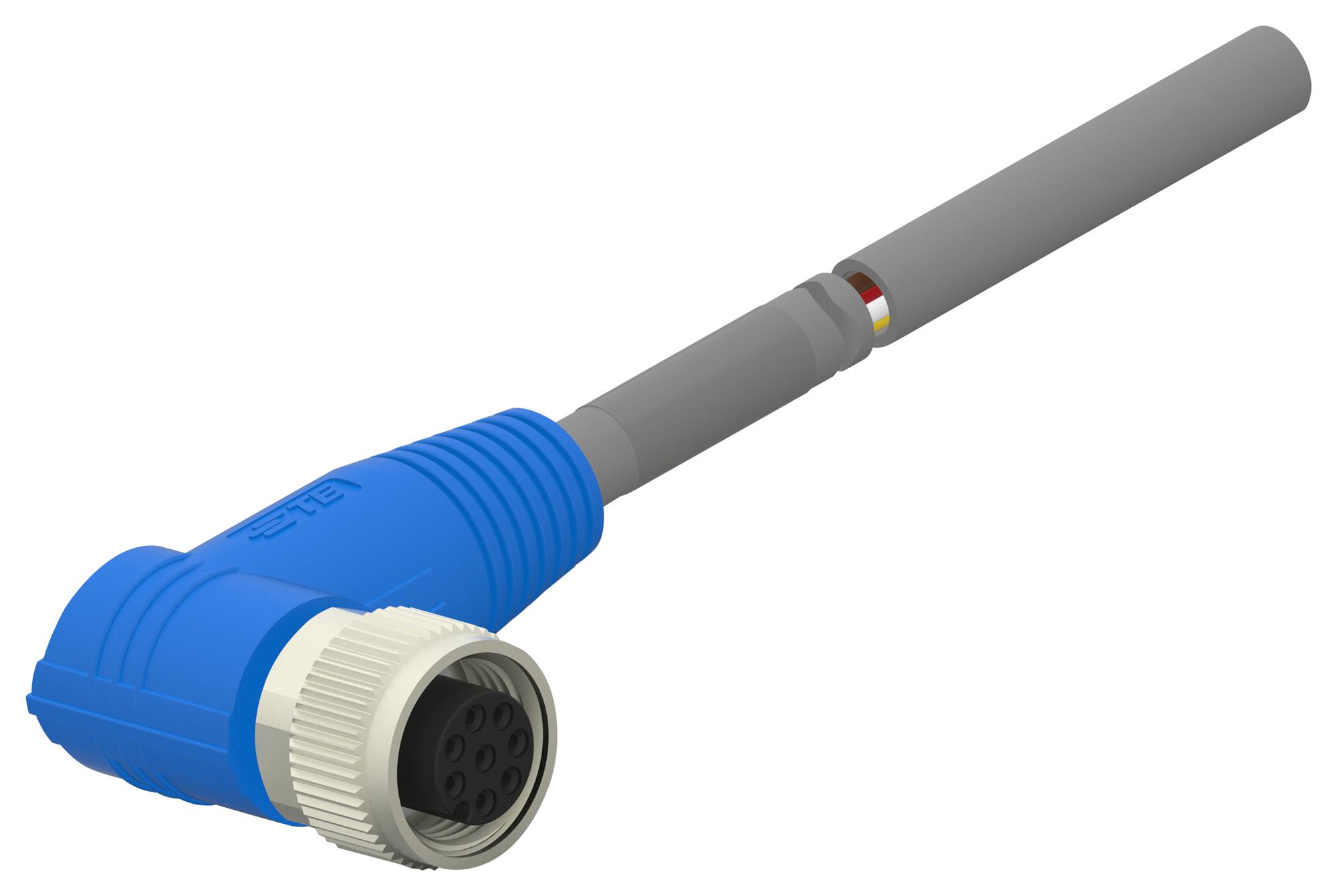

TE CONNECTIVITY T4151420008003 Sensor/Actuator Cable
This M8/M12 cable assembly is designed for sensor and actuator applications, featuring 8 positions, a receptacle connector type, and a right-angle configuration. Constructed with a copper alloy housing and gray nylon insulation, it offers reliable performance in industrial environments. The assembly has a length of 1500 mm, supports up to 30 VDC, and complies with EU RoHS, REACH, and other environmental directives. Suitable for automation systems, it provides secure mechanical attachment and shielded construction for noise immunity, making it ideal for industrial automation and control applications.
TE CONNECTIVITY T4151420008003 Sensor/Actuator Cable Specifications:
- Cable Length: 1500 mm
- Number of Positions: 8
- Connector Type: M12 Receptacle
- Application Type: Sensor/Actuator
- Housing Material: Copper Alloy
- Cable Jacket Color: Gray
- Cable Exit Angle: Right Angle
- Cable Type: Shielded
- Operating Voltage: 30 VDC
- Mounting Angle: Right Angle
- Conductor Material: Copper
- Mechanical Attachment: Screw & Hole Thread Size: Not specified
- RoHS & REACH Compliant, Halogen Content: Not specified
- Product Dimensions: Length: 1500 mm
- Product Certification: EU RoHS, REACH, China RoHS 2, UL compliant for lead and cadmium
- Environmental Approvals: EU RoHS, EU ELV, China RoHS 2
Buy the TE Series M12 Sensor/Actuator Cable: T4151420008-003
Enhance your automation setup with the TE Series sensor/actuator cable. Featuring 8 positions, shielded design, and a right-angle M12 receptacle, this cable ensures secure signal transmission and durability. Its copper alloy housing and gray nylon insulation provide robustness and stability. With a length of 1500 mm, supporting up to 30 VDC, it is suitable for industrial environments. Our cable complies with all major environmental directives including EU RoHS and REACH. Purchase online today to optimize your control systems with quality and reliability.
Buy TE Series T4151420008-003 M12 sensor/actuator cable assembly now and experience unmatched reliability and performance in industrial automation.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4151420008003?
You can click on the BUY or RFQ button to purchase T4151420008003 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4151420008003?
You can download the T4151420008003 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4151420008003?
TE CONNECTIVITY
