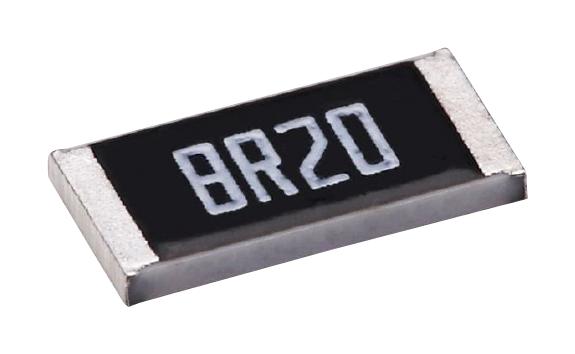

TE CONNECTIVITY RP73PF1E100KBTD High Power Precision Resistor
The RP73 resistor series offers high precision, low tolerance down to 0.05%, and low TCR, making it ideal for communication, industrial controls, instrumentation, and medical applications. These surface-mount thin film chip resistors feature increased power dissipation up to 1.0W, higher working voltages, and reliable physical dimensions. Manufactured on high-grade alumina with sputtered metal film, they provide excellent stability, insulation resistance, and temperature capabilities, suitable for demanding electronic environments requiring accurate and stable resistance performance.
TE CONNECTIVITY RP73PF1E100KBTD High Power Precision Resistor Specifications:
- Size options: 0402, 0603, 0805, 1206, 1210, 2010, 2512
- Rated Power: 0.1W (0402, 0603, 0805), 0.25W (1206, 1210, 2010, 2512), 0.33W (1206, 1210), 1.0W (2010, 2512)
- Tolerance: 0.05% for all sizes
- Resistance Range: 10R to 1MΩ depending on size and series
- Temperature Coefficient: 25, 50 ppm/°C (varies by model)
- Maximum Operating Voltage: 50V (0603), 75V (0805), 150V (1206), 200V (2010, 2512)
- Overload Voltage: 100V (0603), 150V (0805), 300V (1206), 400V (2010, 2512)
- Operating Temp Range: -55°C to +155°C
- Insulation Resistance: > 1000 MΩ
- Stability: ±0.5%
- Construction: Sputtered metal film on alumina substrate with electrode layers
- Physical Dimensions: Varies by size, e.g., 0402 (1.0x0.5mm), 0603 (1.55x0.80mm), 0805 (2.0x1.25mm), 1206 (3.0x1.55mm), 1210, 2010, 2512
- Environmental: MIL-STD-202 tested for thermal shock, humidity, and soldering resistance.
- Marking: IEC 4-digit code for resistance value based on size and series.
Buy the TE Series RP73 High Power Precision Resistor: RP73PF1E100KBTD
Enhance your electronic designs with the TE Series RP73 high power precision resistor, offering exceptional accuracy, low TCR, and reliable performance. Perfect for communications, industrial controls, instrumentation, and medical devices, these resistors provide up to 1.0W power dissipation, high voltage capacity, and excellent thermal stability. Easy to mount and highly durable, they ensure long-term reliability in demanding environments. Order online today and benefit from fast delivery, competitive pricing, and expert support to meet your project needs.
Buy TE Series RP73 high power precision resistor now and experience unmatched stability, accuracy, and durability for your demanding electronic projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RP73PF1E100KBTD?
You can click on the BUY or RFQ button to purchase RP73PF1E100KBTD from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RP73PF1E100KBTD?
You can download the RP73PF1E100KBTD datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RP73PF1E100KBTD?
TE CONNECTIVITY
